60324S-100F
GEN3SYS® Replaceable Drill Body: 0.9447" - 1.0234", 3xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

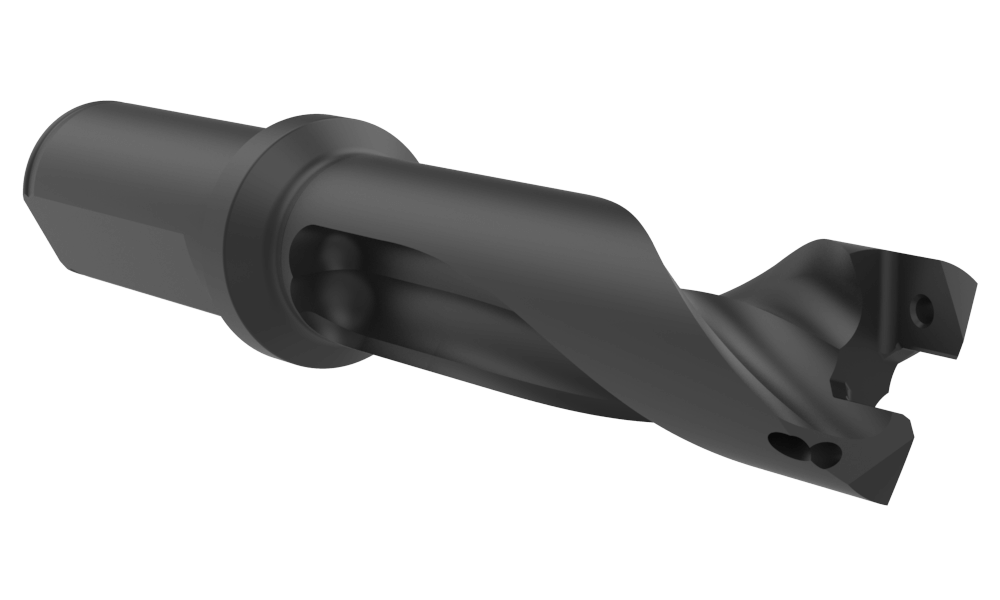

Angle

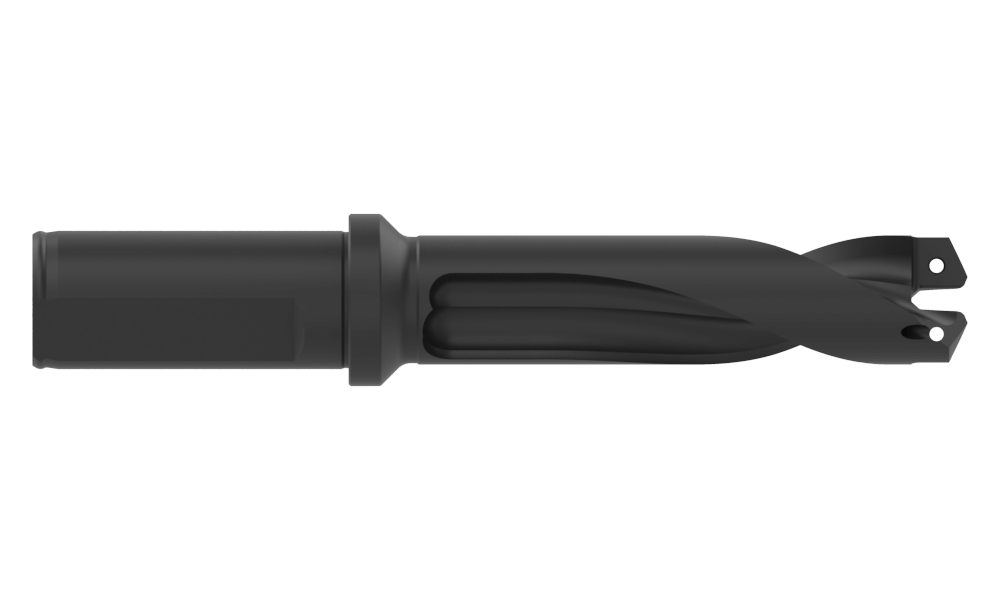

Front

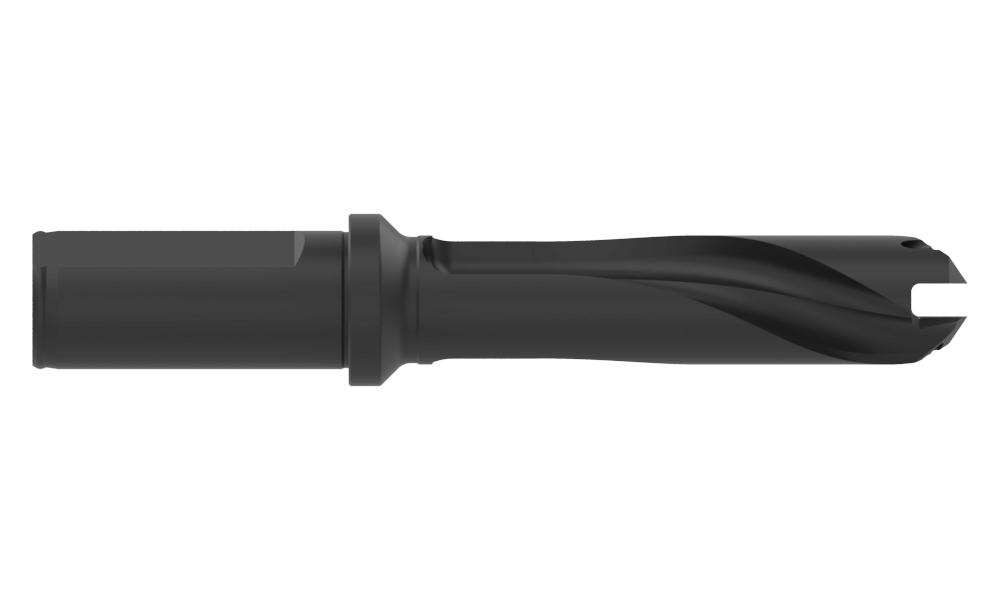

Top
Product Specifications
Series 24
Minimum Diameter (inch) 0.9447
Maximum Diameter (inch) 1.0234
Length Type 3xD
Flute Type Straight
Overall Length (inch) 6.857
Tool Reference Length (inch) 4.577
Body Length (inch) 4.482
Drill Depth (inch) 3.156
Shank Type Flanged
Shank Diameter (inch) 1
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.07
Weight in kg (each) 0.49
Category Stocked
