5000-ML-005
ALVAN® Replaceable Head Mandrel: 0.8508" - 1.0475" (21.61 mm - 26.609 mm), Through Coolant, Cylindrical Shank
ALVAN® Replaceable Head Mandrel

Add to cart image Add to list image







See Additional Technical Information

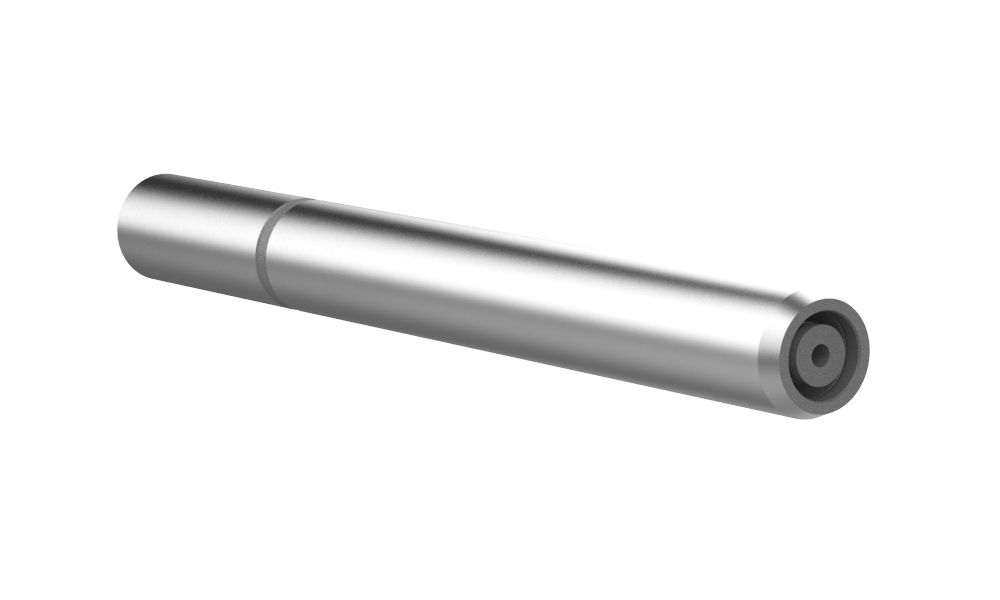

Default Image
Angle

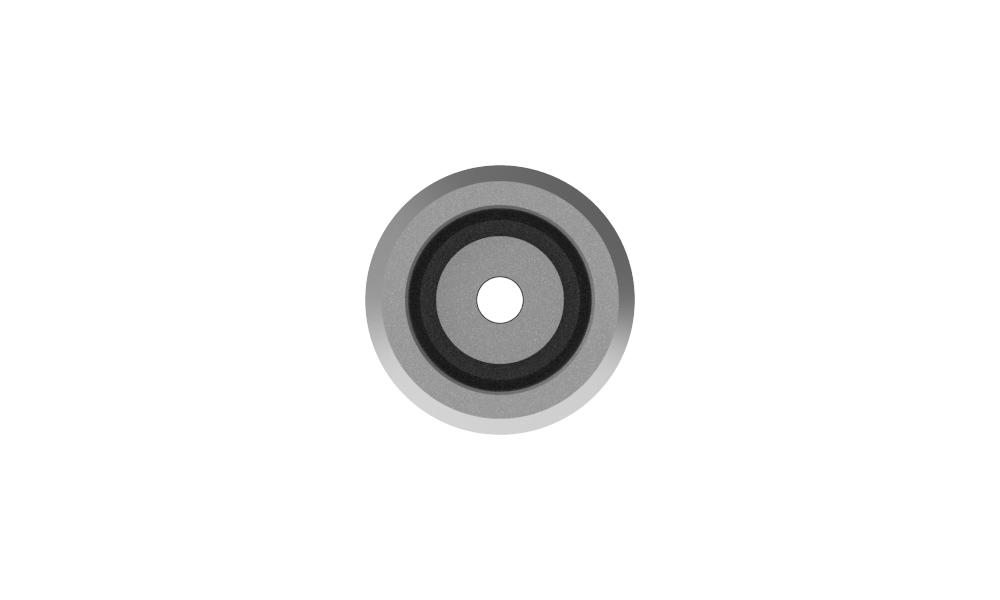

Front

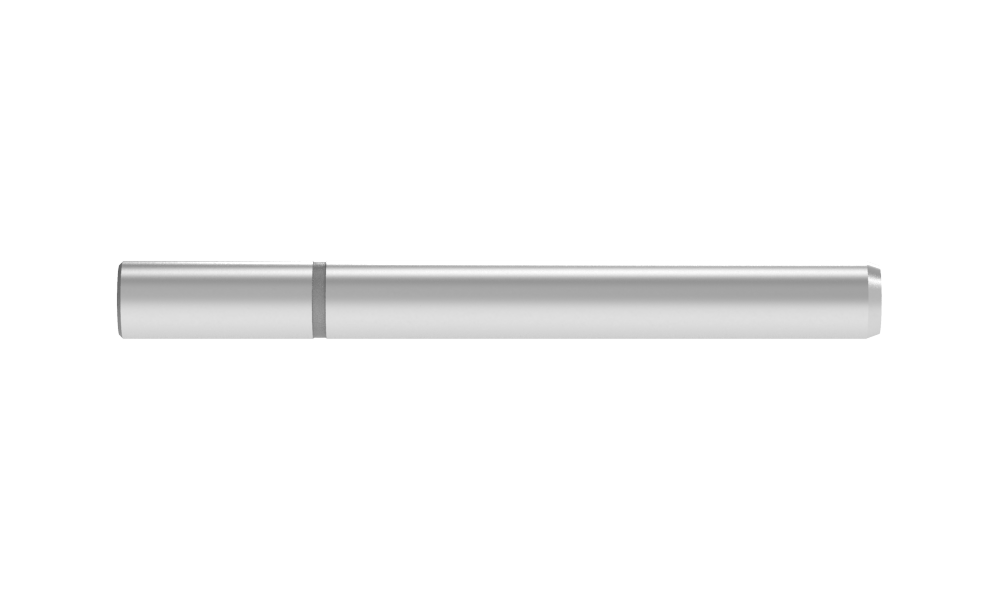

Top
Product Specifications
Type of Product Modular Reamer Body
Series 5000
Minimum Diameter (inch) 0.8508
Minimum Diameter (mm) 21.61
Maximum Diameter (inch) 1.0475
Maximum Diameter (mm) 26.609
Assembled Reference Length (mm) 195
Length of Cut (mm) 145
Length Type Long
Shank Diameter (mm) 20
Shank Type Cylindrical
Coolant (Yes/No) Through Coolant
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.408
Weight in kg (each) 0.19
Category Stocked
