5000-ML-002
ALVAN® Replaceable Head Mandrel: 0.4571" - 0.5751" (11.61 mm - 14.609 mm), Through Coolant, Cylindrical Shank
ALVAN® Replaceable Head Mandrel

Add to cart image Add to list image







See Additional Technical Information

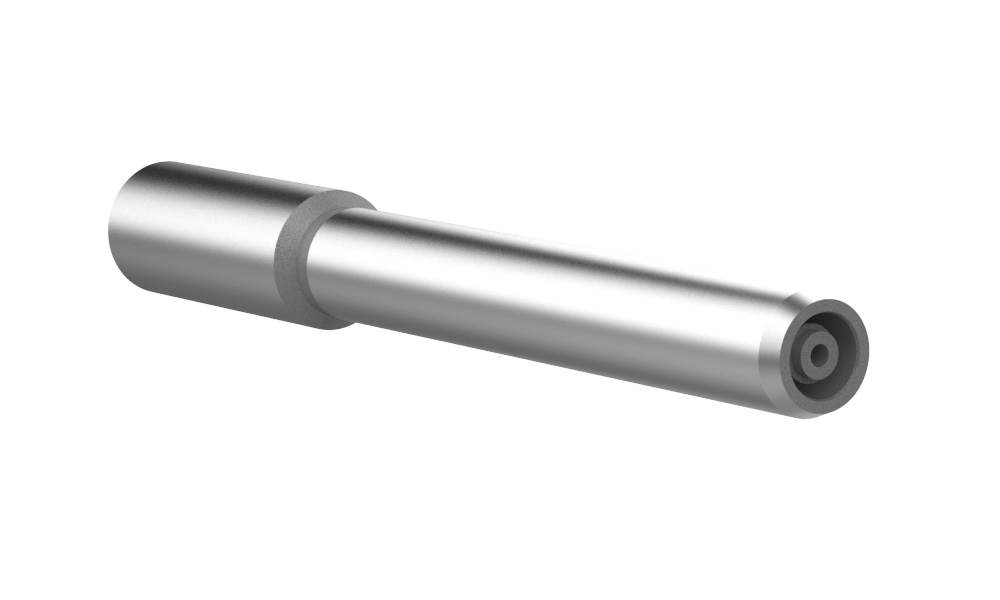

Default Image
Angle

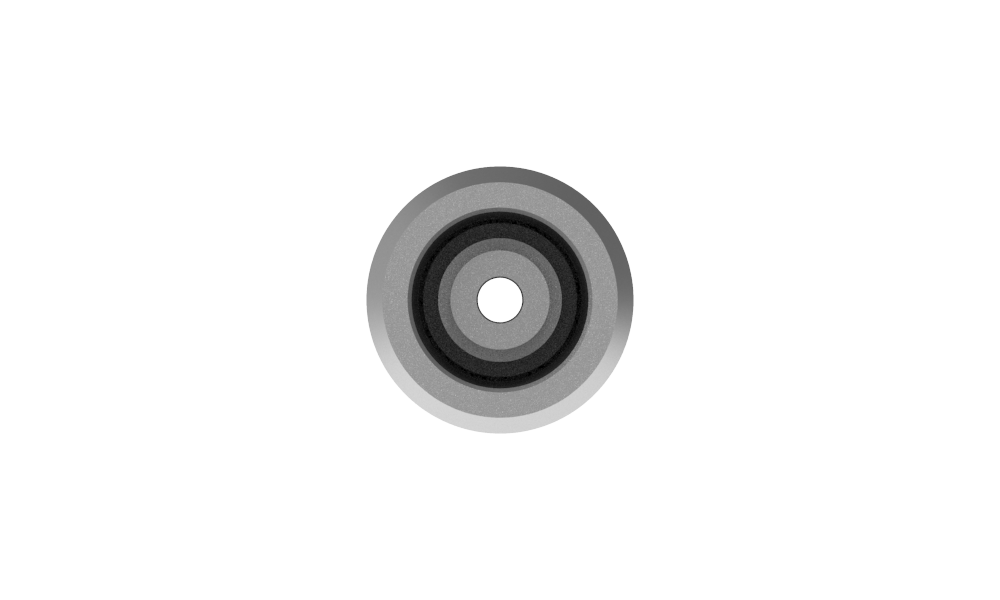

Front

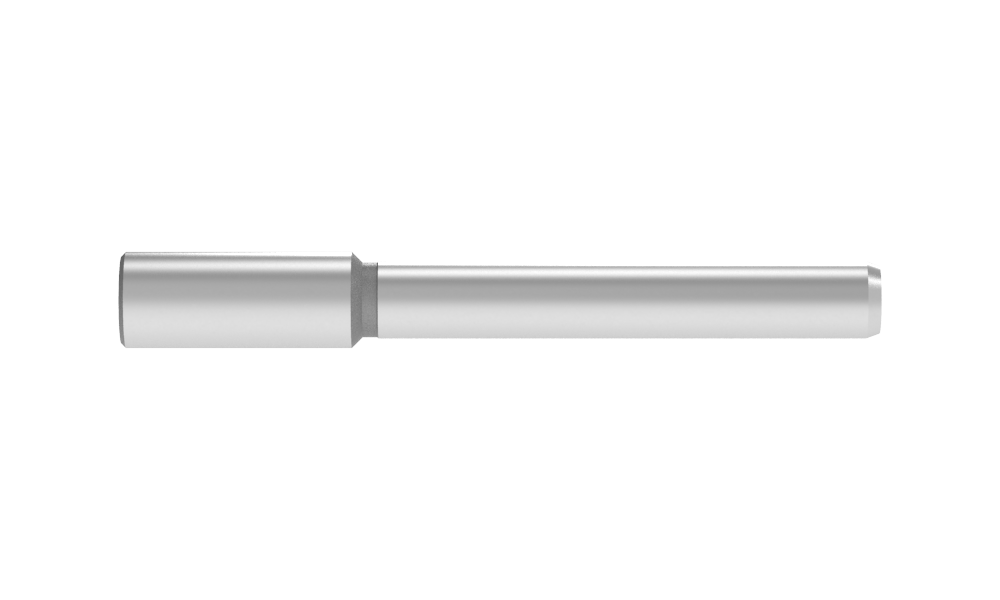

Top
Product Specifications
Type of Product Modular Reamer Body
Series 5000
Minimum Diameter (inch) 0.4571
Minimum Diameter (mm) 11.61
Maximum Diameter (inch) 0.5751
Maximum Diameter (mm) 14.609
Assembled Reference Length (mm) 140
Length of Cut (mm) 95
Length Type Long
Shank Diameter (mm) 12
Shank Type Cylindrical
Coolant (Yes/No) Through Coolant
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.186
Weight in kg (each) 0.08
Category Stocked
