4T-040203-K
4TEX® Indexable Drill Insert: 0.532" - 0.610", General Purpose Geometry, AM480
4TEX® Insert

Add to cart image Add to list image







See Additional Technical Information

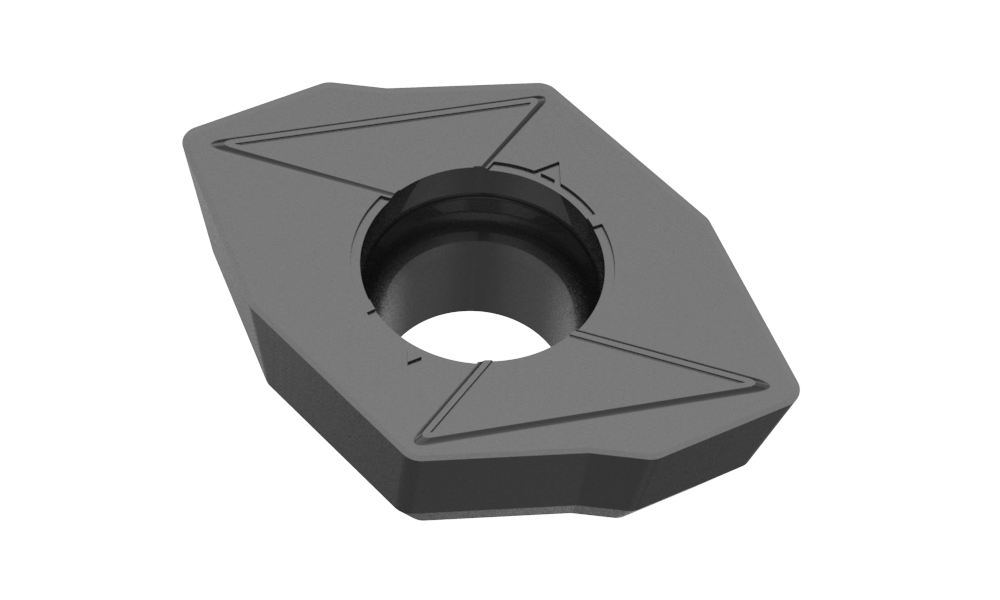

Default Image
Angle

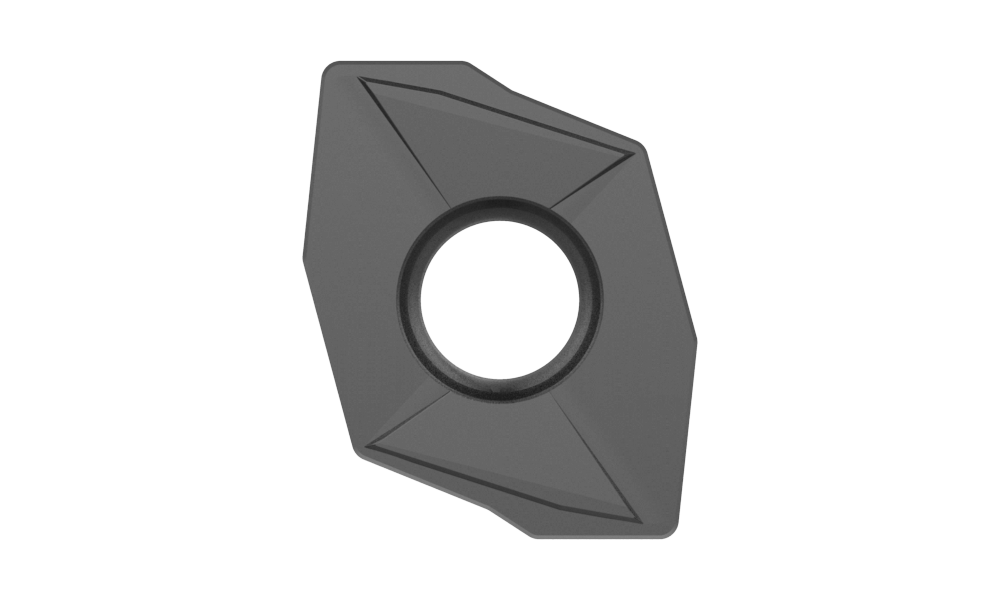

Front
Product Specifications
Type of Product Indexable Drill Insert
Series 04
Insert Shape Proprietary
Cutting direction Right Hand
Style Peripheral/Center
Geometry General Purpose
Grade K10
Coating AM480
Application Type Cast Iron
Material Carbide
Insert thickness inch 0.102
Insert thickness mm 2.6
Screw Hole Diameter inch 0.094
Screw Hole Diameter mm 2.4
Corner radius inch 0.012
Corner radius mm 0.3
Back Clearance 13°
Minimum diameter inch 0.532
Maximum diameter inch 0.610
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.001
Weight in kg (each) 0
Category Stocked
