465005
Wohlhaupter® 464(465) Boring Head: 1.969" - 2.579" (50 mm - 65.5 mm), MVS 40-22, 0.0001" Digital Adjustment, Steel
Wohlhaupter® Boring Head

Add to cart image Add to list image







Default Image

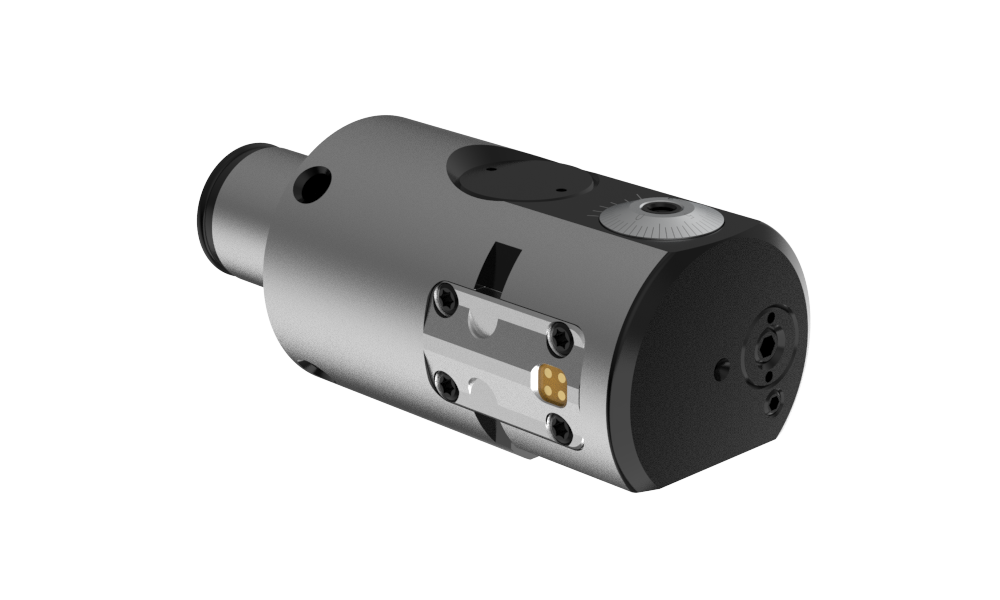

Angle

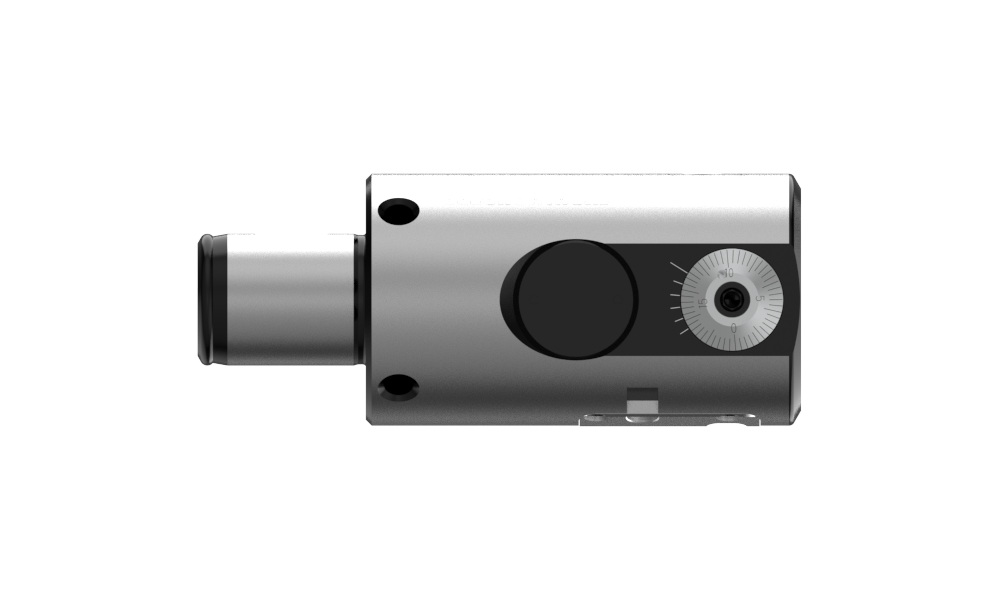

Side

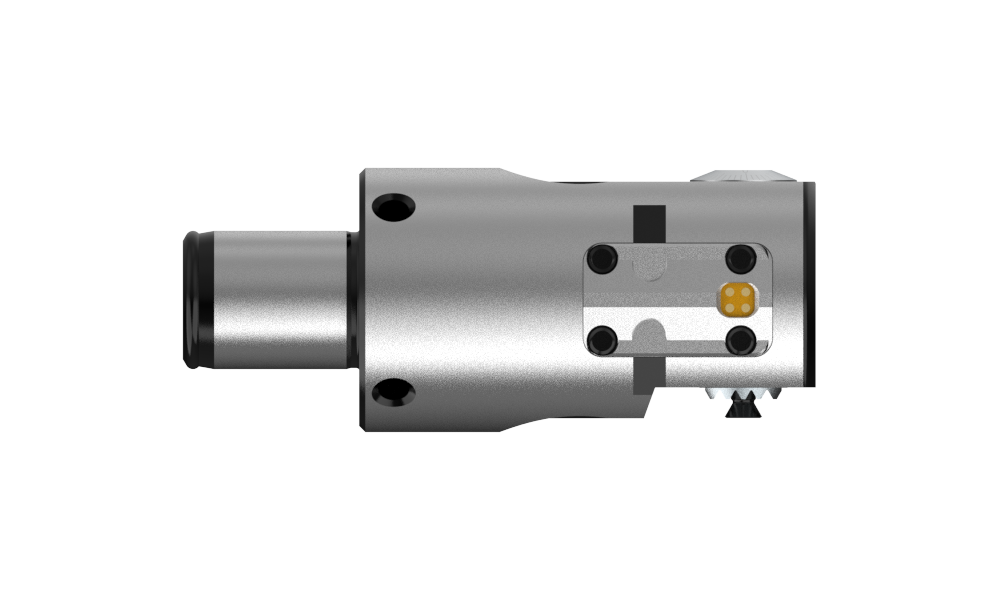

Side

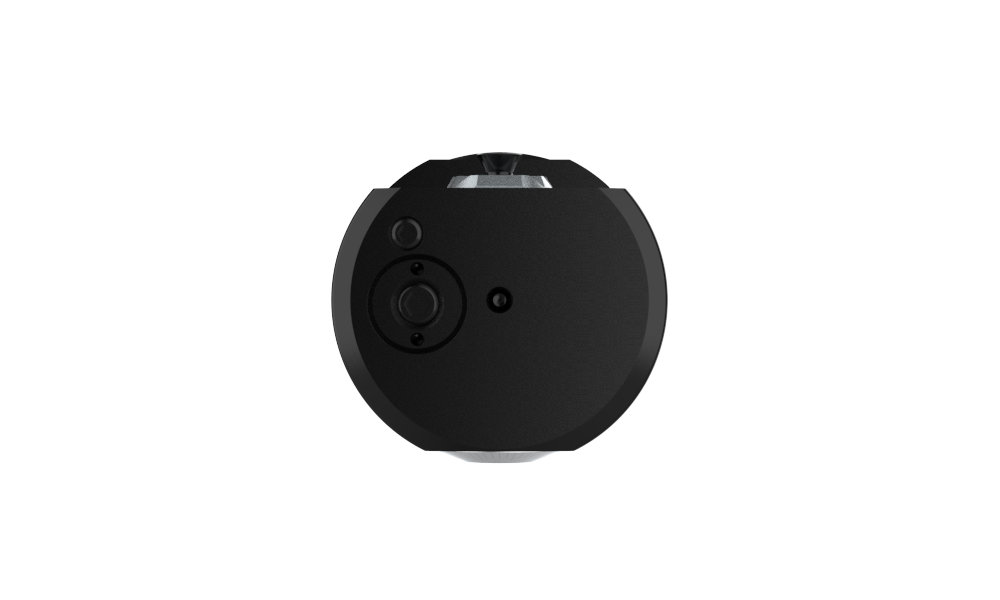

Top
Product Specifications
Type of Product Boring Head
Series 464(465)
Minimum Diameter (mm) 50
Minimum Diameter (inch) 1.969
Maximum Diameter (mm) 65.5
Maximum Diameter (inch) 2.579
Working Length (mm) 75.00
Working Length (inch) 2.953
Body Length (mm) 72
Body Length (inch) 2.854
Body Diameter (mm) 42
Body Diameter (inch) 1.654
Male Minor 22
Male Major 40
Adjustment dial (inch) 0.0001
Adjustment Type Digital
Digital Component 3ETech (external)
Adjustment Unit Imperial
Offset (mm) 15.5
Offset (inch) 0.61
Material Steel
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.543
Weight in kg (each) 0.7
Category Stocked
