397766WHC19

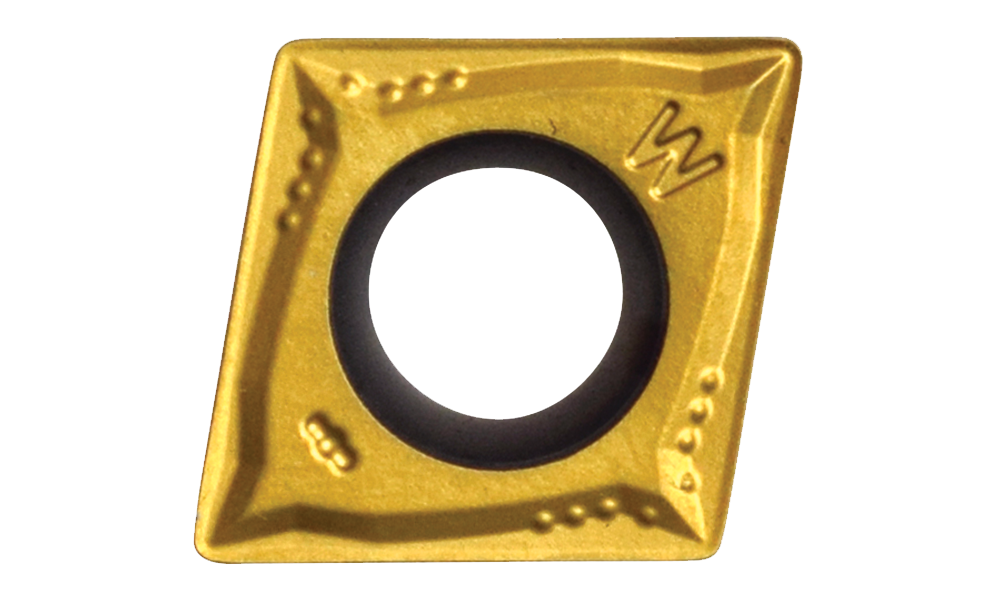

Wohlhaupter® Turning Boring Insert: Form 101, WHC19 Coated Carbide
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F101 04MN174W WHC19
Insert Form 101
Corner Radius (inch) 0.016
Corner Radius (mm) 0.40
Tolerance Group M
Machining Direction CW or CCW
Geometry 174W
Grade WHC19
Material Carbide
Coating Coated
Wiper Geometry Yes
Number of Useable Edges 2
Insert ANSI Designation CCMT21.51
Insert ISO Designation CCMT060204
Machining Conditions Discontinuous Cut
Roughing Primary P | M | S
Roughing Secondary K
Finishing Primary P | M | S
Finishing Secondary K
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.051
Weight in kg (each) 0.02
Category Stocked
