397355WHC136

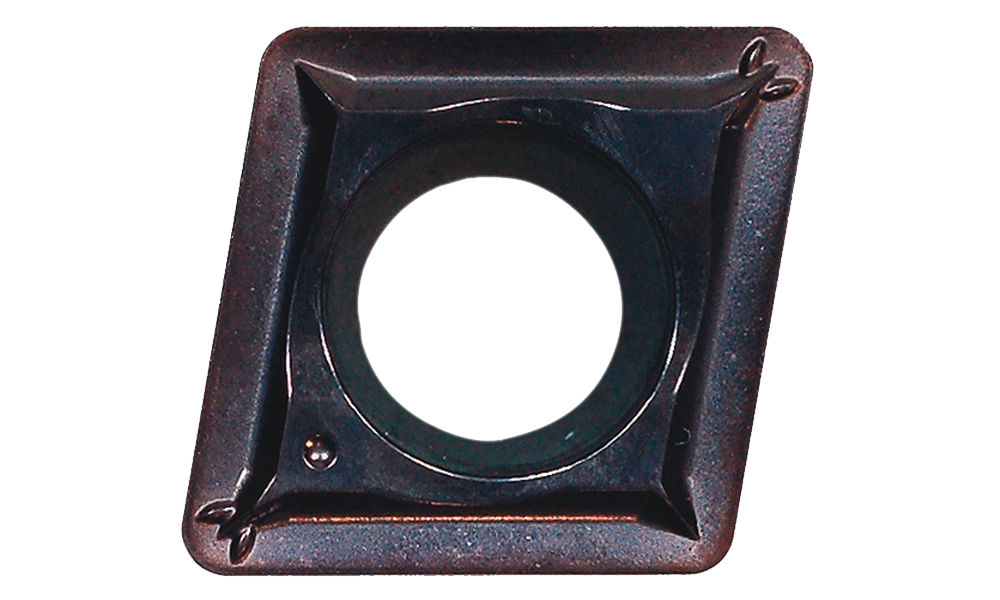

Wohlhaupter® Turning Boring Insert: Form 103, WHC136 Coated Carbide
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F103 08MN109 WHC136
Insert Form 103
Corner Radius (inch) 0.031
Corner Radius (mm) 0.80
Tolerance Group M
Machining Direction CW or CCW
Geometry 109
Grade WHC136
Material Carbide
Coating Coated
Wiper Geometry No
Number of Useable Edges 2
Insert ANSI Designation CCMT32.51
Insert ISO Designation CCMT09T304
Machining Conditions Slight Interruption
Roughing Primary P | S
Roughing Secondary M | K
Finishing Primary P | M | S
Finishing Secondary K
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
