397260WBN150

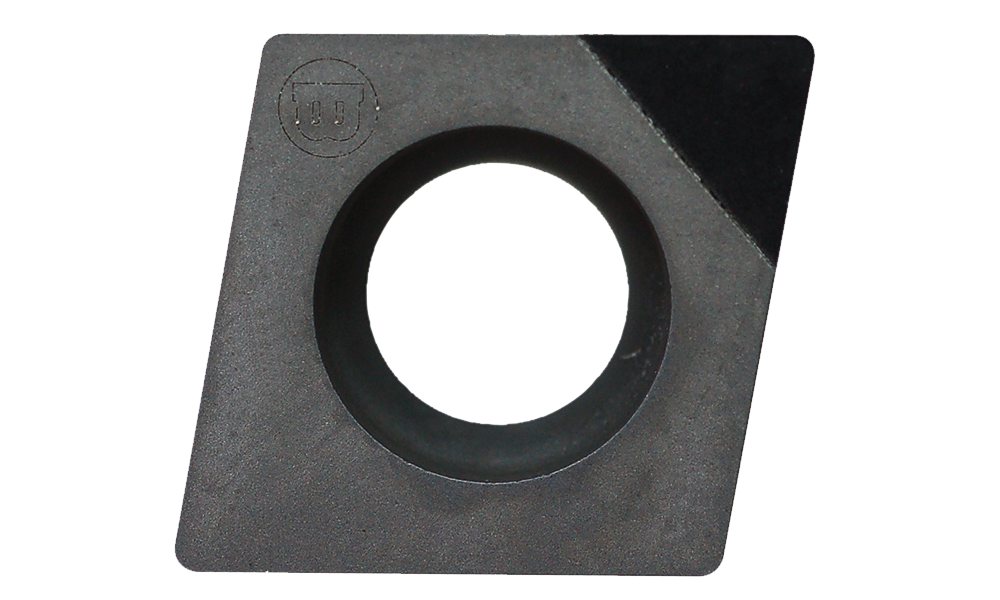

Wohlhaupter® Turning Boring Insert: Form 104, WBN150 Uncoated CBN
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F104 04GN747 WBN150
Insert Form 104
Corner Radius (inch) 0.016
Corner Radius (mm) 0.40
Tolerance Group G
Machining Direction CW or CCW
Geometry 747
Grade WBN150
Material CBN
Coating Uncoated
Wiper Geometry No
Number of Useable Edges 1
Insert ANSI Designation CCGW431
Insert ISO Designation CCGW120404
Machining Conditions Slight Interruption
Roughing Secondary K | H
Finishing Primary H
Finishing Secondary K
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
