397257PKDD30

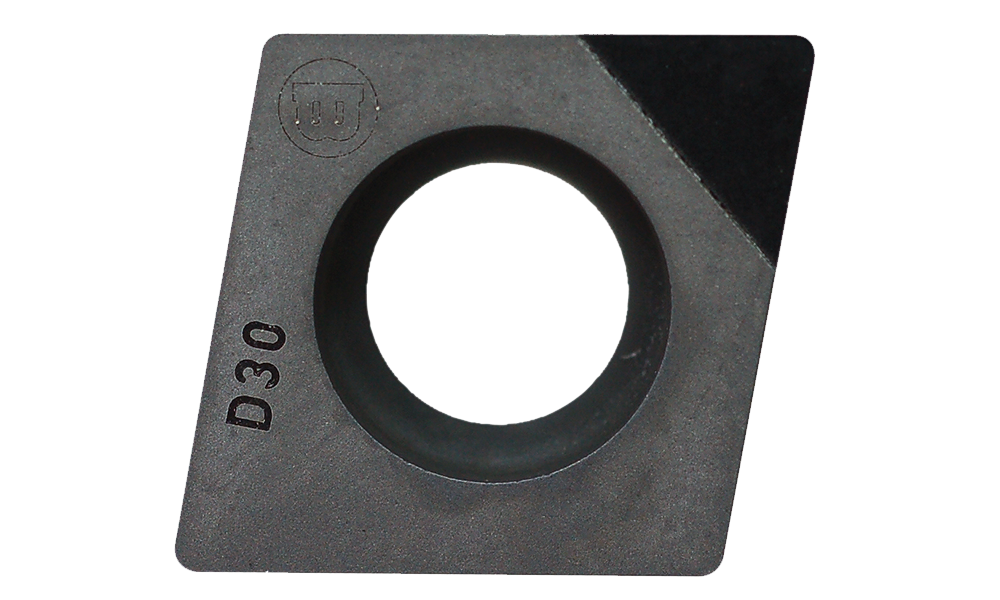

Wohlhaupter® Turning Boring Insert: Form 104, PKDD30 Uncoated PCD
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F104 04GN730 PKDD30
Insert Form 104
Corner Radius (inch) 0.016
Corner Radius (mm) 0.40
Tolerance Group G
Machining Direction CW or CCW
Geometry 730
Grade PKDD30
Material PCD
Coating Uncoated
Wiper Geometry No
Number of Useable Edges 1
Insert ANSI Designation CCGW432
Insert ISO Designation CCGW120402
Machining Conditions Slight Interruption
Roughing Primary N
Finishing Primary N
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0
Weight in kg (each) 0
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
