397133PKDD30

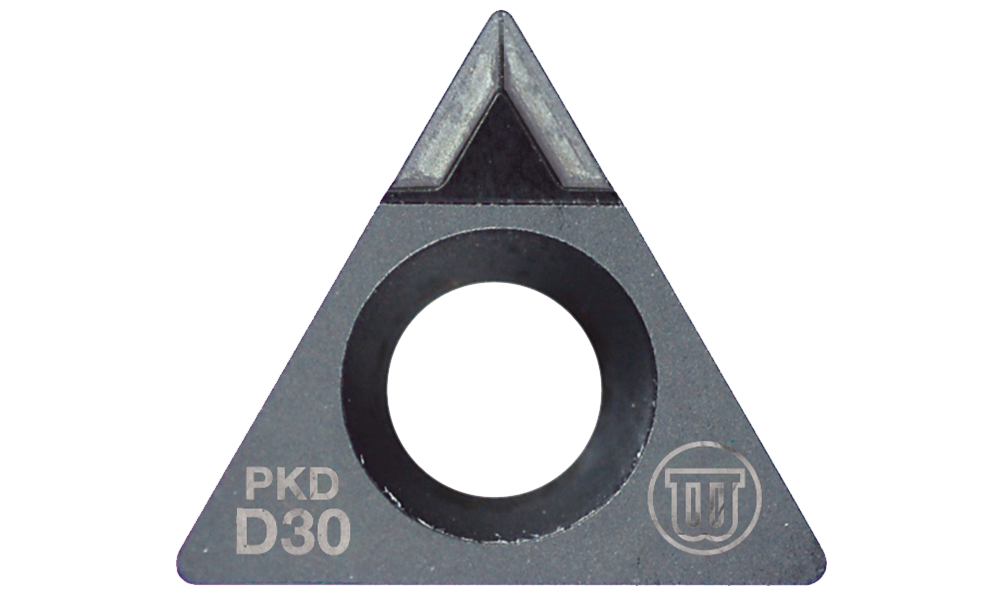

Wohlhaupter® Turning Boring Insert: Form 20, PKDD30 Uncoated PCD
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F020 02GN735 PKDD30
Insert Form 20
Corner Radius (inch) 0.008
Corner Radius (mm) 0.20
Tolerance Group G
Machining Direction CW or CCW
Geometry 735
Grade PKDD30
Material PCD
Coating Uncoated
Wiper Geometry No
Number of Useable Edges 1
Insert ANSI Designation TOGX080202
Insert ISO Designation TOGX080202
Machining Conditions Slight Interruption
Finishing Primary N
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.022
Weight in kg (each) 0.01
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
