297996WHC111

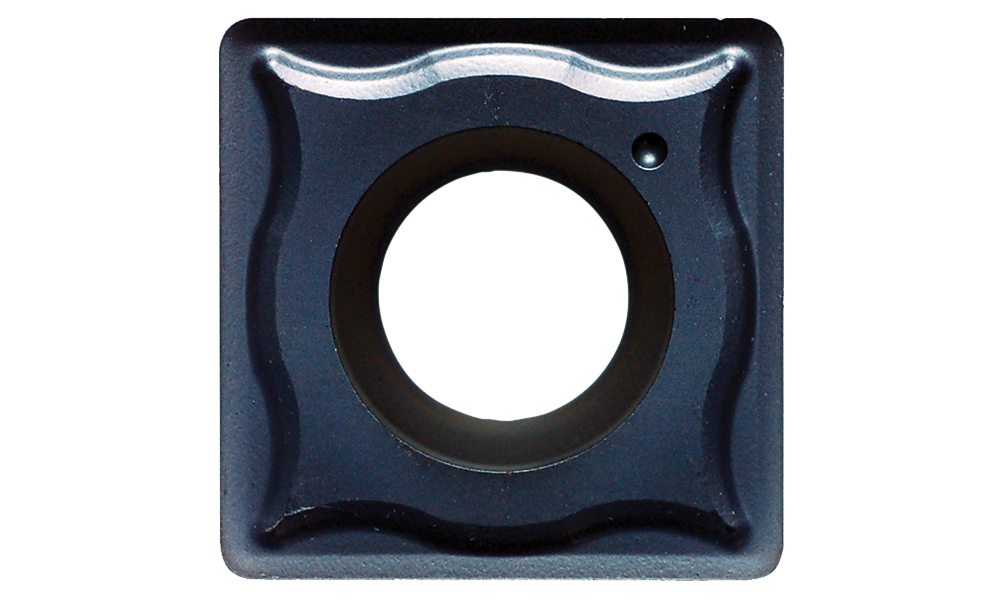

Wohlhaupter® Turning Boring Insert: Form 112, WHC111 Coated Carbide
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F112 08GN145 WHC111
Insert Form 112
Corner Radius (inch) 0.031
Corner Radius (mm) 0.80
Tolerance Group G
Machining Direction CW or CCW
Geometry 145
Grade WHC111
Material Carbide
Coating Coated
Wiper Geometry No
Number of Useable Edges 4
Insert ANSI Designation SCGT32.52
Insert ISO Designation SCGT09T308
Machining Conditions Continuous Cut
Roughing Secondary P | M | K | S | H
Finishing Primary P | M | K | S
Finishing Secondary H
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.9
Weight in kg (each) 0.41
Category Stocked
