297419WBN450

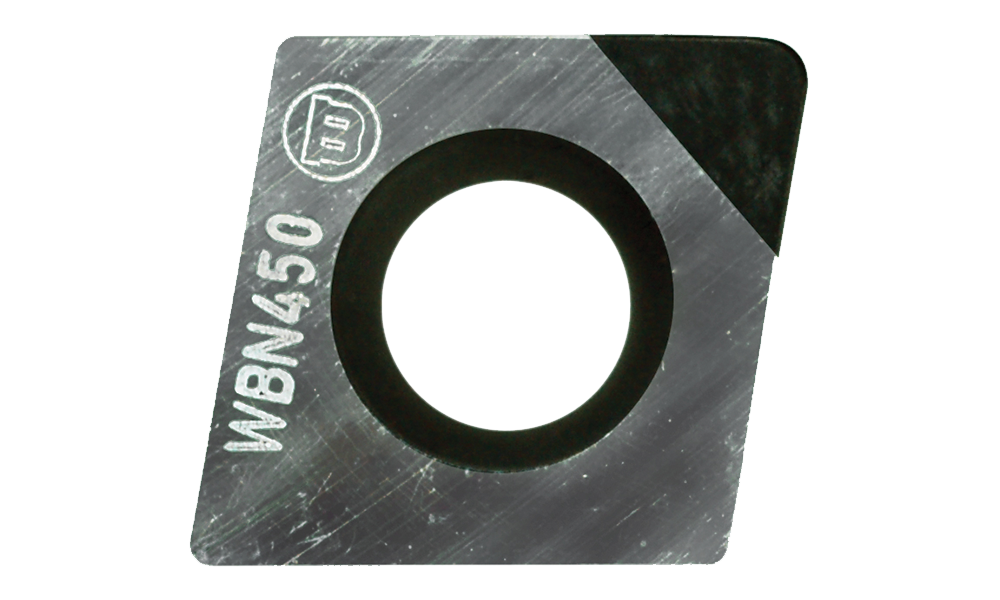

Wohlhaupter® Turning Boring Insert: Form 103, WBN450 Uncoated CBN
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F103 04GN748 WBN450
Insert Form 103
Corner Radius (inch) 0.016
Corner Radius (mm) 0.40
Tolerance Group G
Machining Direction CW or CCW
Geometry 748
Grade WBN450
Material CBN
Coating Uncoated
Wiper Geometry No
Number of Useable Edges 1
Insert ANSI Designation CCGW32.51
Insert ISO Designation CCGW09T304
Machining Conditions Slight Interruption
Roughing Primary K
Finishing Primary K
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.066
Weight in kg (each) 0.03
Category Stocked
