29070S-300L

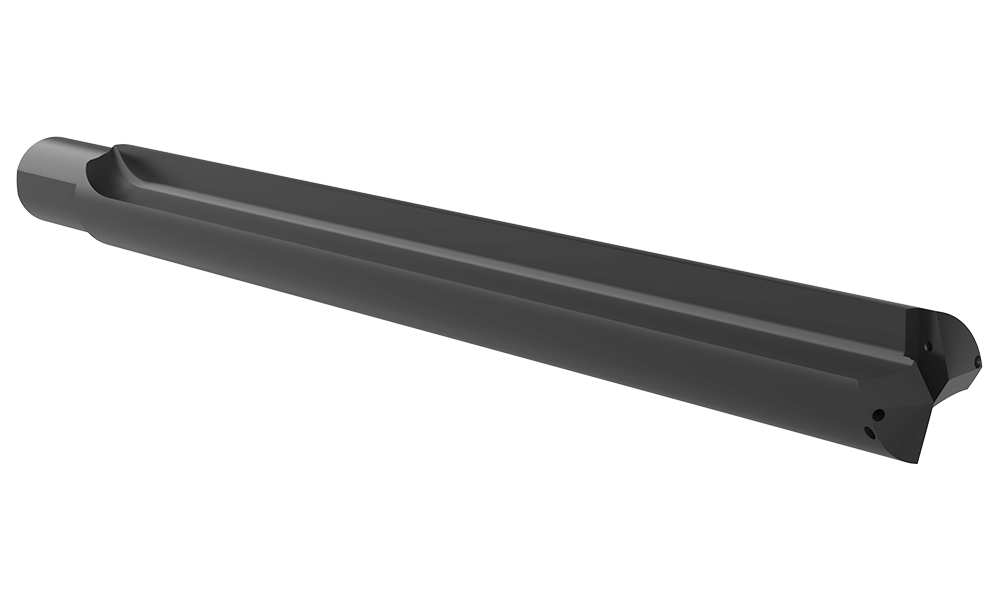

T-A® Replaceable Drill Body: 3.5080" - 4.5070", 3XL, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 7
Minimum Diameter (inch) 3.5080
Maximum Diameter (inch) 4.5070
Length Type 3XL
Flute Type Straight
Overall Length (inch) 44.125
Tool Reference Length (inch) 39.375
Body Length (inch) 39.125
Drill Depth (inch) 36.467
Shank Type Lathe
Shank Diameter (inch) 3
Shank Length (inch) 5.000
Pipe Tap Rear (inch) 1/2 NPT
Pipe Tap Side (inch) 1/2 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7619-IP25-1 (Qty0)
Replacement T-A® Screw
5-8 KIT (1) TORX PLUS,CL 6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-25 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-25
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 81.1
Weight in kg (each) 36.82
Category Stocked
