25010S-100L
T-A® Replaceable Drill Body: 0.6900" - 0.9609", Extended, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

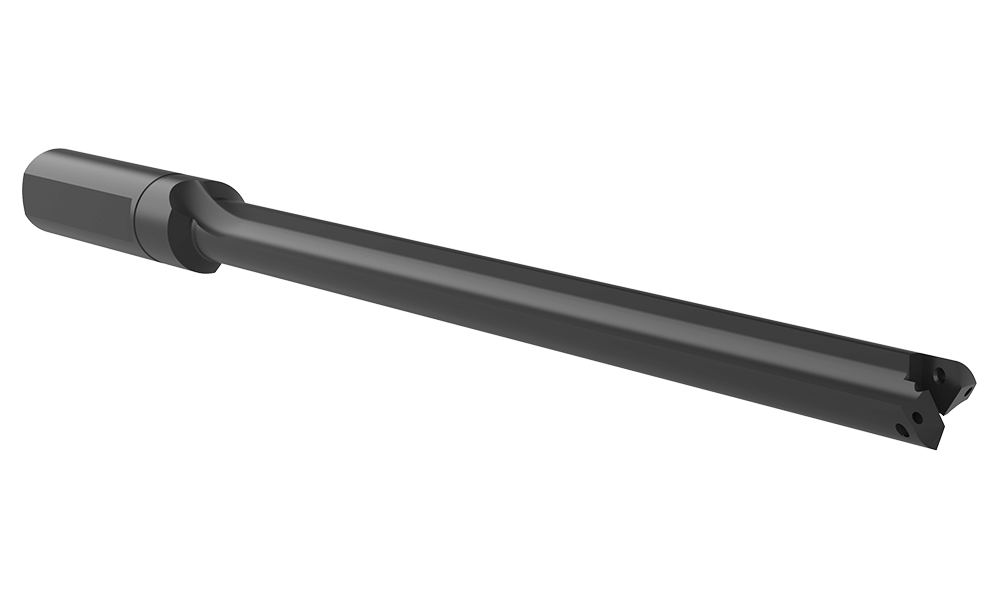

Default Image
Angle

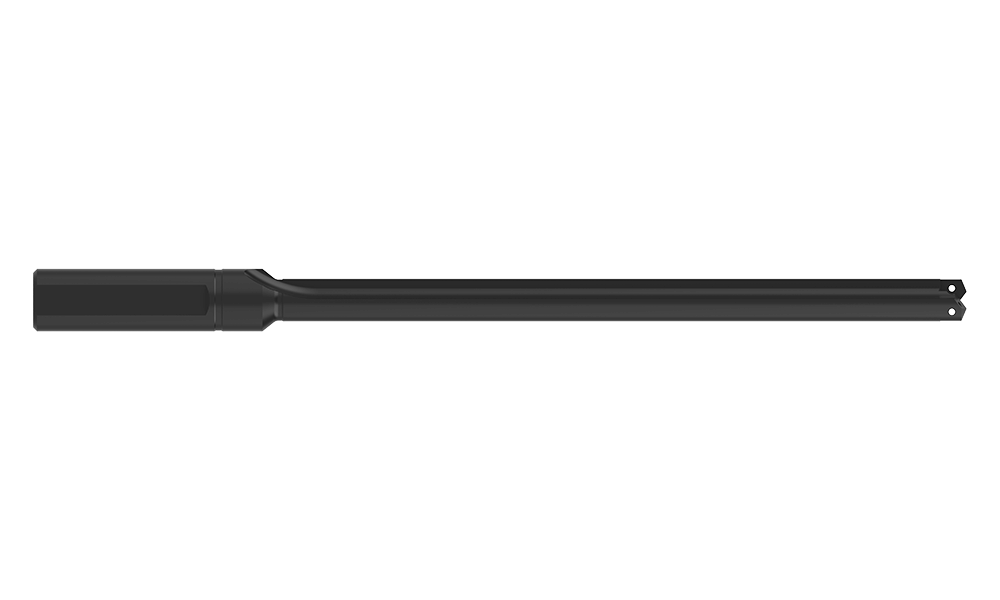

Front

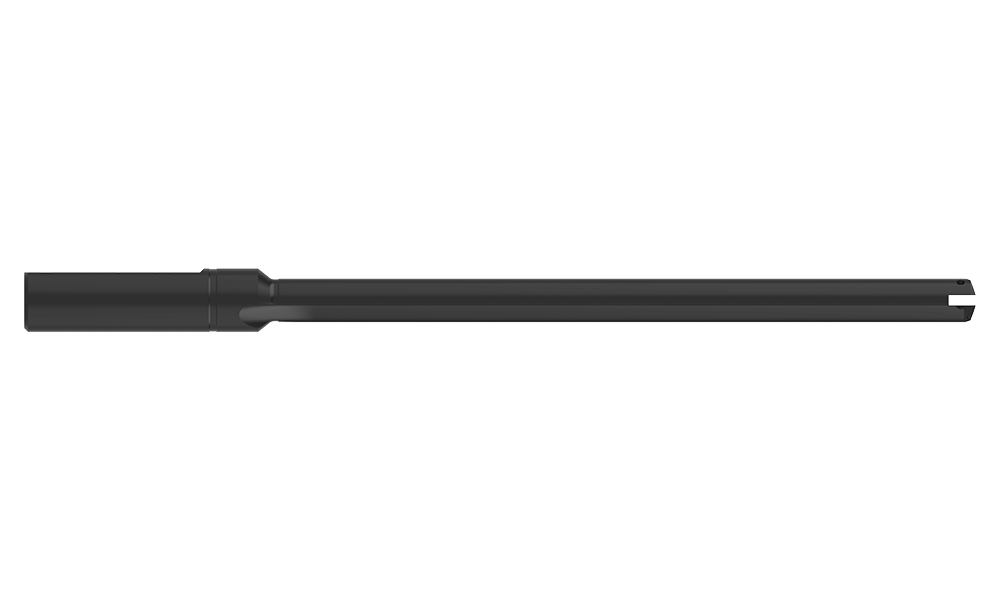

Side
Product Specifications
Series 1
Minimum Diameter (inch) 0.6900
Maximum Diameter (inch) 0.9609
Length Type Extended
Flute Type Straight
Overall Length (inch) 14.875
Tool Reference Length (inch) 12.015
Body Length (inch) 11.875
Drill Depth (inch) 10.647
Shank Type Lathe
Shank Diameter (inch) 1
Shank Length (inch) 3.000
Pipe Tap Rear (inch) 1/8 NPT
Pipe Tap Side (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.56
Weight in kg (each) 0.71
Category Stocked
