25000S-075L

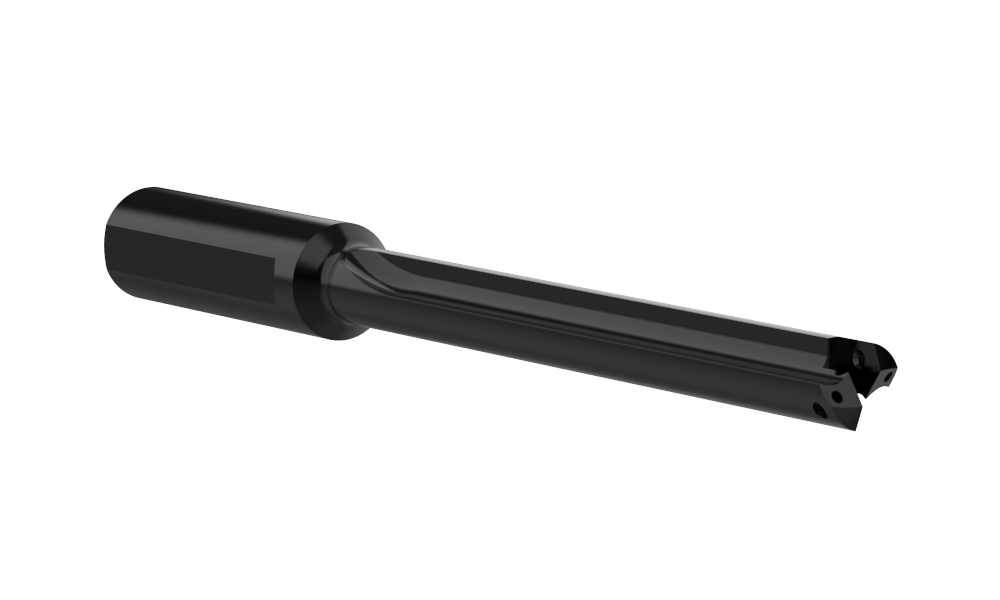

T-A® Replaceable Drill Body: 0.5110" - 0.6959", Extended, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

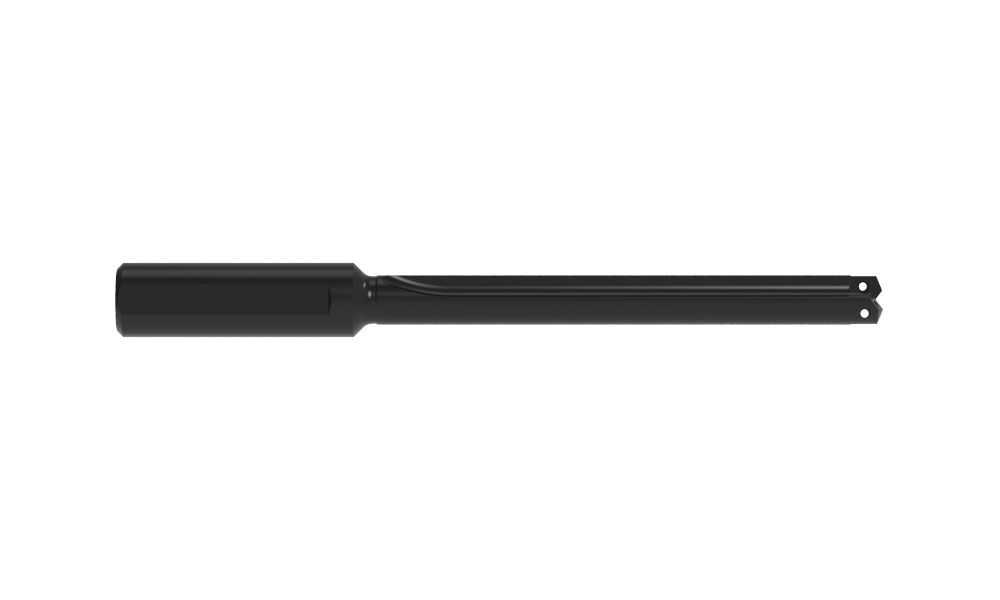

Front
Side
Product Specifications
Series 0
Minimum Diameter (inch) 0.5110
Maximum Diameter (inch) 0.6959
Length Type Extended
Flute Type Straight
Overall Length (inch) 7.688
Tool Reference Length (inch) 5.420
Body Length (inch) 5.313
Drill Depth (inch) 4.343
Shank Type Lathe
Shank Diameter (inch) 3/4
Shank Length (inch) 2.375
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items

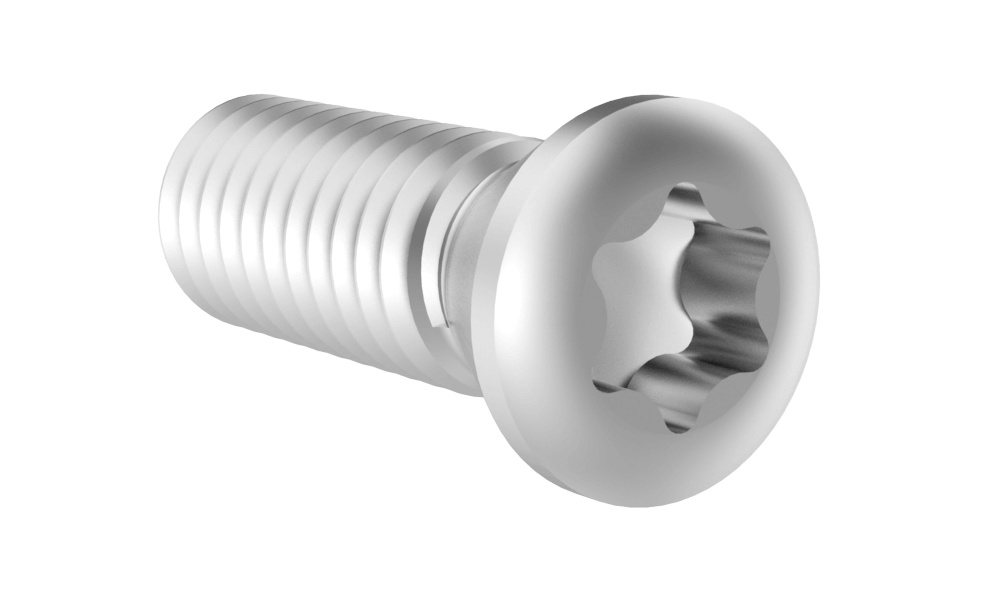

Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H

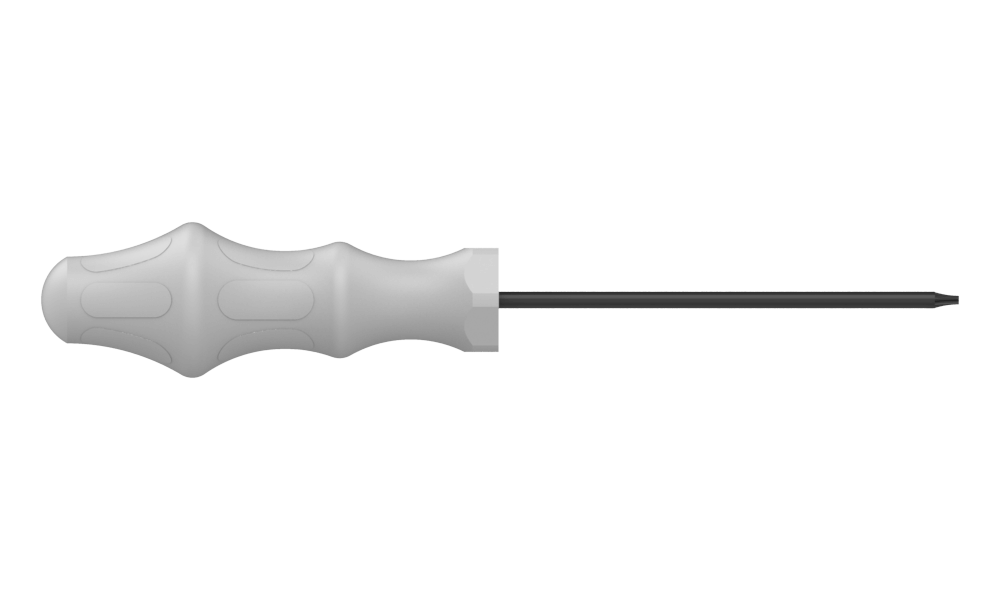

Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.5
Weight in kg (each) 0.23
Category Stocked
