Item Detail

250008

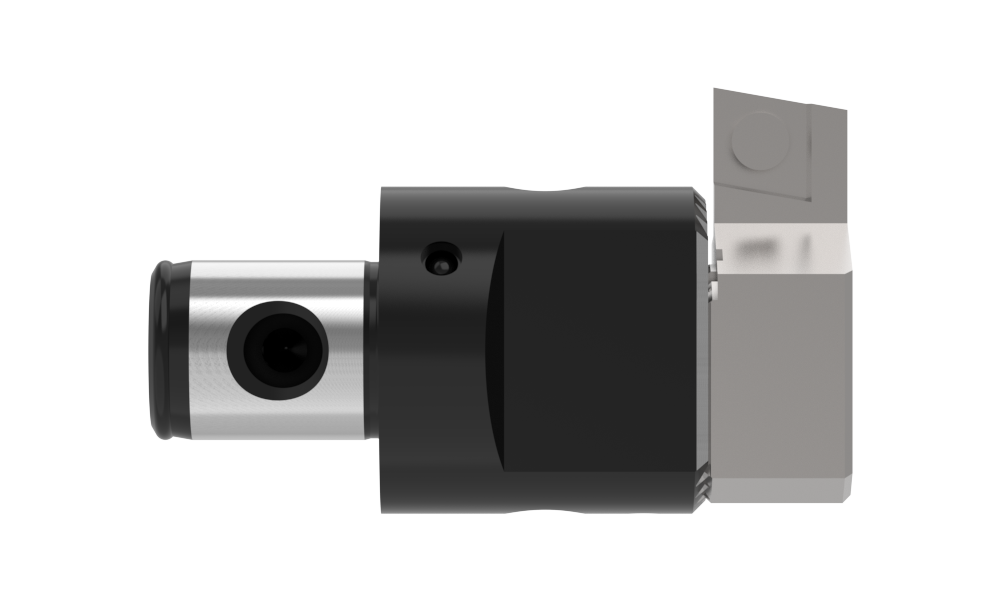

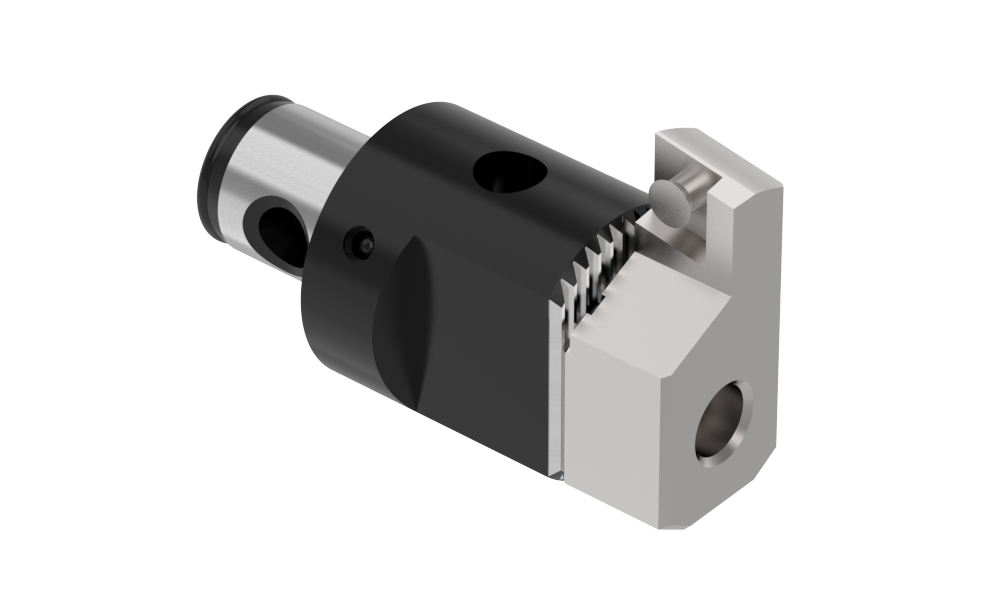

Wohlhaupter® Back Boring Assembly: 2.598" - 3.346" (66.00 mm - 85.00 mm), MVS 40-22

Wohlhaupter® Assembly

Qty

Product Specifications

Type of Product	Back Boring Assembly
Minimum Diameter (inch)	2.598
Minimum Diameter (mm)	66.00
Maximum Diameter (inch)	3.346
Maximum Diameter (mm)	85.00
Male Major	40
Male Minor	22

Items Included

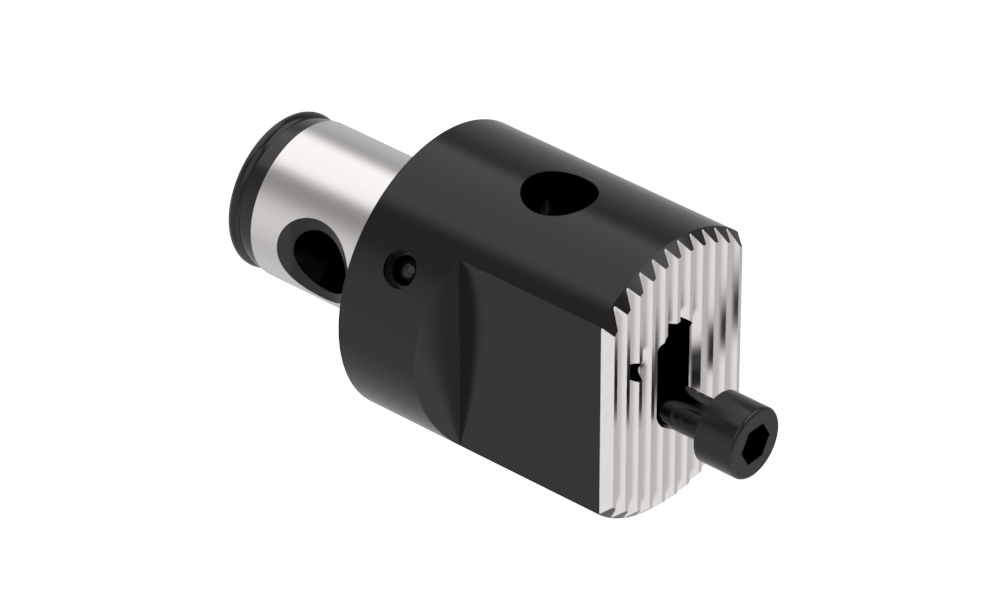

$Wohlhaupter\Serrated Tool Bodies\148014\\148014_Angle.png$	148014 (Qty1) Serrated Tool Body SERBODY, 53-85MM, MVS40-22

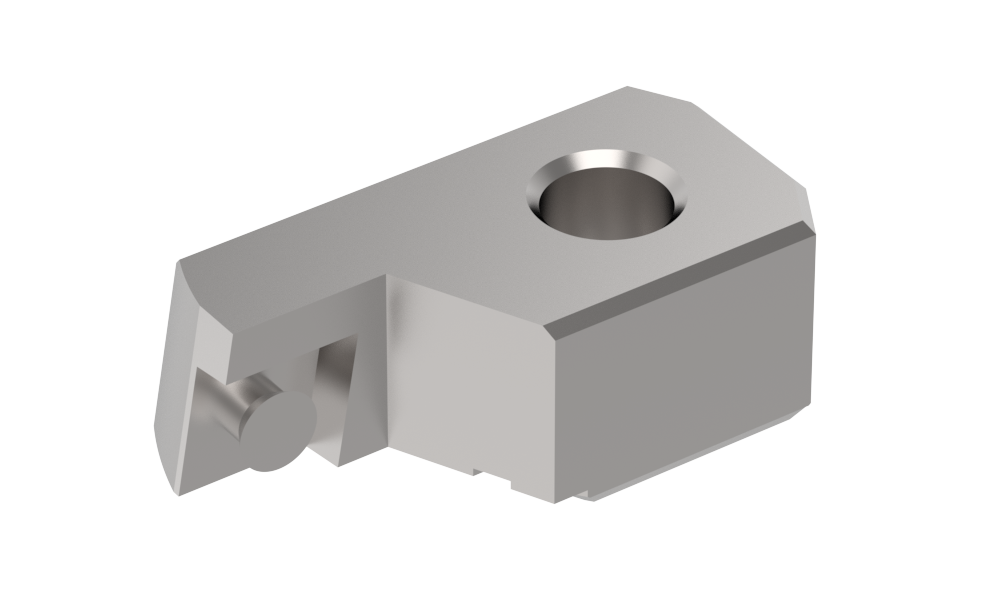

$Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Rough Machining\Insert Holders\251005\251005_Angle.png$	251005 (Qty1) Insert Holder F104 FOR BORING FROM 66MM 90°

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0
Weight in kg (each)	0
Category	Non-Stock*

*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
