24030H-150F
T-A® Replaceable Drill Body: 1.3530" - 1.8829", Standard, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

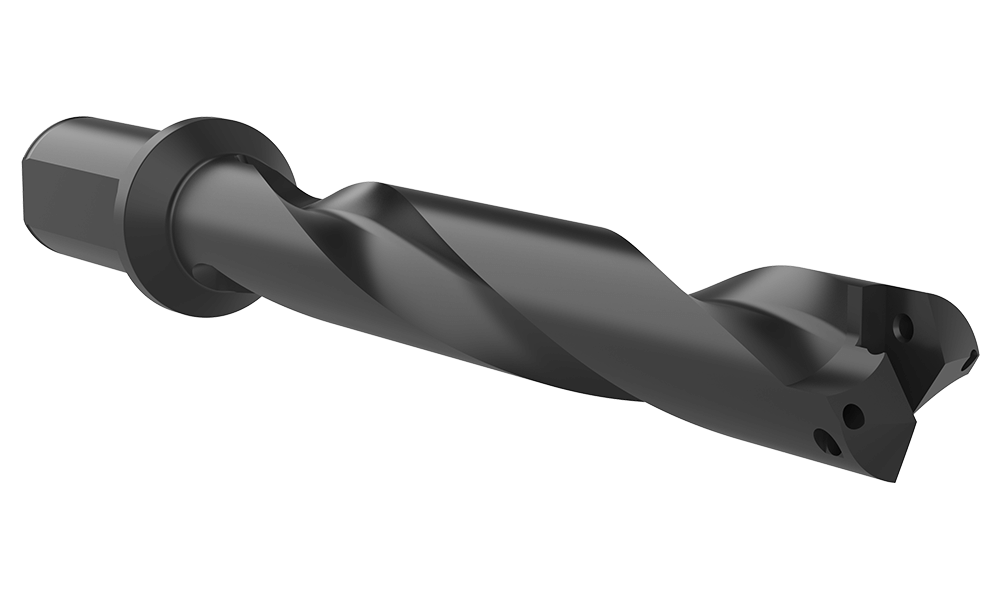

Default Image
Angle

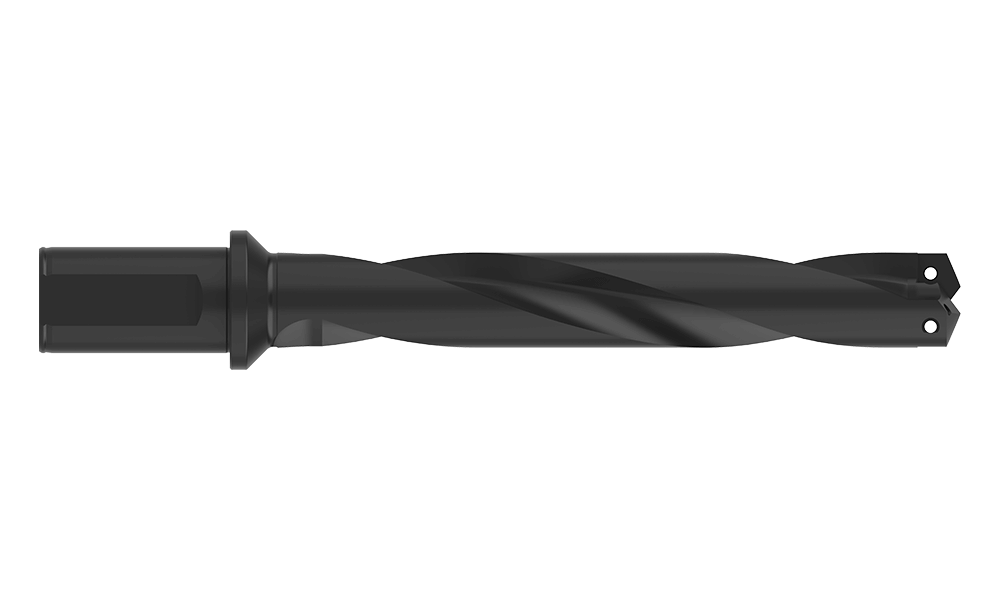

Front

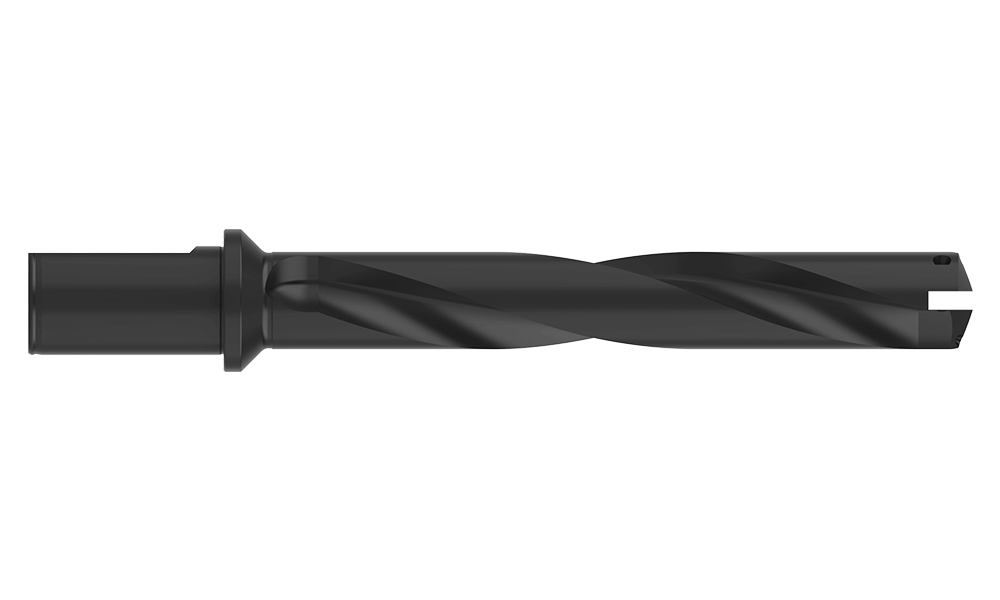

Side
Product Specifications
Series 3
Minimum Diameter (inch) 1.3530
Maximum Diameter (inch) 1.8829
Length Type Standard
Flute Type Helical
Overall Length (inch) 13.001
Tool Reference Length (inch) 10.500
Body Length (inch) 10.313
Drill Depth (inch) 9.062
Shank Type Flanged
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.37
Weight in kg (each) 1.98
Category Stocked
