24020H-125F
T-A® Replaceable Drill Body: 0.9610" - 1.3809", Standard, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

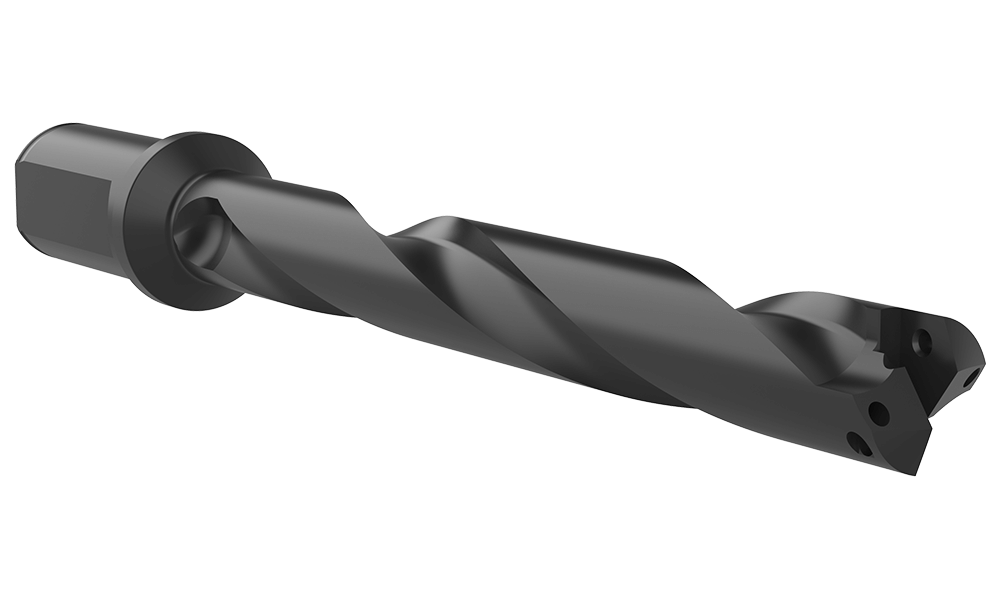

Default Image
Angle

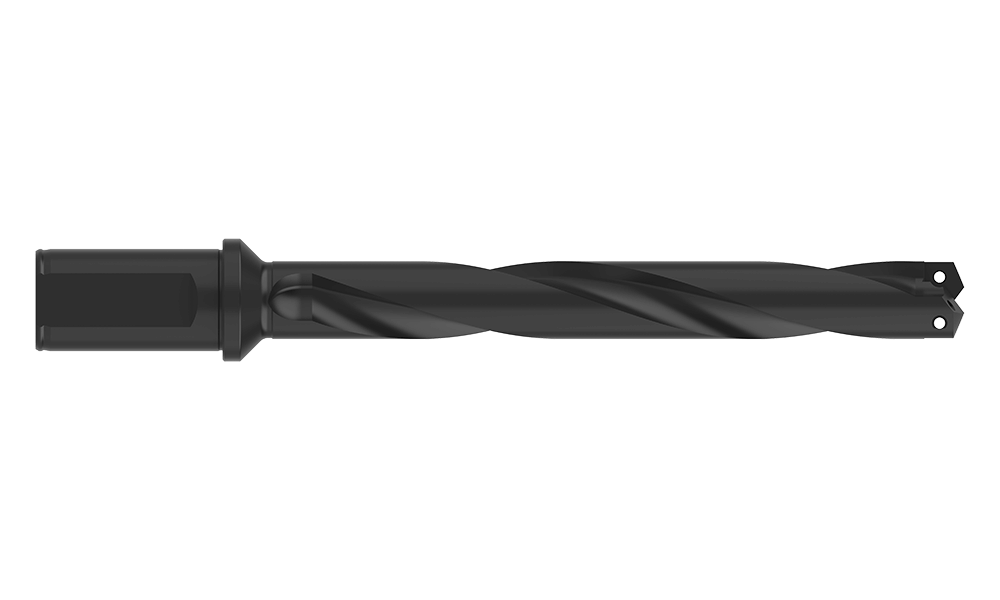

Front

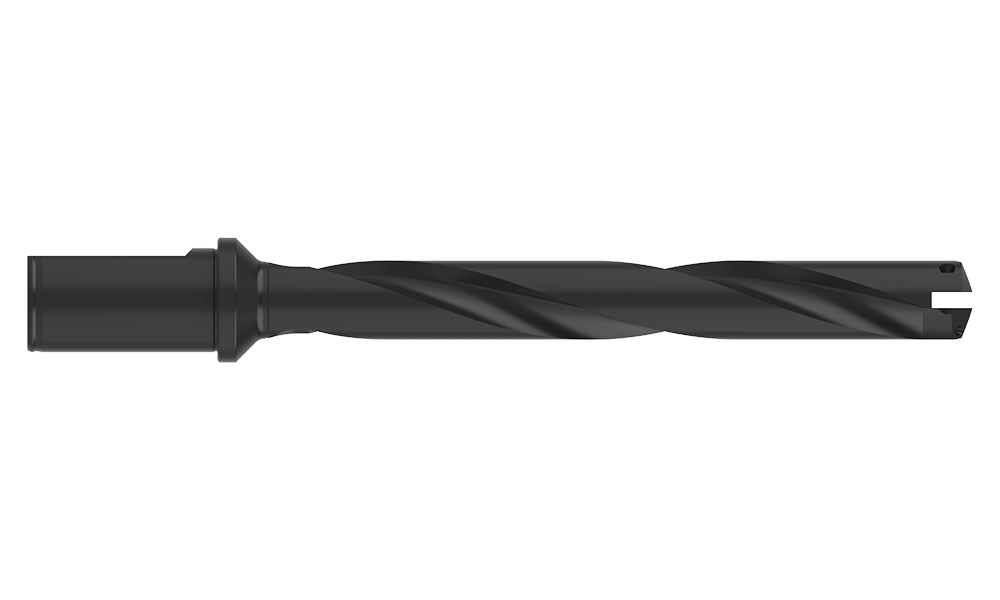

Side
Product Specifications
Series 2
Minimum Diameter (inch) 0.9610
Maximum Diameter (inch) 1.3809
Length Type Standard
Flute Type Helical
Overall Length (inch) 11.343
Tool Reference Length (inch) 9.203
Body Length (inch) 9.063
Drill Depth (inch) 8.093
Shank Type Flanged
Shank Diameter (inch) 1-1/4
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.13
Weight in kg (each) 0.97
Category Stocked
