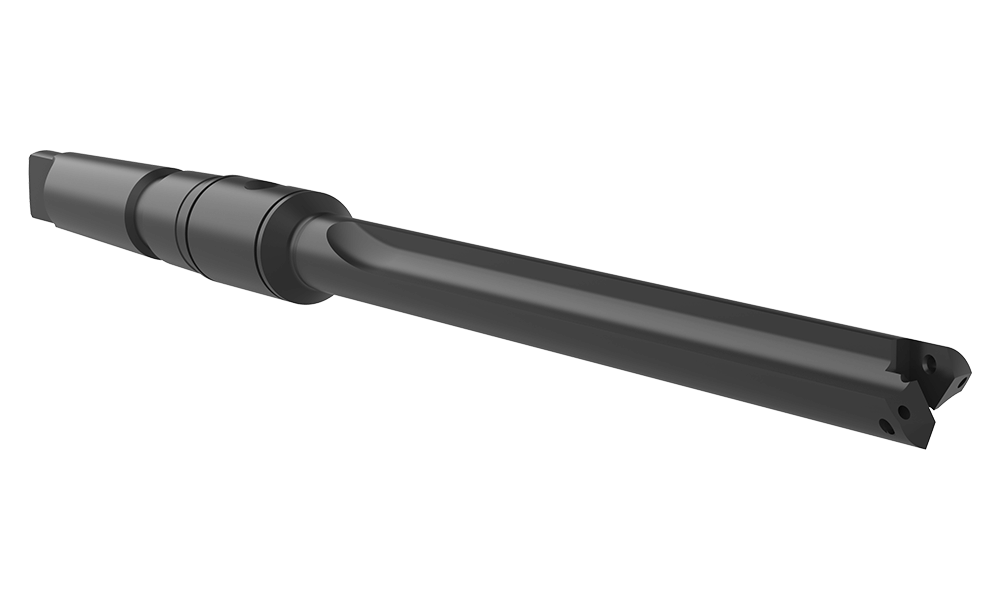

24010S-003I
T-A® Replaceable Drill Body: 0.6900" - 0.9609", Standard, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 1
Minimum Diameter (inch) 0.6900
Maximum Diameter (inch) 0.9609
Length Type Standard
Flute Type Straight
Overall Length (inch) 13.156
Tool Reference Length (inch) 9.608
Body Length (inch) 7.875
Drill Depth (inch) 6.631
Shank Type Morse Taper
Shank Diameter (inch) #3 MT
Pipe Tap Side (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.43
Weight in kg (each) 0.65
Category Stocked
