24005H-075F
T-A® Replaceable Drill Body: 0.6094" - 0.6959", Standard, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

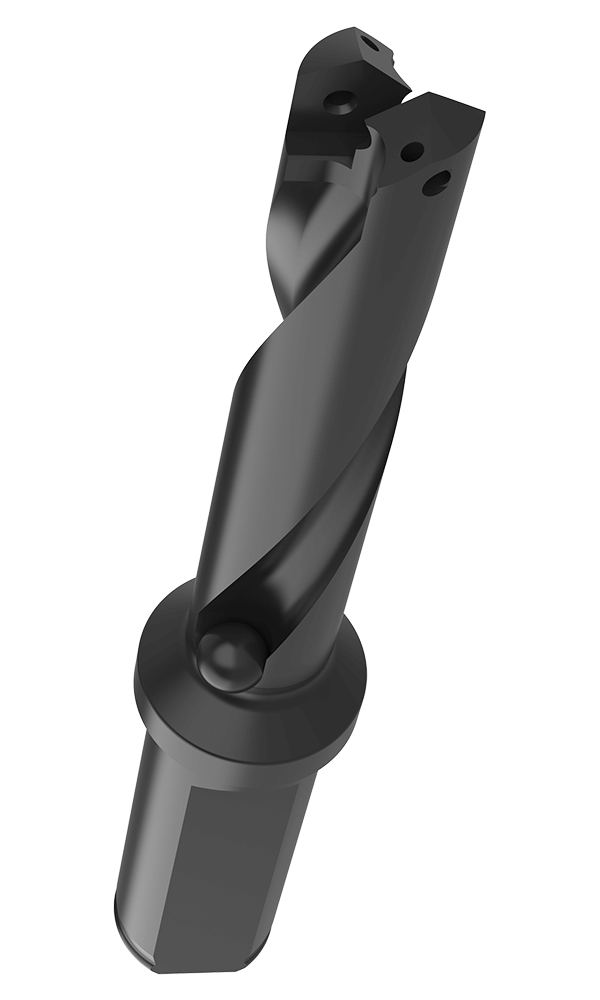

Default Image
Angle

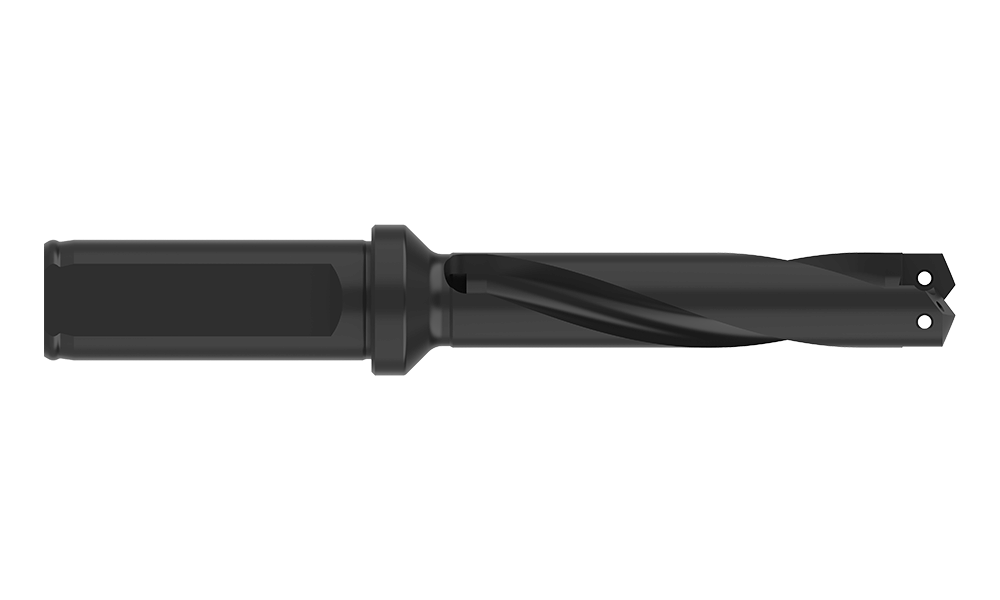

Front

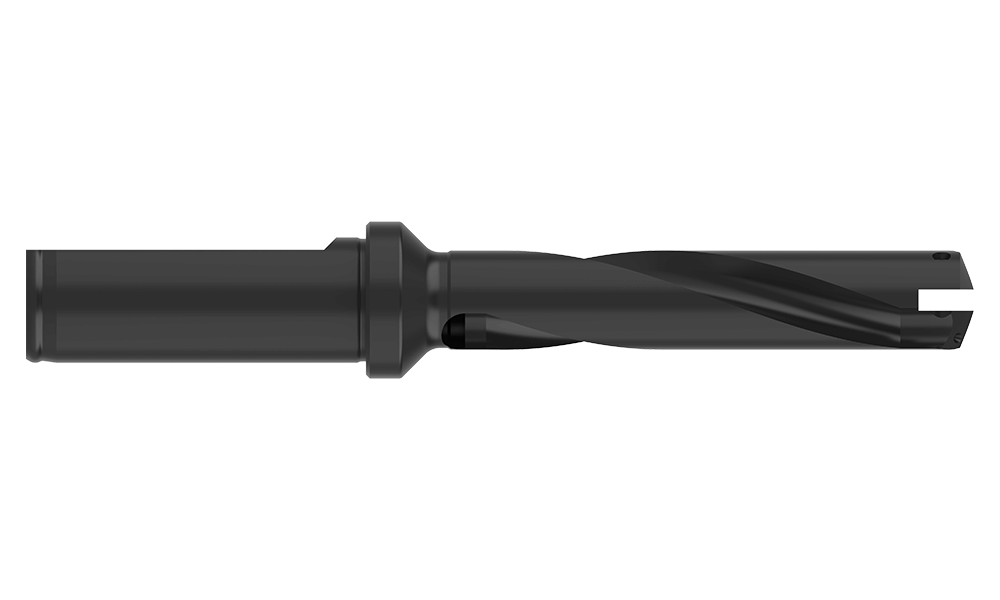

Side
Product Specifications
Series 0
Sub-Series .5
Minimum Diameter (inch) 0.6094
Maximum Diameter (inch) 0.6959
Length Type Standard
Flute Type Helical
Overall Length (inch) 5.655
Tool Reference Length (inch) 3.732
Body Length (inch) 3.625
Drill Depth (inch) 3.034
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.47
Weight in kg (each) 0.21
Category Stocked
