235013
Wohlhaupter® Serrated Body: 1.004" - 1.181" (25.5 mm -30 mm), MVS 63-36
Wohlhaupter® Serrated Body

Add to cart image Add to list image







Default Image

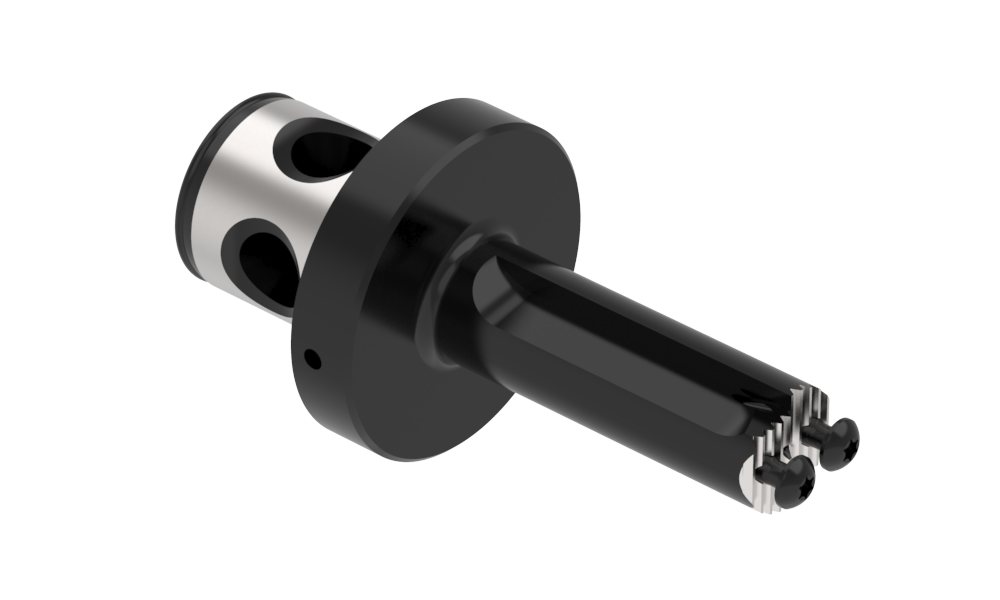

Angle

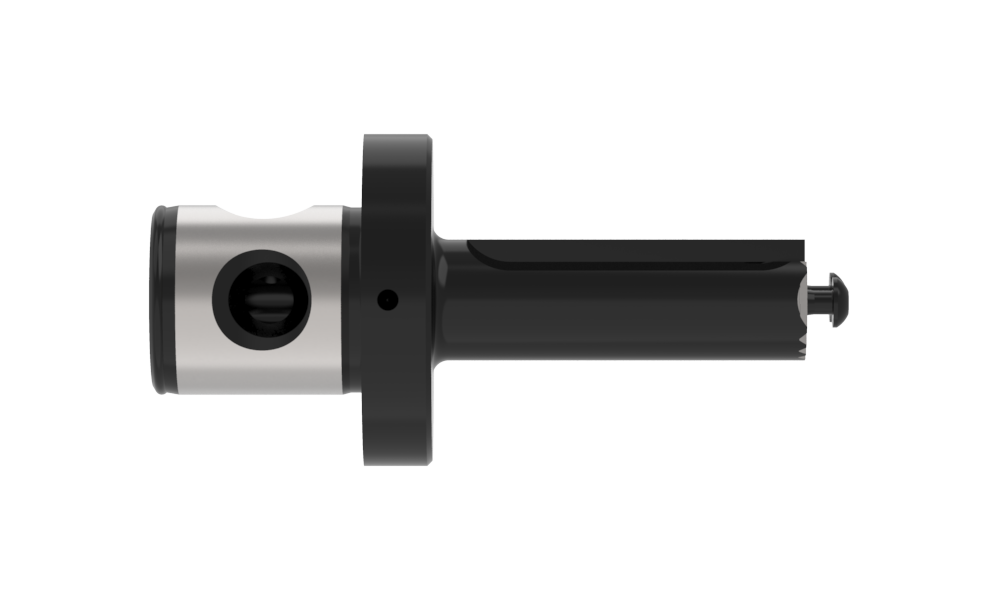

Side
Product Specifications
Type of Product Serrated Body
Minimum Diameter (mm) 25.5
Minimum Diameter (inch) 1.004
Maximum Diameter (mm) 30
Maximum Diameter (inch) 1.181
Working Length (mm) 82
Working Length (inch) 3.228
Body Length (mm) 84
Body Length (inch) 3.307
Body Diameter (mm) 23
Body Diameter (inch) 0.906
Male Minor 36
Male Major 63
Material Steel
Connection Style MVS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.168
Weight in kg (each) 0.53
Category Stocked
