Item Detail

226022

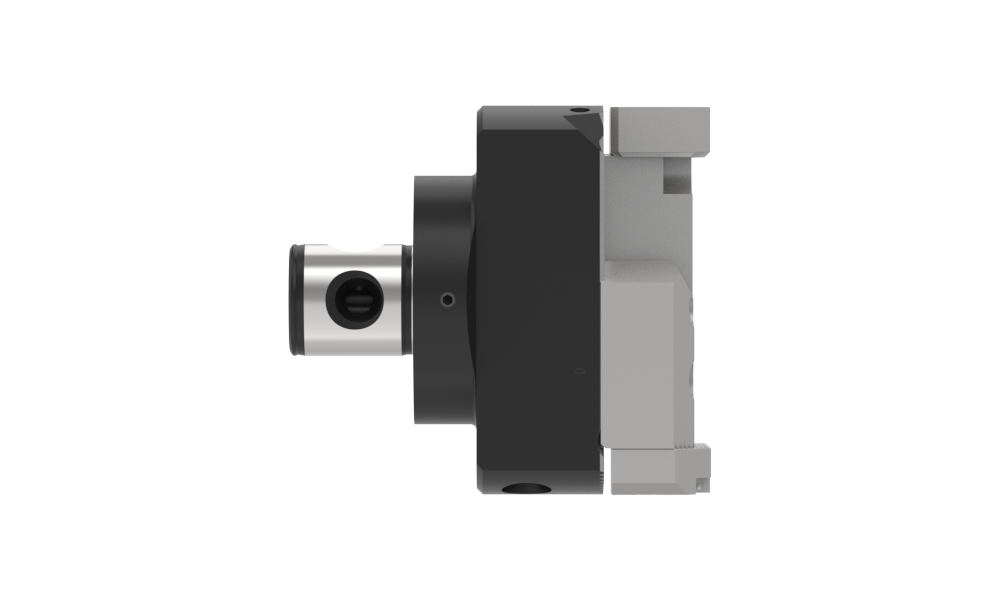

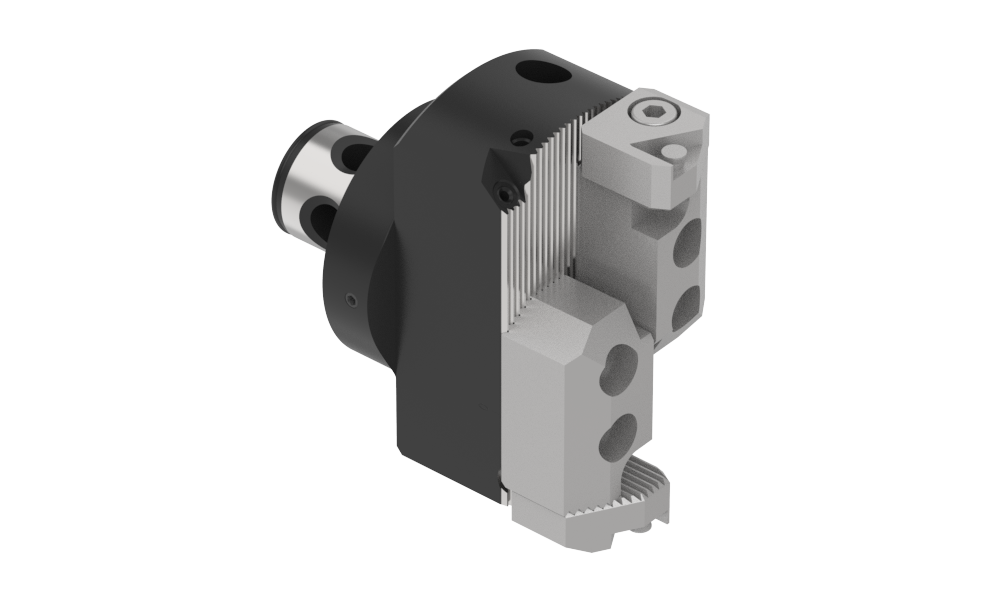

Wohlhaupter® Grooving Head Assembly - Aluminum: 3.228" - 6.102" (82.00 mm - 155.00 mm), MVS 80-36

Wohlhaupter® Assembly

Qty

Product Specifications

Type of Product	Grooving Head Assembly - Aluminum
Minimum Diameter (inch)	3.228
Minimum Diameter (mm)	82.00
Maximum Diameter (inch)	6.102
Maximum Diameter (mm)	155.00
Male Major	80
Male Minor	36

Items Included

$Wohlhaupter\Serrated Tool Bodies\348009\\348009_Angle.png$	348009 (Qty1) Serrated Tool Body MVS80-36 A150-205
$Wohlhaupter\Accessories and Spare Parts\Support Blocks\226012\226012_Angle.png$	226012 (Qty2) Support Block SUPPORT BLOCK
$Wohlhaupter\Insert and Tool Holders\Insert Holders for Grooving\226010\226010_Angle.png$	226010 (Qty2) Insert Holder OBS F304 FOR GROOVING 53MM

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0
Weight in kg (each)	0
Category	Non-Stock*

*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
