220Z0S-075F
T-A® Replaceable Drill Body: 0.4370" - 0.5109", Short, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

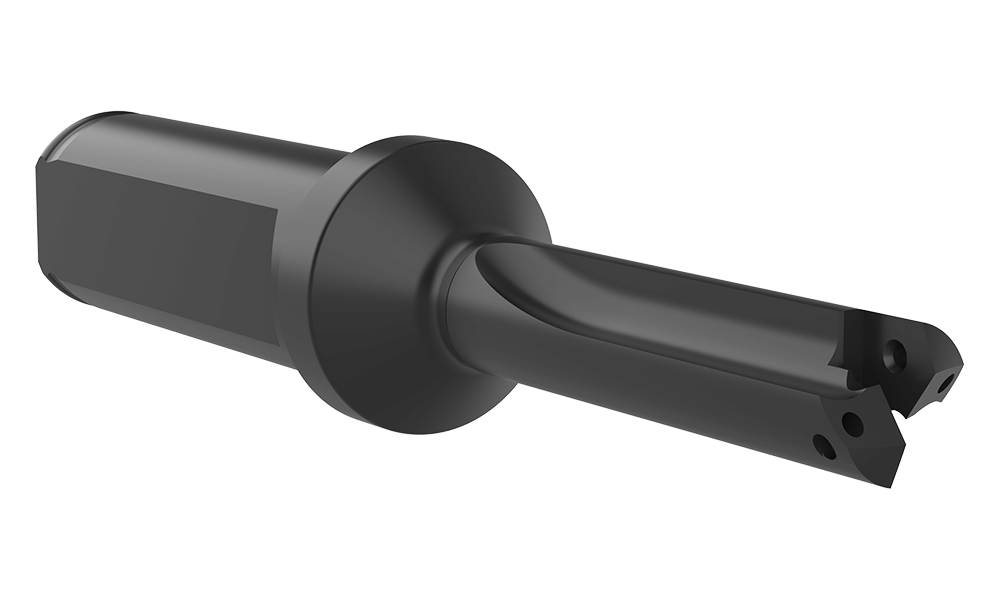

Default Image
Angle
Front

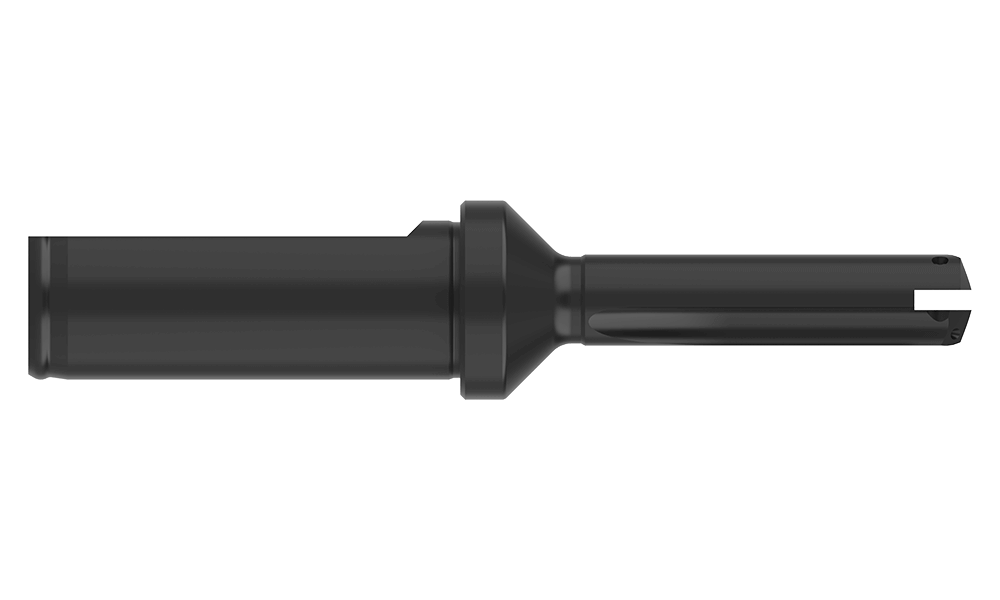

Side
Product Specifications
Series Z
Minimum Diameter (inch) 0.4370
Maximum Diameter (inch) 0.5109
Length Type Short
Flute Type Straight
Overall Length (inch) 4.436
Tool Reference Length (inch) 2.496
Body Length (inch) 2.406
Drill Depth (inch) 1.142
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.36
Weight in kg (each) 0.16
Category Stocked
