22050S-50FM
T-A® Replaceable Drill Body: 62.38 mm - 89.09 mm, Short, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

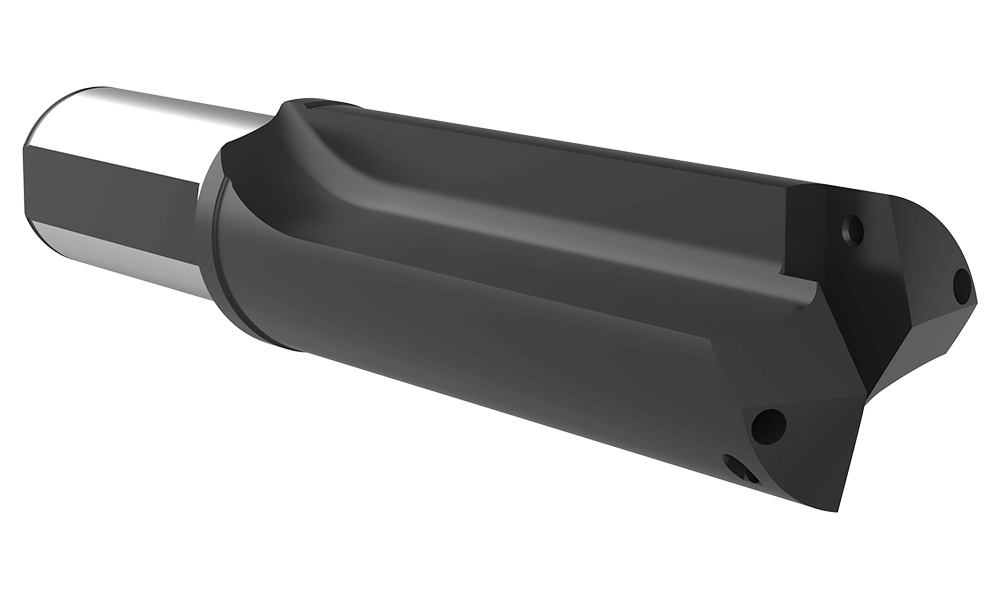

Default Image
Angle

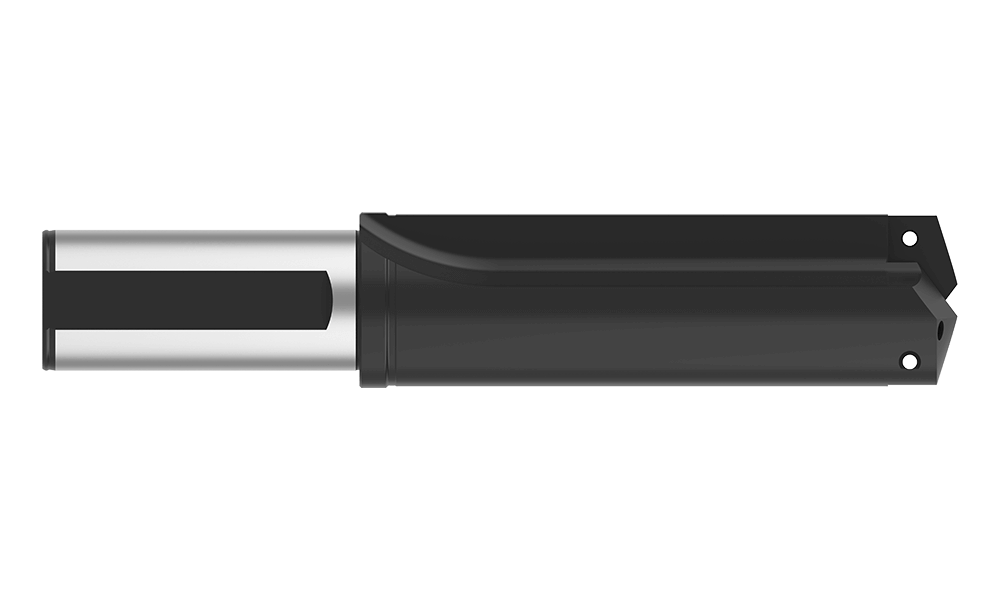

Front

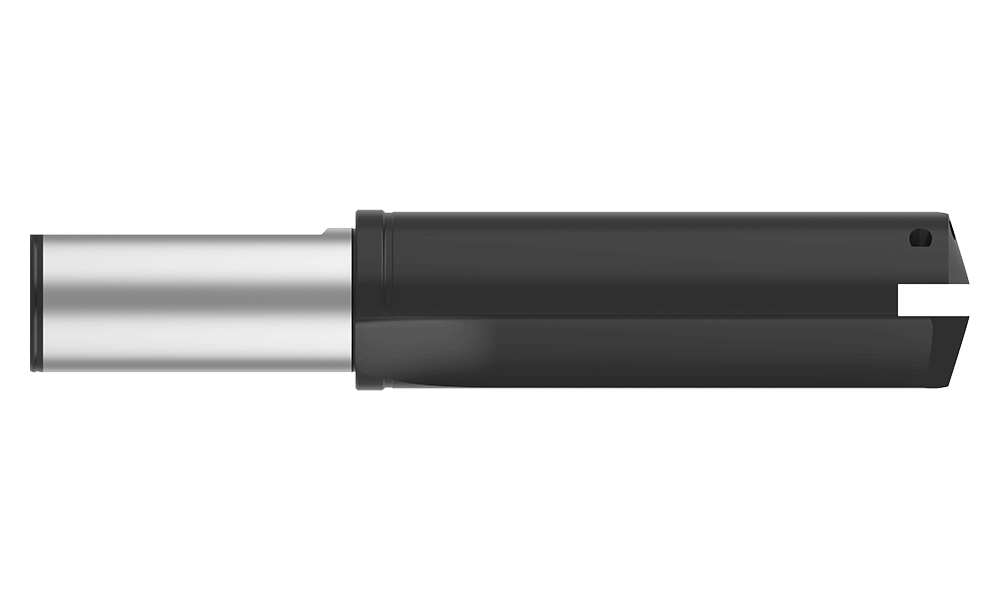

Side
Product Specifications
Series 5
Minimum Diameter (mm) 62.38
Maximum Diameter (mm) 89.09
Length Type Short
Flute Type Straight
Overall Length (mm) 295.9
Tool Reference Length (mm) 222.3
Body Length (mm) 215.9
Drill Depth (mm) 165.7
Shank Type Flanged
Shank Diameter (mm) 50
Shank Length (mm) 80.0
Pipe Tap Rear (mm) 1/2 BSPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7619-IP25-1 (Qty0)
Replacement T-A® Screw
5-8 KIT (1) TORX PLUS,CL 6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-25 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-25
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 10.52
Weight in kg (each) 4.78
Category Stocked
