22000S-075L
T-A® Replaceable Drill Body: 0.5110" - 0.6959", Short, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

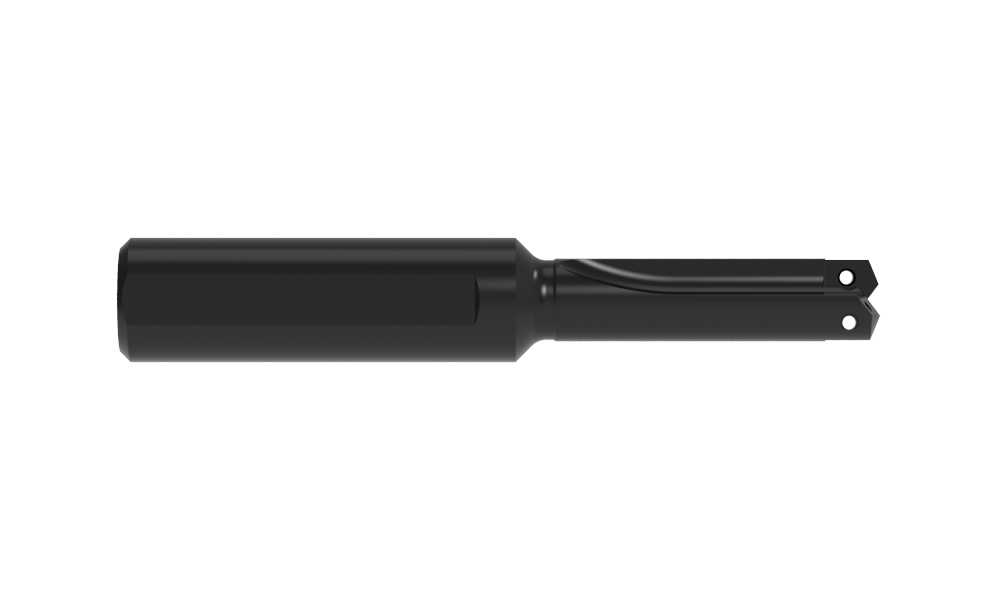

Front

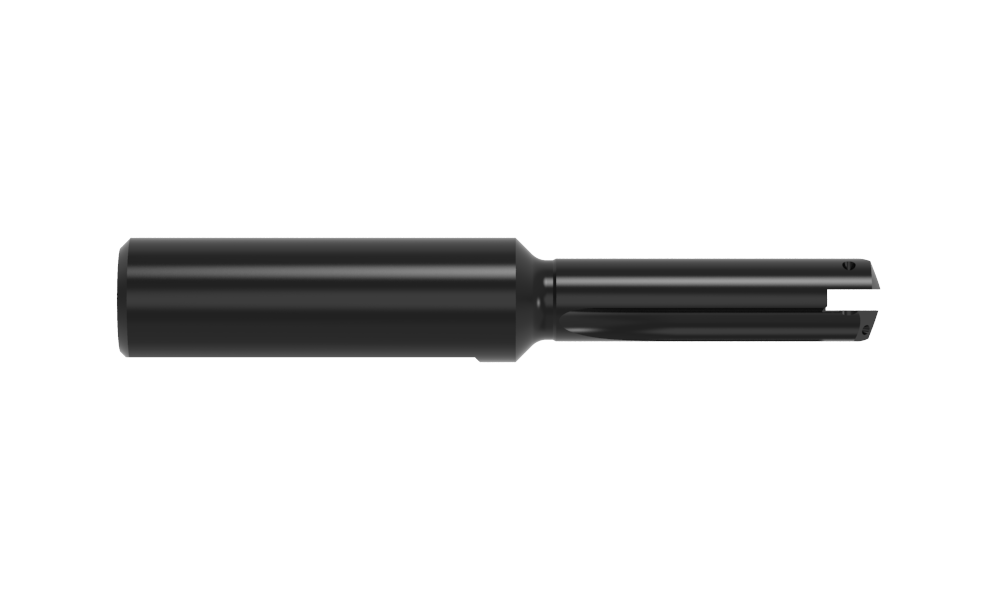

Side
Product Specifications
Series 0
Minimum Diameter (inch) 0.5110
Maximum Diameter (inch) 0.6959
Length Type Short
Flute Type Straight
Overall Length (inch) 4.563
Tool Reference Length (inch) 2.295
Body Length (inch) 2.188
Drill Depth (inch) 1.218
Shank Type Lathe
Shank Diameter (inch) 3/4
Shank Length (inch) 2.375
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.38
Weight in kg (each) 0.17
Category Stocked
