218045
Wohlhaupter® Indexable Boring Bar: 0.551" (14 mm) Min Ø, 3.937" (100 mm) Max depth, Form 101, 16 mm Shank, Carbide
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

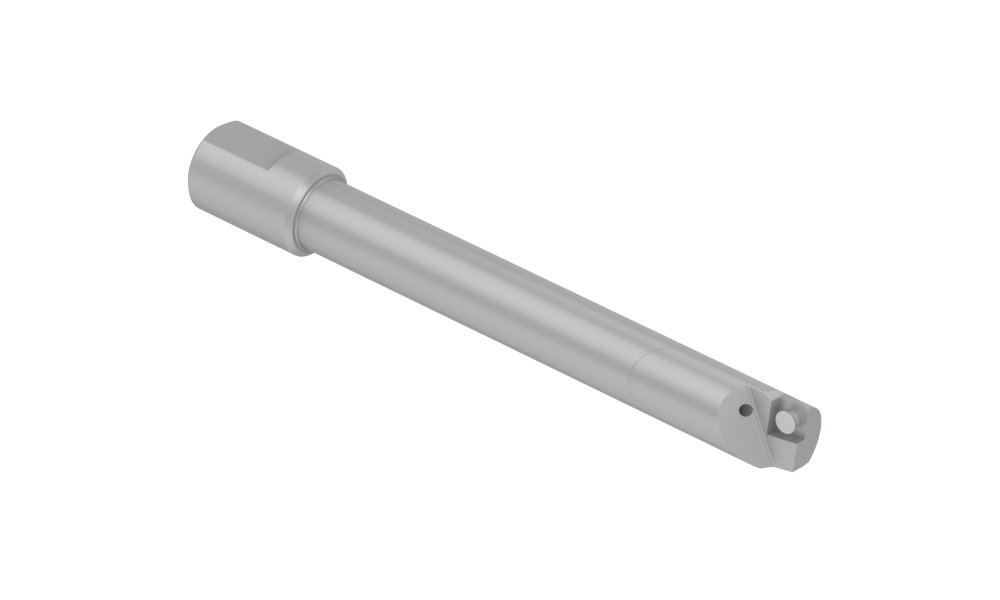

Angle

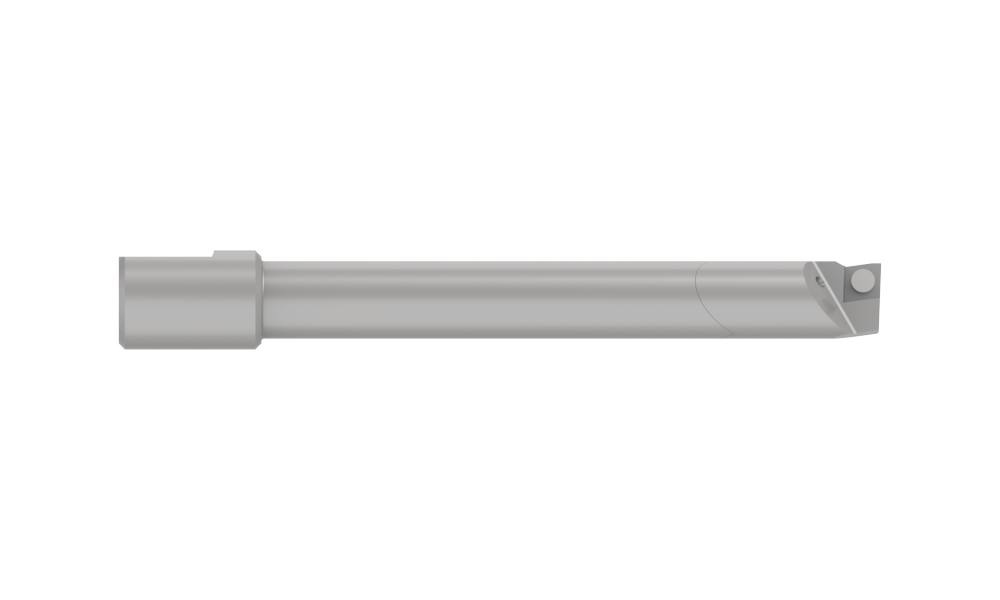

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Carbide
Form Type Form 101
IC Size (mm) 6.35
IC Size (inch) 0.25
Insert Thickness (mm) 2.38
Insert Thickness (inch) 0.094
Max Bore Depth (mm) 100
Max Bore Depth (inch) 3.937
Minimum Diameter (mm) 14
Minimum Diameter (inch) 0.551
Number of Flats 1
Overall Length (mm) 123
Overall Length (inch) 4.843
Shank Diameter (mm) 16
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.445
Weight in kg (each) 0.2
Category Stocked
