201089
Wohlhaupter® Chamfering Bar: 1.614" (41 mm) Min Ø, 1.614" (41 mm) Max depth, Form 163, Steel
Wohlhaupter® Fixed Body MVS

Add to cart image Add to list image

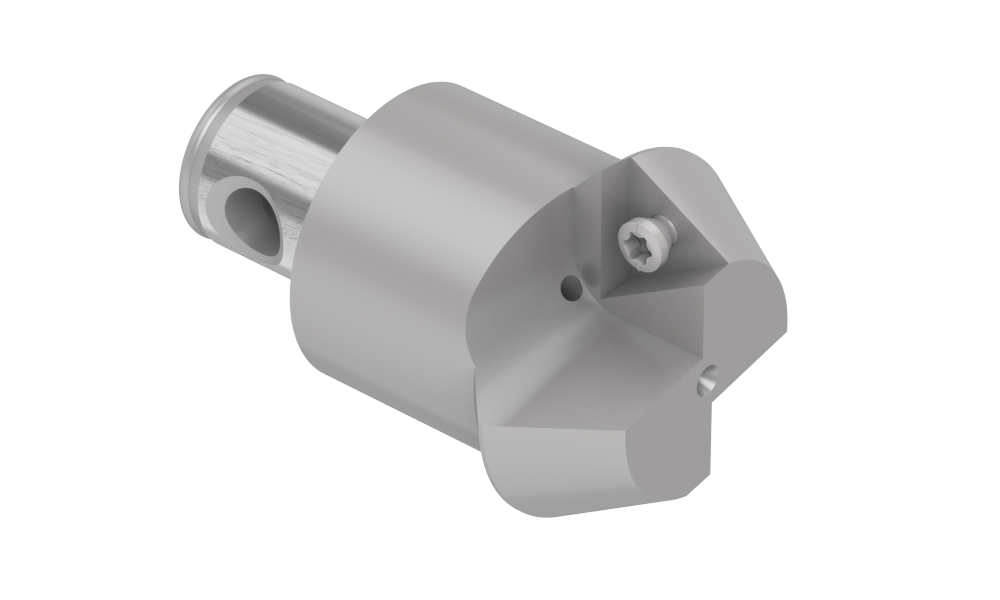

Default Image
Angle

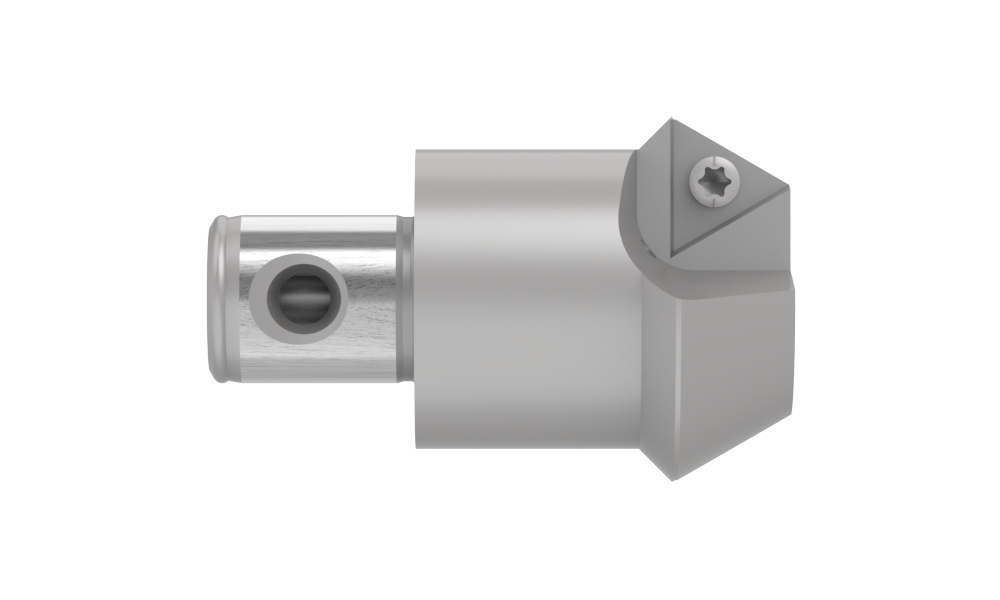

Side
Product Specifications
Product Line Chamfering
Operation Chamfering
Male Connection Type MVS
Male Connection 80 - 36
Minimum Diameter (inch) 0.984
Minimum Diameter (mm) 25.00
Cutter Diameter (inch) 1.614
Cutter Diameter (mm) 41.00
Lead-In 30°
Machining Direction CW
Insert Form 163
Number of Inserts 2
Type of Product Fixed Body MVS
Product Application Rough Boring
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
