201088
Wohlhaupter® Chamfering Bar: 1.575" (40 mm) Min Ø, 1.614" (41 mm) Max depth, Form 163, Steel
Wohlhaupter® Fixed Body MVS

Add to cart image Add to list image







Default Image

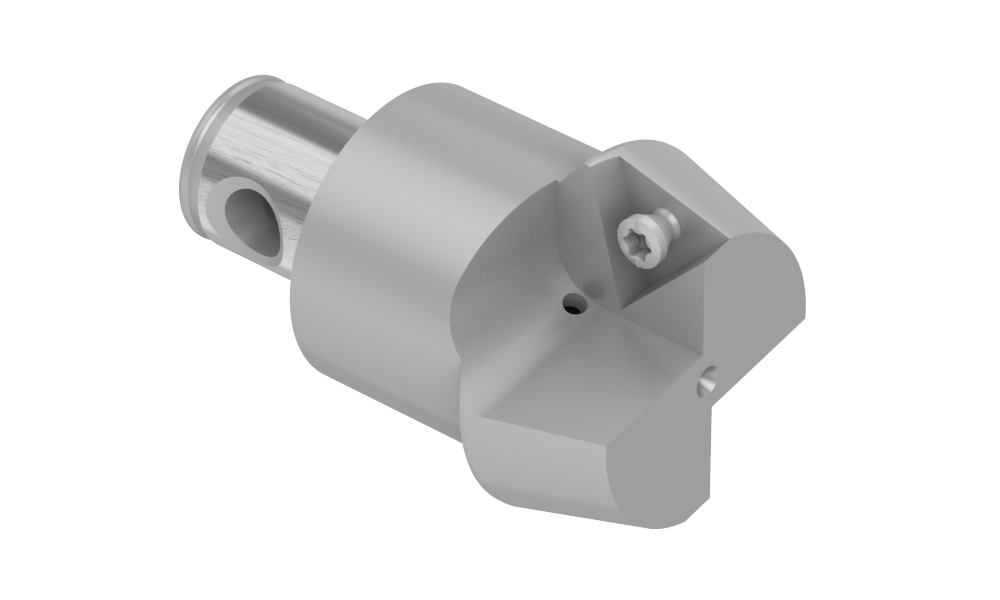

Angle

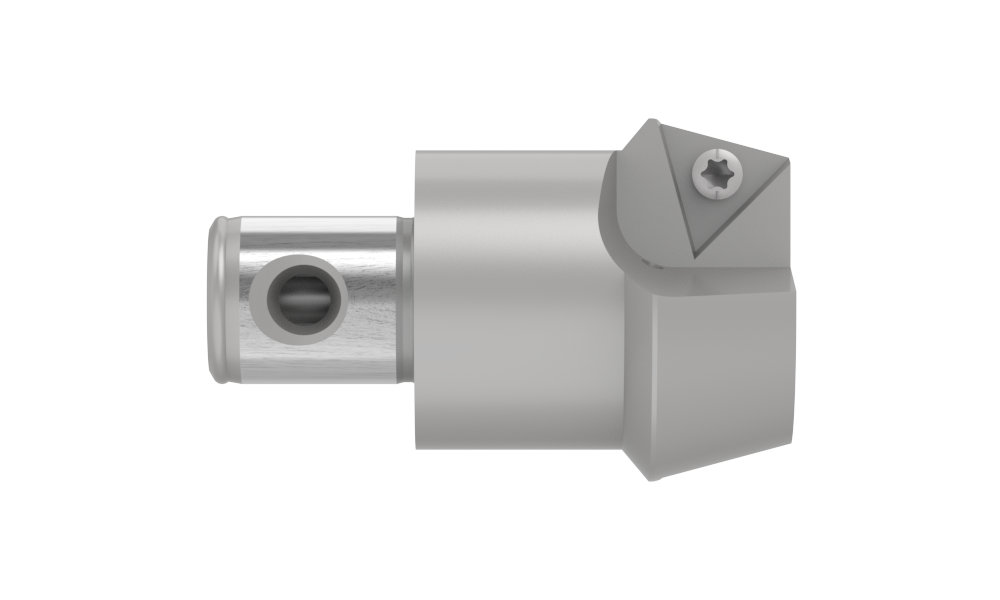

Side
Product Specifications
Product Line Chamfering
Operation Chamfering
Male Connection Type MVS
Male Connection 80 - 36
Minimum Diameter (inch) 1.260
Minimum Diameter (mm) 32.00
Cutter Diameter (inch) 1.574
Cutter Diameter (mm) 40.00
Lead-In 15°
Machining Direction CW
Insert Form 163
Number of Inserts 2
Type of Product Fixed Body MVS
Product Application Rough Boring
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.551
Weight in kg (each) 0.25
Category Stocked
