201082
Wohlhaupter® Chamfering Bar: 1.299" (33 mm) Min Ø, 1.22" (31 mm) Max depth, Form 112, Steel
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

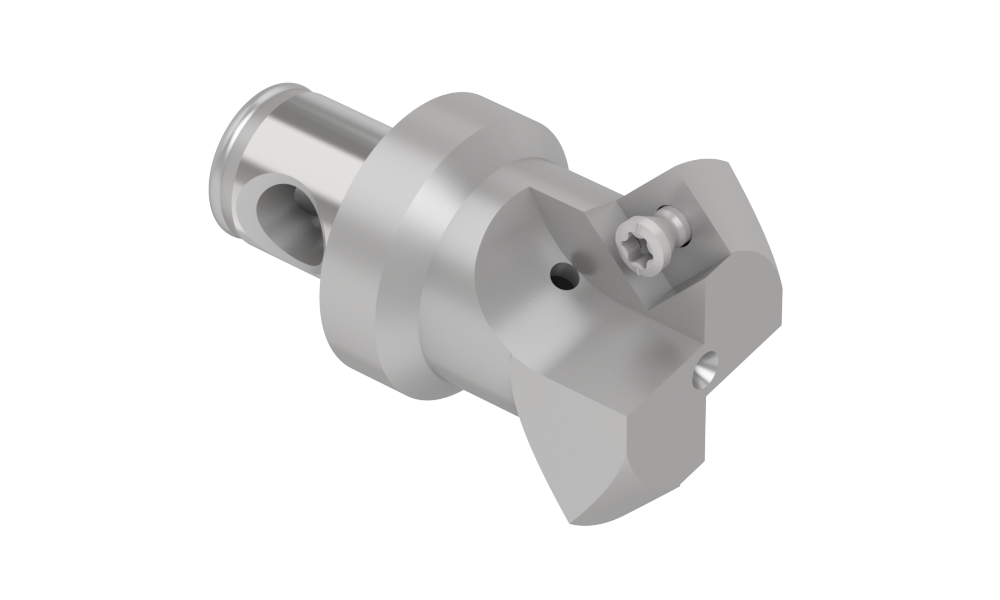

Angle

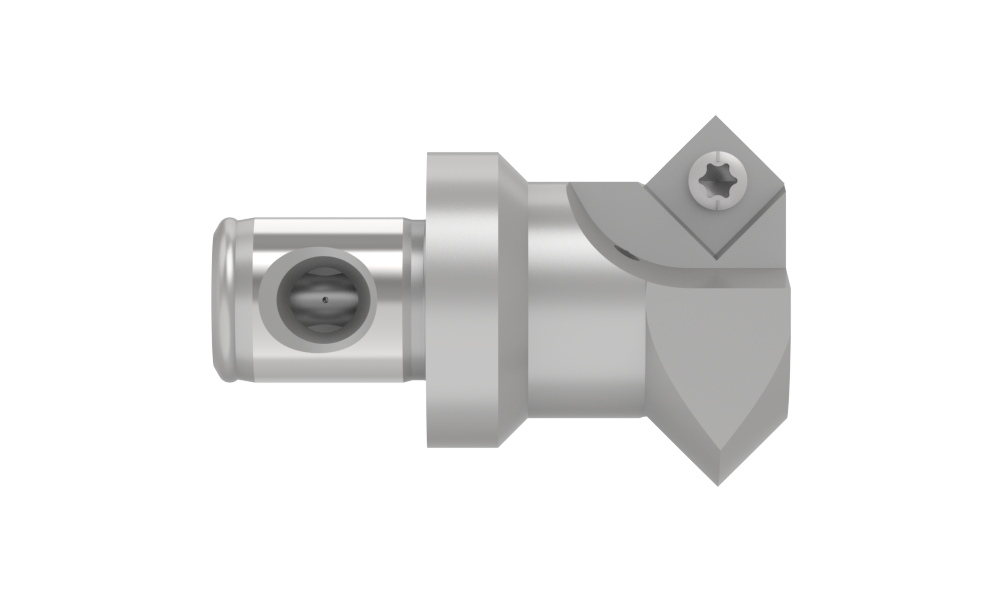

Side
Product Specifications
Type of Product Chamfering Bar
Material Steel
Form Type Form 112
IC Size mm 9.52
IC Size inch 0.375
Insert thickness mm 3.97
Insert thickness inch 0.156
Max bore depth mm 31
Max bore depth inch 1.22
Minimum diameter mm 33
Minimum diameter inch 1.299
Overall length mm 31
Overall length inch 1.22
Male major 25
Male minor 14
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
