1N22D-0108
T-A® Replaceable Drill Insert: 1.2500" (31.75 mm), Standard Geometry, Diamond Film
T-A® Insert

Add to cart image Add to list image







See Additional Technical Information
Default Image

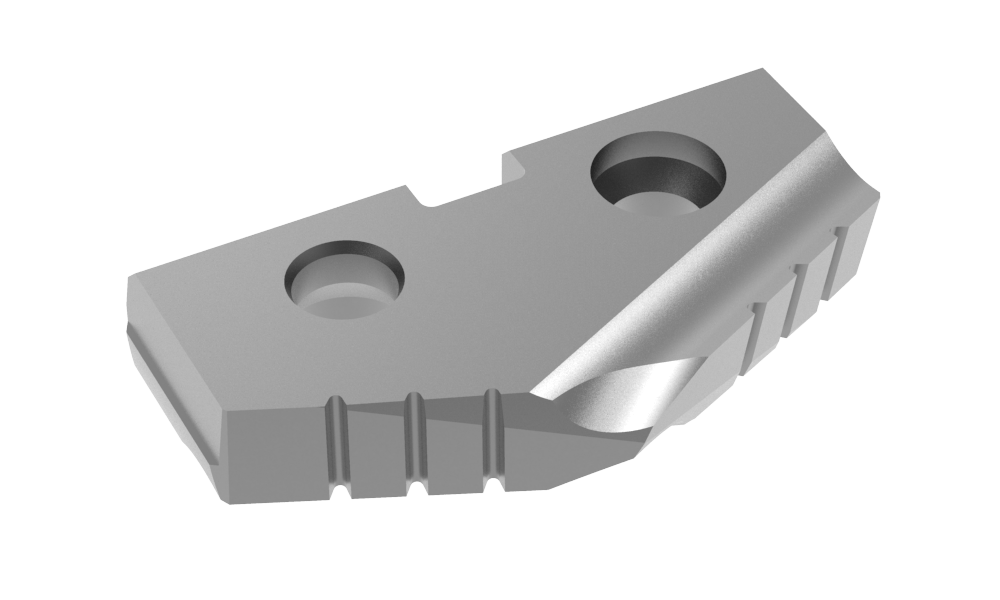

Angle

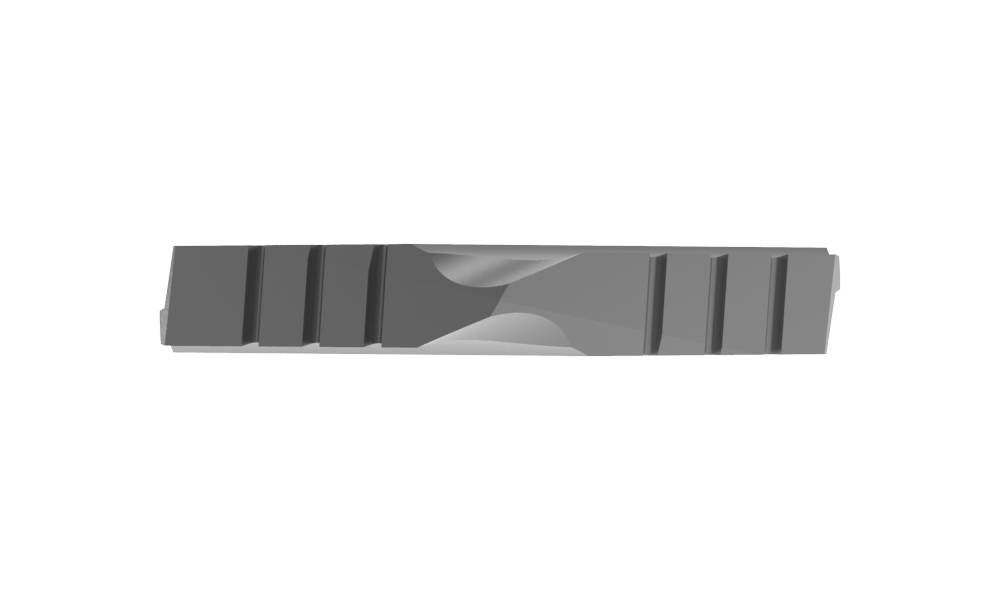

Front

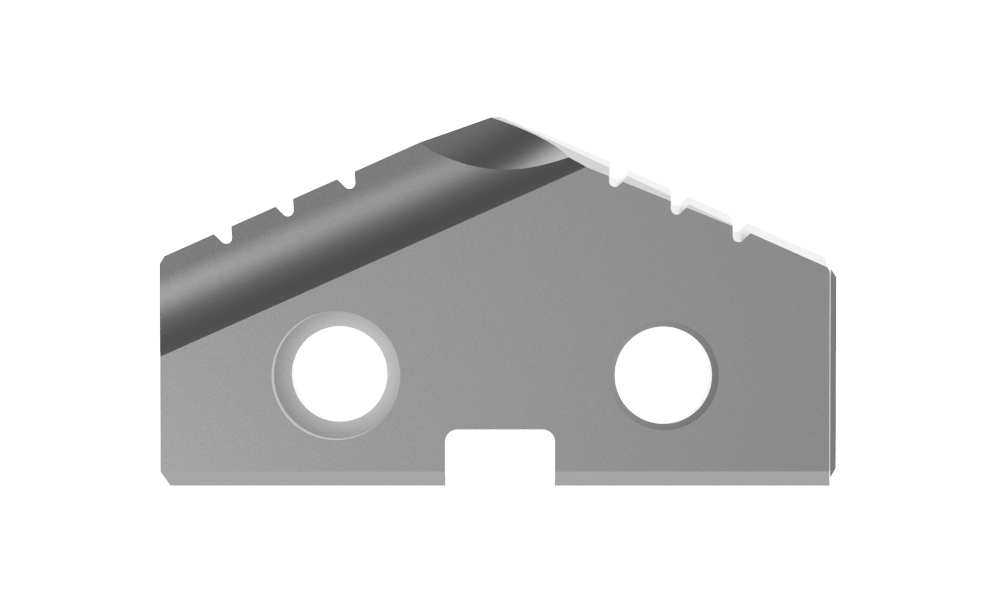

Top
Product Specifications
Series 2
Sub-Series .5
Diameter Fractional Equivalent 1-1/4"
Diameter inch 1.2500
Diameter mm 31.75
Geometry Standard
Material Carbide
Grade N2
Coating Diamond Film
Included Angle 132°
Thickness inch 3/16"
Type of Product Replaceable Drill Insert
Product Application General Purpose
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.03
Weight in kg (each) 0.01
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
