104065

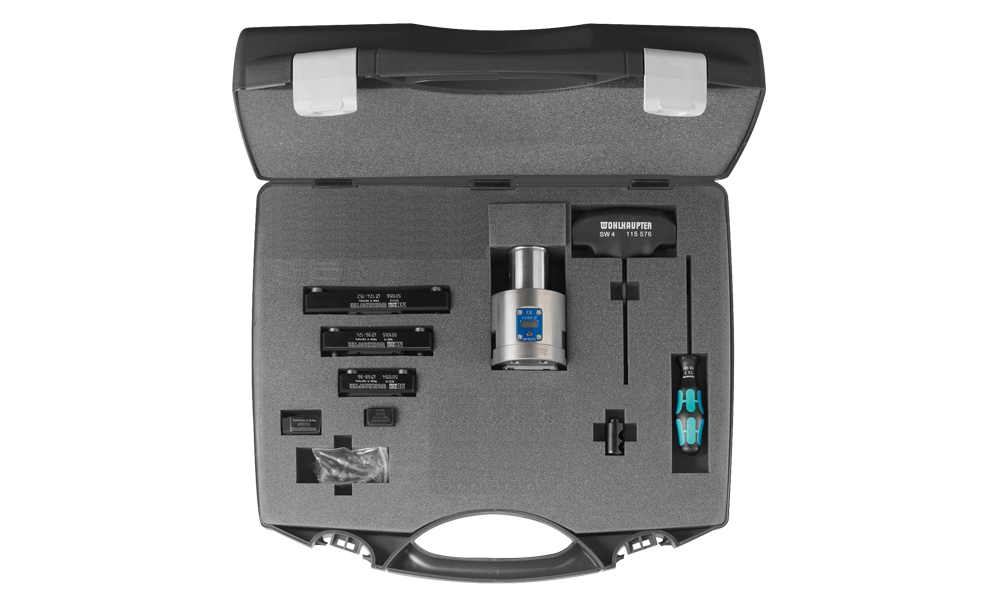

Wohlhaupter® DigiBore Digital Boring Tool Kit (Imperial): 2.677" - 5.984" (68.00 mm - 152.00 mm), Insert Form 101
Wohlhaupter® Kit

Add to cart image Add to list image







Default Image
Other
Product Specifications
Product Line DigiBore
Boring Head 504001
Male Connection Type MVS
Male Connection 63 - 36
Minimum Diameter (inch) 2.667
Maximum Diameter (inch) 5.984
Adjustment Unit Imperial
3E-Tech (Yes/No) No
Insert Form 101
Type of Product Boring Tool Kit
Product Application Fine Boring
Items Included
Wohlhaupter\Tools for Finish Machining\DigiBore\504001\504001_Angle.png 504001 (Qty1)
Boring Head
DIGI, 0.118-8.189", MVS63-36

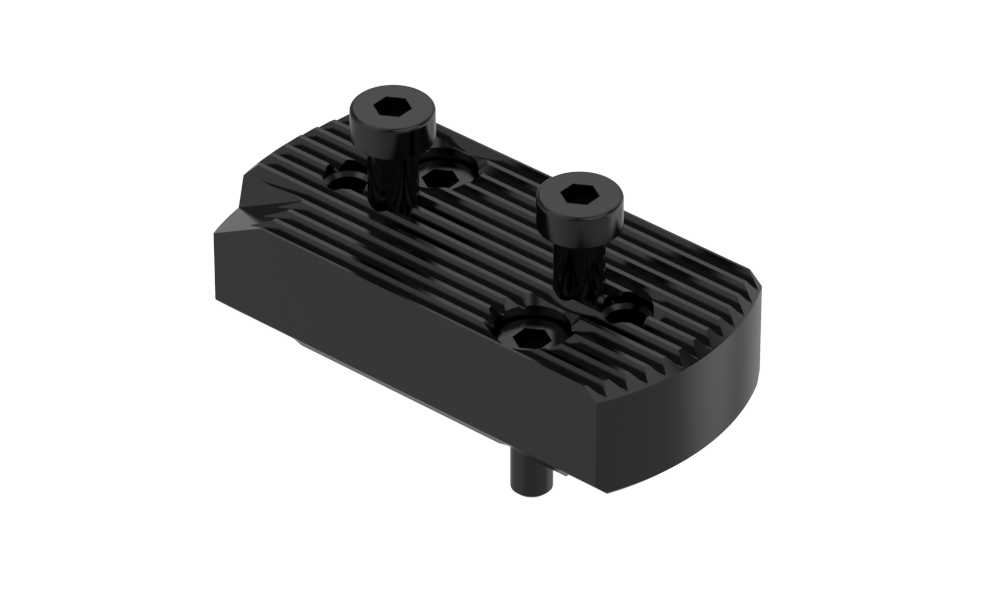

Wohlhaupter\Insert and Tool Holders\Serrated Slides\501054\501054_Angle.png 501054 (Qty1)
Serrated Slide
ALU, A68-96

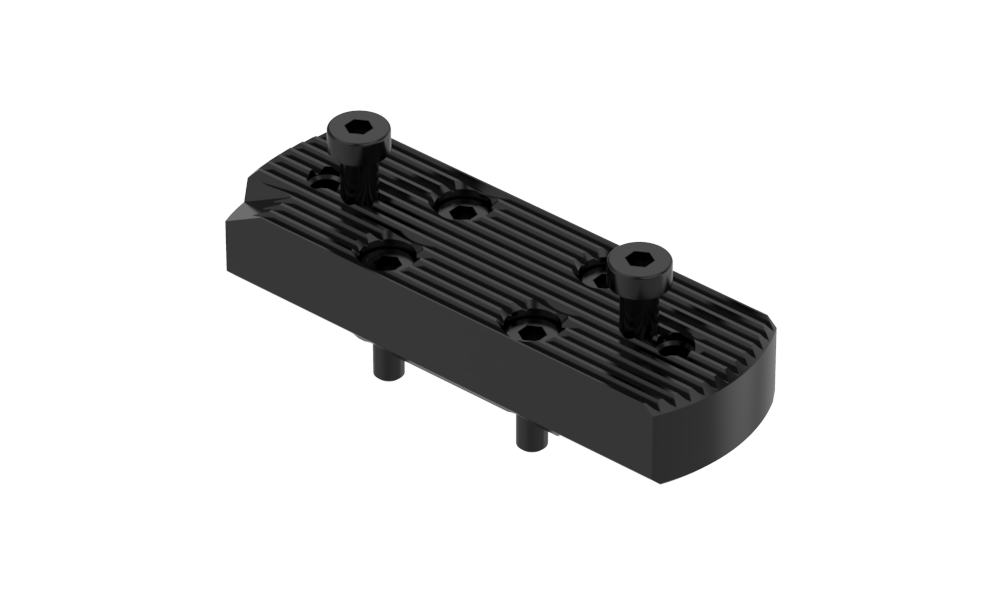

Wohlhaupter\Insert and Tool Holders\Serrated Slides\501055\501055_Angle.png 501055 (Qty1)
Serrated Slide
ALUMINIUM A96-124

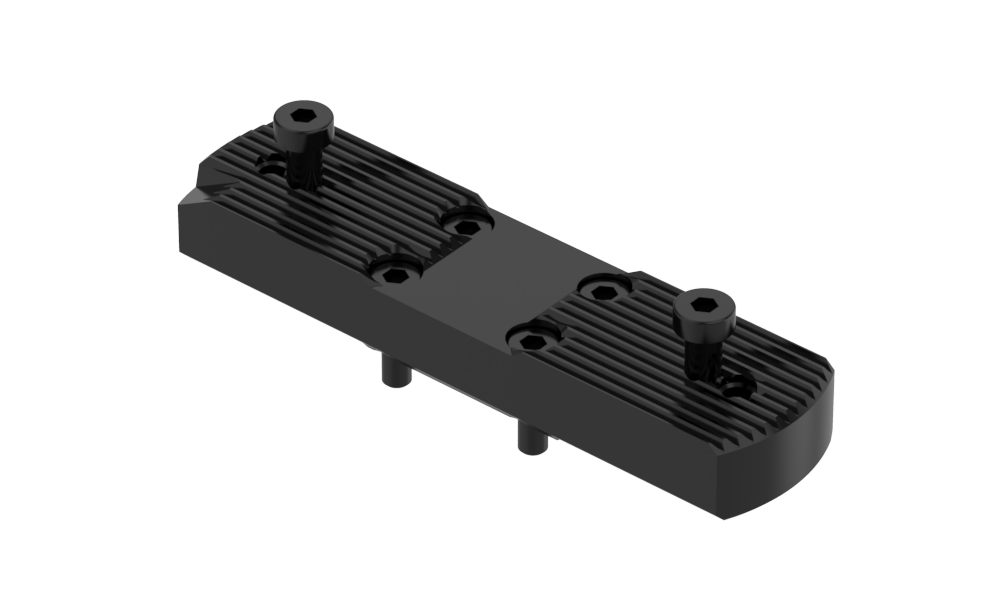

Wohlhaupter\Insert and Tool Holders\Serrated Slides\501056\501056_Angle.png 501056 (Qty1)
Serrated Slide
ALU, A124-152

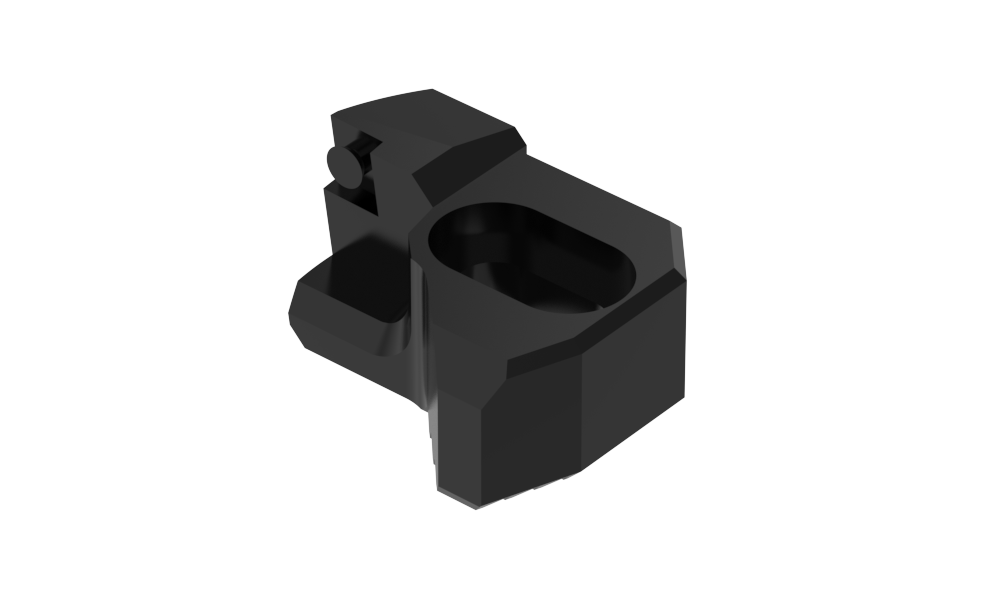

Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Finish Machining\502064\502064_Angle.png 502064 (Qty1)
Insert Holder
F101 FROM 68MM 92

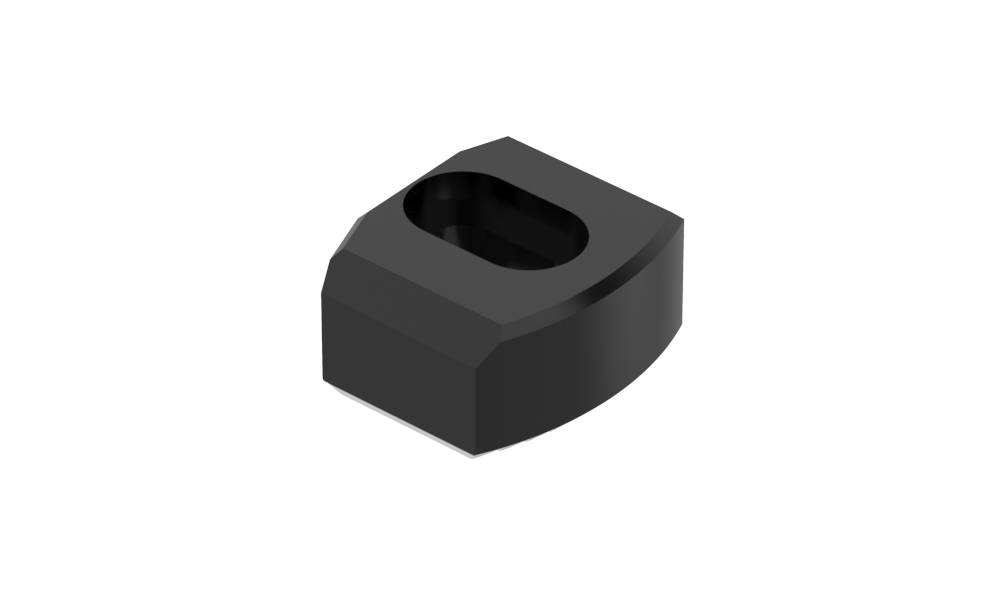

Wohlhaupter\Accessories and Spare Parts\Counter Weights\502165\502165_Angle.png 502165 (Qty1)
Counterweight
COUNTER WEIGHT

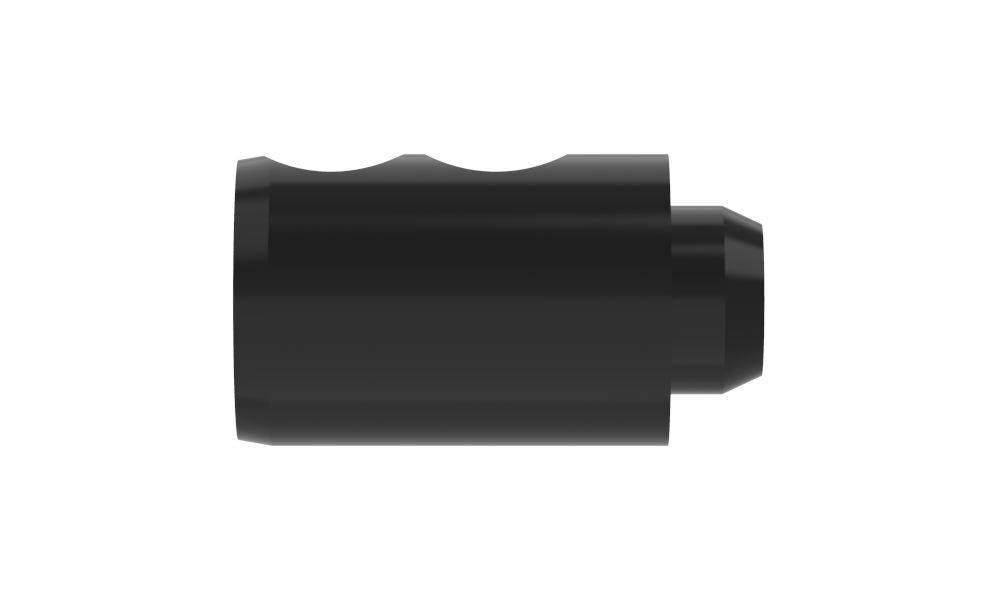

Wohlhaupter\Accessories and Spare Parts\Coolant Adapter Sets\501157\501157_Side.png 501157 (Qty1)
Coolant Delivery Section
COOLANT ADAPTOR
ImageNotAvailable.png 115576 (Qty1)
Service Key
HEX DRIVER -4MM
ImageNotAvailable.png 115590 (Qty1)
Service Key
TORX DRIVER - T8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 7.16
Weight in kg (each) 3.25
Category Stocked
