103047

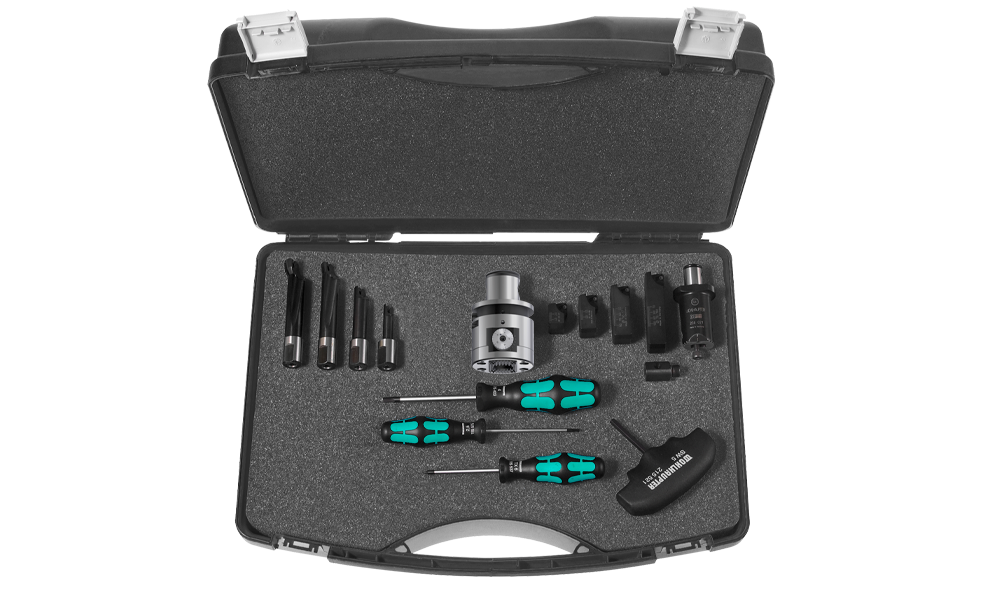

Wohlhaupter® VarioBore 3Etech Digital 3Etech Boring Tool Kit (Metric): 0.394" - 4.016" (10.00 mm - 102.00 mm), Insert Form 20

Wohlhaupter® Kit

Qty

Add to cart image

Add to list image

Default Image

Other

Product Specifications

Product Line	VarioBore
Boring Head	536002
Male Connection Type	MVS
Male Connection	50 - 28
Minimum Diameter (mm)	10.00
Maximum Diameter (mm)	102.00
Adjustment Unit	Metric
3E-Tech (Yes/No)	Yes
Insert Form	20
Type of Product	Boring Tool Kit
Product Application	Fine Boring

Items Included

$Wohlhaupter\Tools for Finish Machining\VarioBore\536002\536002_Angle.png$	536002 (Qty1) Boring Head VARIO3E, 0.4-152MM, MVS50-28
$Wohlhaupter\Insert and Tool Holders\Tool Holders for Boring\218059\218059_Angle.png$	218059 (Qty1) Boring Bar F20 FROM 10MM X=35MM 92
$Wohlhaupter\Insert and Tool Holders\Tool Holders for Boring\081045\081045_Angle.png$	081045 (Qty1) Boring Bar F20 FROM 15MM X=60MM 92°
$Wohlhaupter\Insert and Tool Holders\Tool Holders for Boring\081046\081046_Angle.png$	081046 (Qty1) Boring Bar F20 FROM 20MM X=70MM 92°
$Wohlhaupter\Insert and Tool Holders\Tool Holders for Boring\081047\081047_Angle.png$	081047 (Qty1) Boring Bar F20 FROM 25MM X=70MM 92°
$Wohlhaupter\Serrated Tool Bodies\236021\\236021_Angle.png$	236021 (Qty1) Serrated Tool Body MVS35-16 A29-53

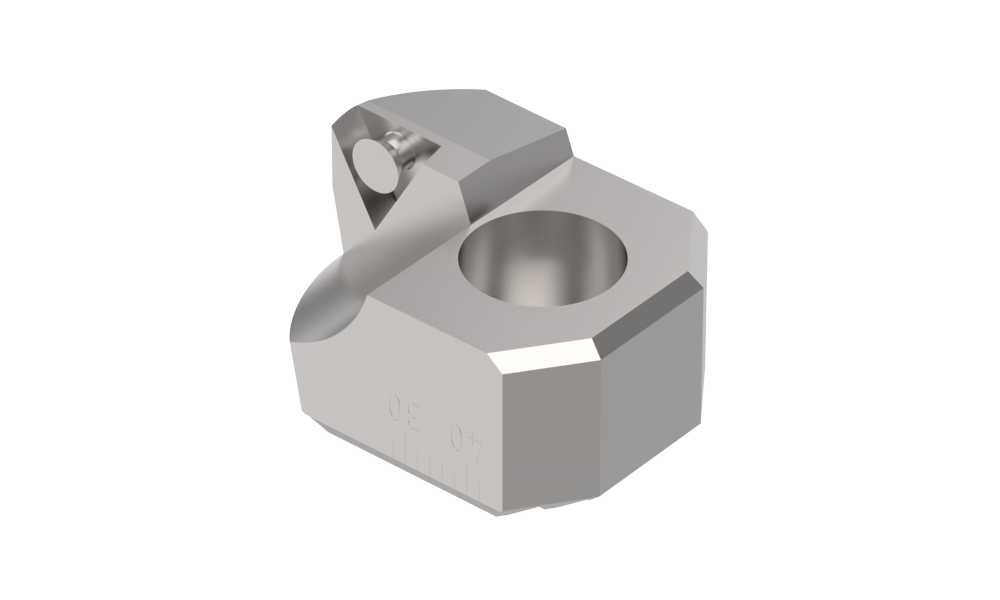

$Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Finish Machining\236022\236022_Angle.png$	236022 (Qty1) Insert Holder F20 FROM 29MM 91

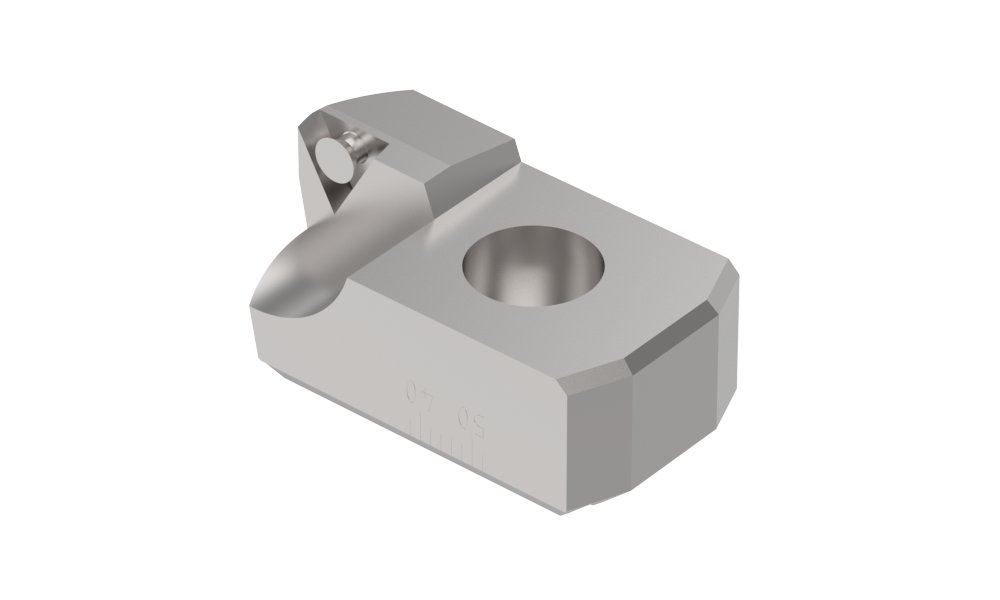

$Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Finish Machining\236024\236024_Angle.png$	236024 (Qty1) Insert Holder F20 FROM 40MM 91

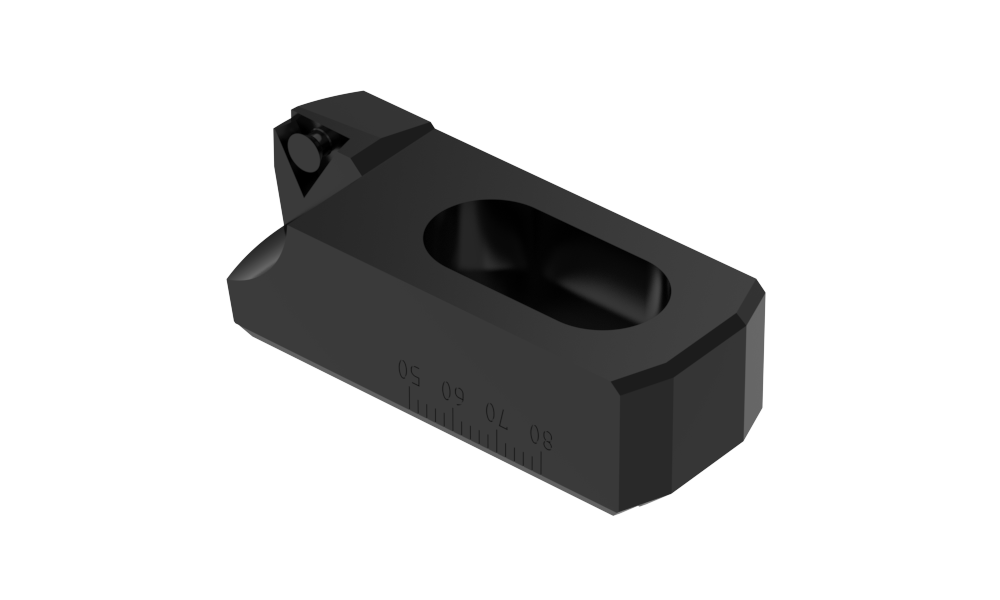

$Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Finish Machining\236026\236026_Angle.png$	236026 (Qty1) Insert Holder F20 FROM 52MM 91

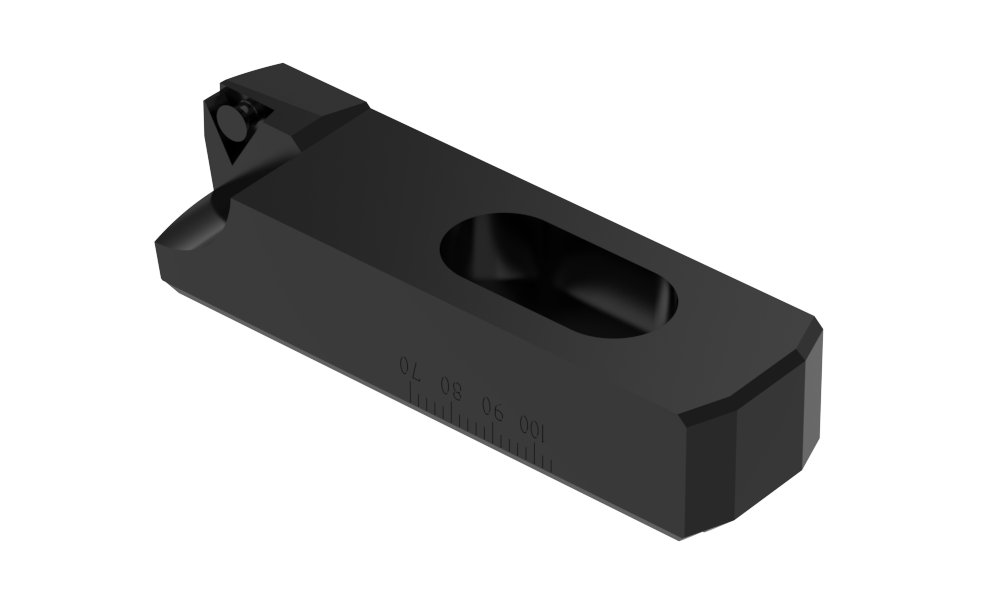

$Wohlhaupter\Insert and Tool Holders\Insert Holders for Boring\Finish Machining\236028\236028_Angle.png$	236028 (Qty1) Insert Holder F20 FROM 76MM 91
$Wohlhaupter\Accessories and Spare Parts\Clamping Pieces\236020\236020_Angle.png$	236020 (Qty1) Clamping Piece CLAMPING ASSEMBLY
	115575 (Qty1) Service Key S2.5
	215403 (Qty1) Service Key S4
	215521 (Qty1) Service Key S5
	115591 (Qty1) Service Key TORX DRIVER - T7

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	14.33
Weight in kg (each)	6.51
Category	Stocked
