097899WHT10

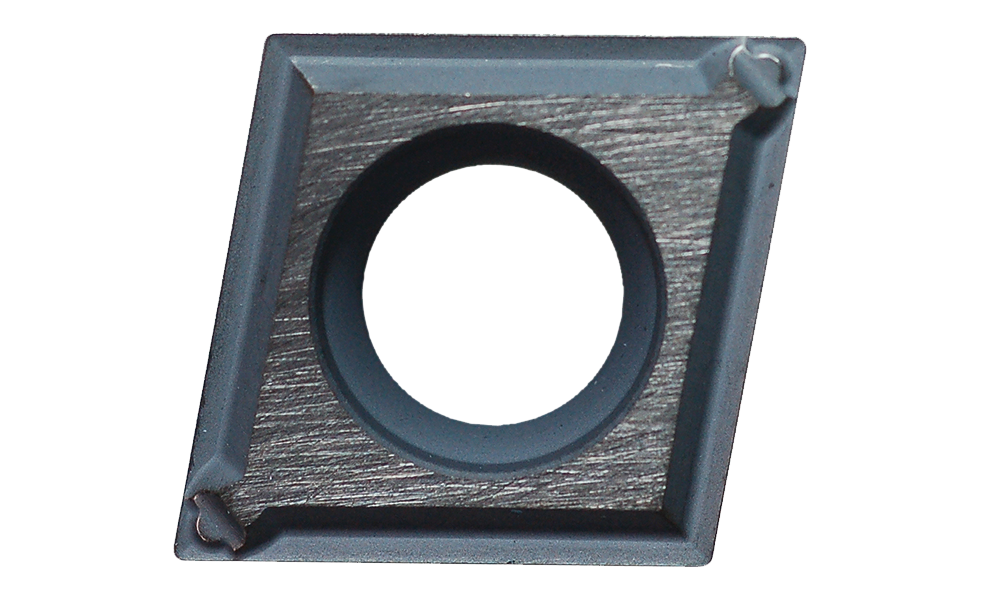

Wohlhaupter® Turning Boring Insert: Form 101, WHT10 Uncoated Cermet
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F101 02MN122 WHT10
Insert Form 101
Corner Radius (inch) 0.008
Corner Radius (mm) 0.20
Tolerance Group M
Machining Direction CW or CCW
Geometry 122
Grade WHT10
Material Cermet
Coating Uncoated
Wiper Geometry No
Number of Useable Edges 2
Insert ANSI Designation CCMT21.51
Insert ISO Designation CCMT060201
Machining Conditions Continuous Cut
Finishing Primary P
Finishing Secondary K | N
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.002
Weight in kg (each) 0
Category Stocked
