TSN-3341-8F150M
AccuThread 856® Indexable Threadmill Holder: Pin & Screw, 8 Flute, Positive, Shell Mill Shank
AccuThread® 856 Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

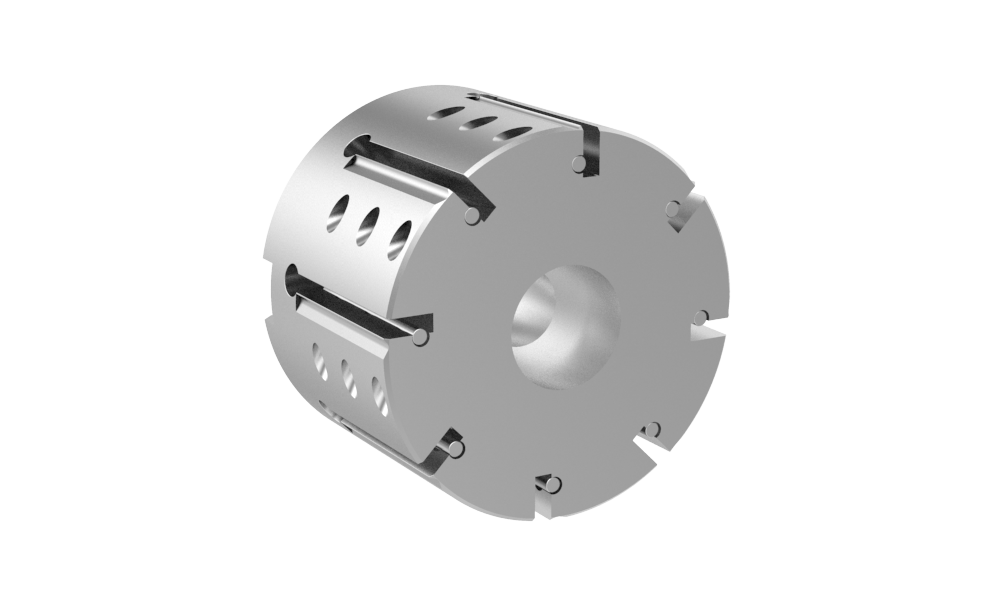

Angle

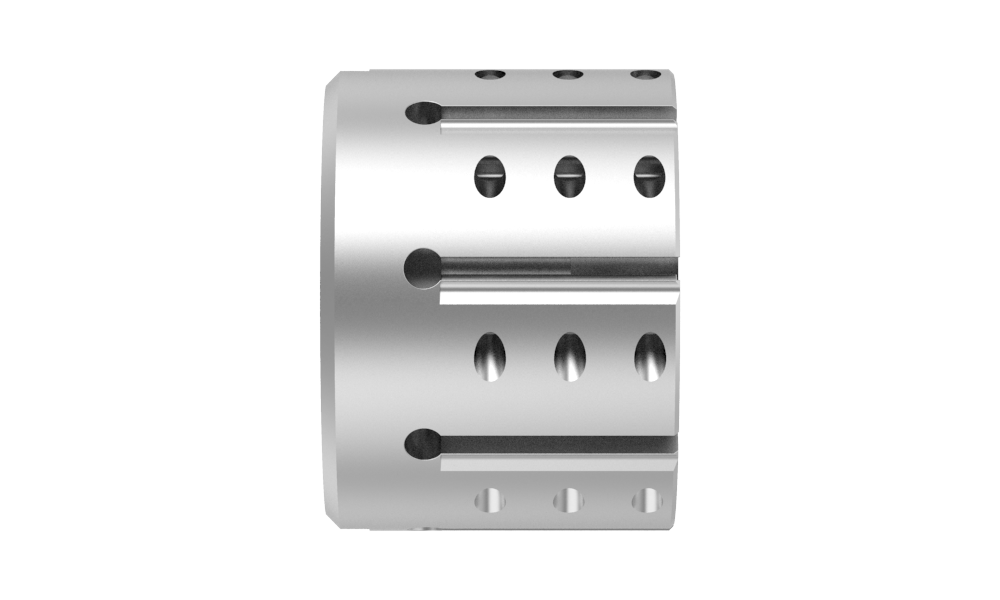

Side
Product Specifications
Form Type Straight or Tapered
Geometry Positive
Number of Flutes 8
Cutter Diameter (mm) 81.48
Oversize Cutter Diameter (mm) 84.84
Overall Length (mm) 57.15
Insert Length (mm) 38.1
Insert Prefix TN150K-
Shank Type Shell Mill
Type of Product Indexable Threadmill Holder
Related Items
ImageNotAvailable.png 3/32" Hex Key (Qty0)
Insert Screw Driver
Threadmills\Accessories\Pin\Pin_Angle.png TMP-2 (Qty0)
Replacement Pin
TM PIN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 5.235
Weight in kg (each) 2.38
Category Stocked
