TMAK0438-20

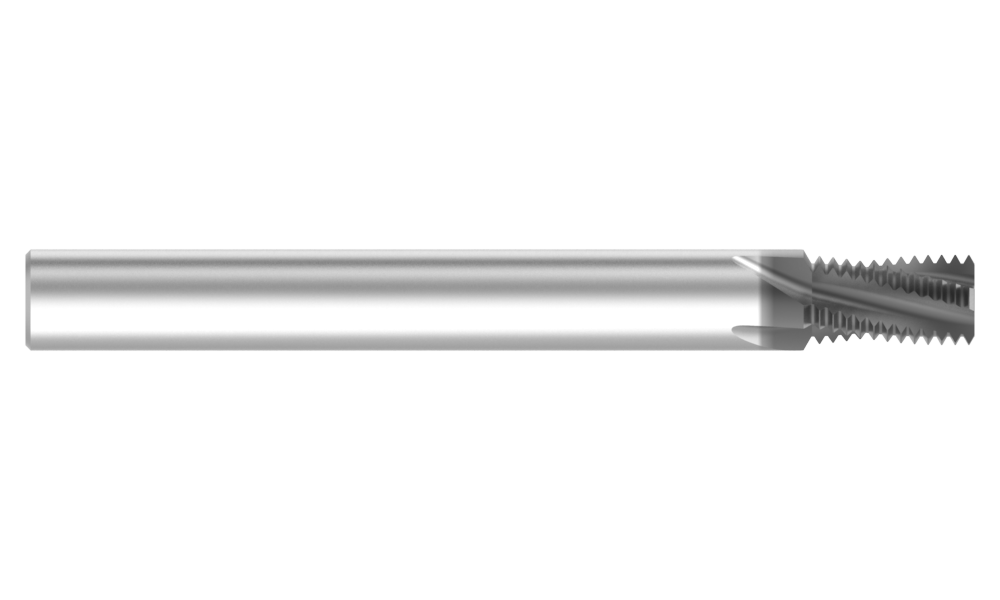

AccuThread 856® Solid Carbide Threadmill: UN 20, 7/16", Helical 4 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3.5
Shank Diameter (inch) 0.375
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard UN
Minimum Thread Size 7/16"
Pitch 20
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.335
Length of Cut (inch) 0.6
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.18
Weight in kg (each) 0.08
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.021 lbs
Recycleable? Yes
Contains PFAS? No
