TM8NPTFCHM
ThreadMills USA® Solid Carbide Threadmill: NPTF 8, 2-1/2", Helical 5 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

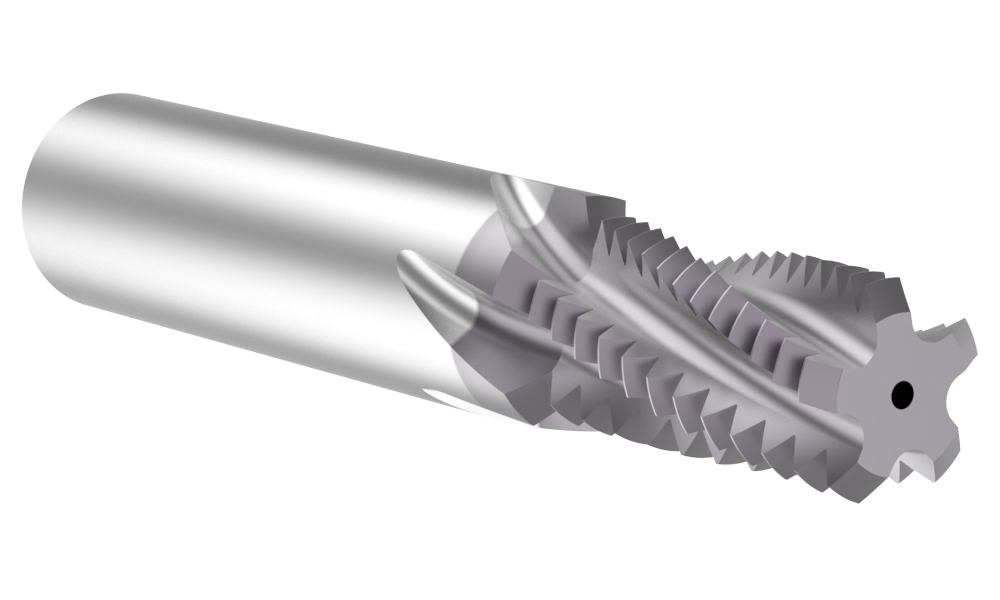

Angle

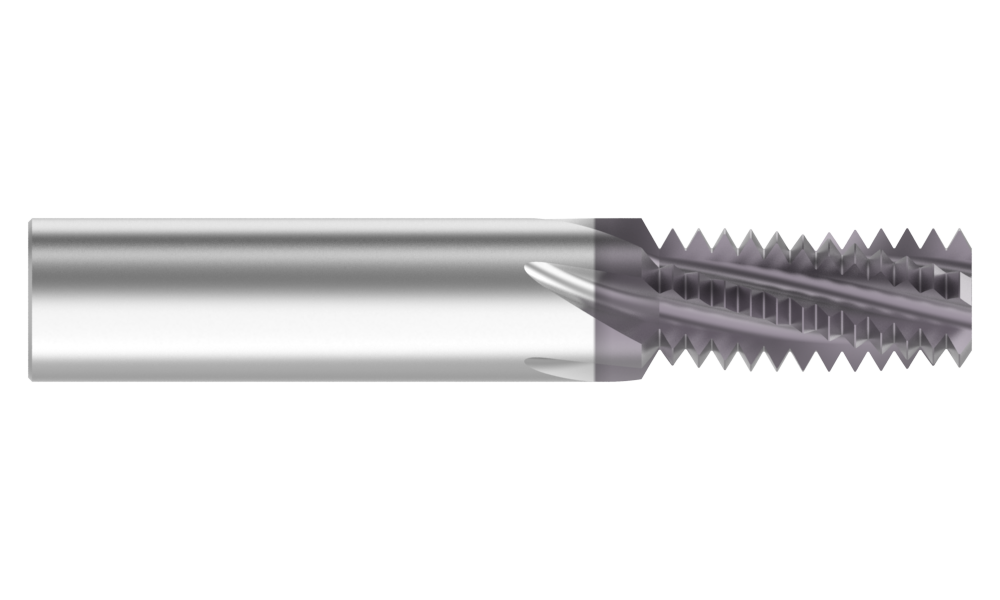

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (mm) 115
Shank Diameter (mm) 20
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 2-1/2"
Pitch 8
Number of Flutes 5
Thread Style Internal/External
Cutter Diameter (mm) 19.75
Length of Cut (mm) 38.1
Coolant Through Yes
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.89
Weight in kg (each) 0.4
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.019 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.038 lbs
Recycleable? Yes
Contains PFAS? No
