TM19024M-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 24, #10, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

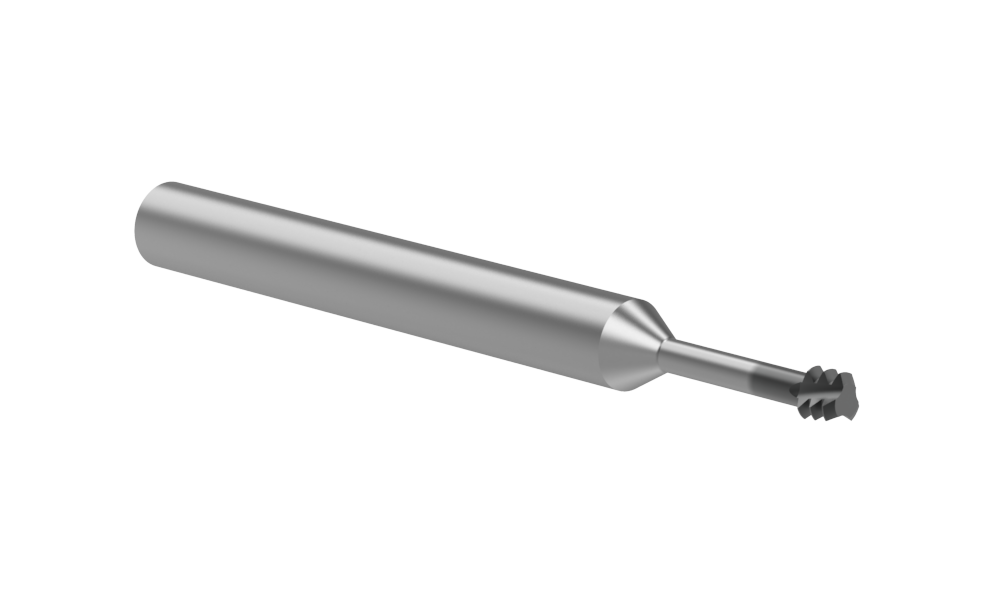

Angle

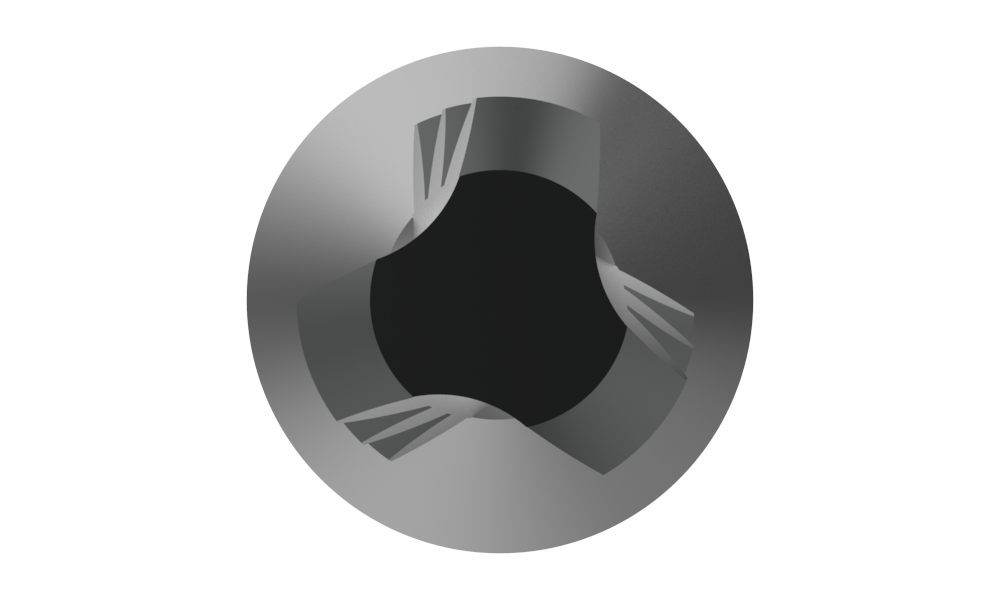

Front

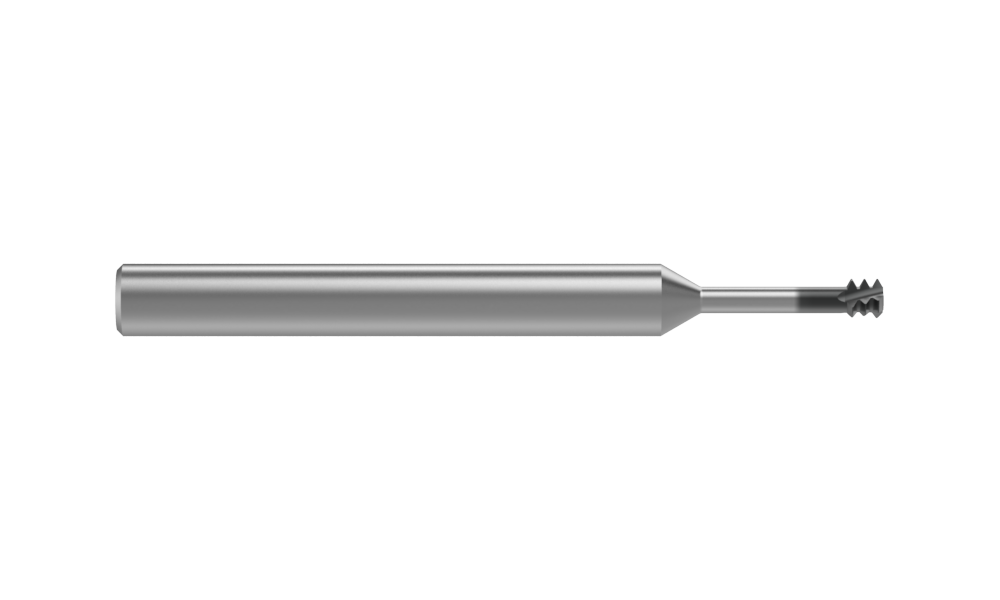

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat (Yes/No) No
Material Carbide
Overall Length (mm) 63.00
Pitch 24
Number of Flutes 3
Coating AM210®
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size #10
Cutter Diameter (mm) 3.51
Length of Cut (mm) 14.99
Shank Diameter (mm) 6.00
Flute Type Helical
Cutting Direction Left Hand (M04)
Thread Standard UN
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
Packaging Information
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.008 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.007 lbs
Recycleable? Yes
Contains PFAS? No
