AS5202-080-075F
AccuPort 432® Replaceable Port Form Body: SAE AS5202, -8, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

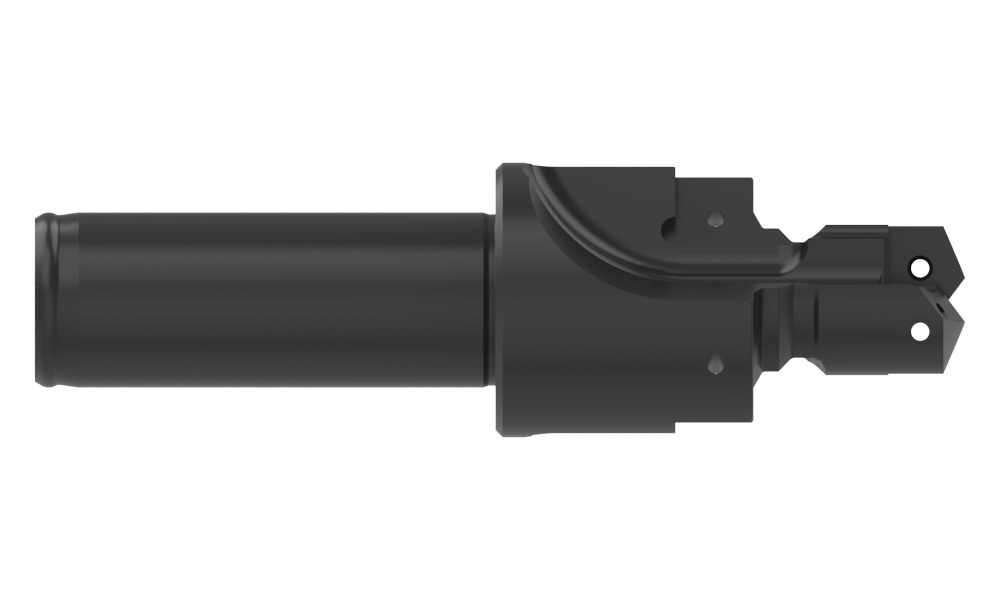

Front

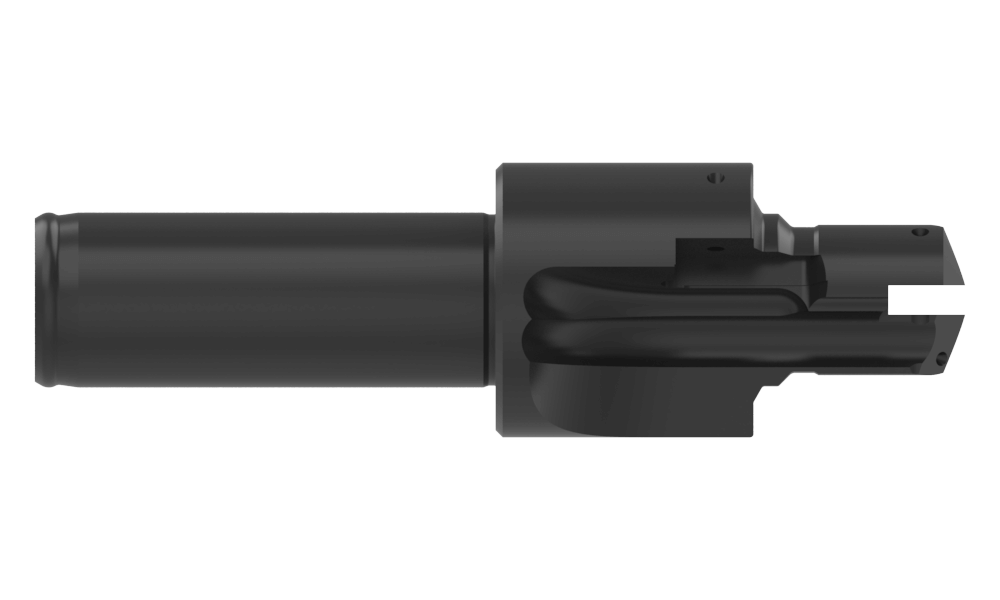

Top
Product Specifications
Specification SAE
Port Standard AS5202
Tube Size -8
Series 0
Spotface Diameter (inch) 1.1981
Flute Type Straight
Overall Length (inch) 3.979
Tool Reference Length (inch) 2.117
Body Length (inch) 2.010
Step Length (inch) 0.849
Shank Type Cylindrical
Shank Diameter (inch) 3/4
Shank Length (inch) 1.969
Pipe Tap Rear (inch) 1/8 NPT
Type of Product Indexable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.48
Weight in kg (each) 0.22
Category Stocked
