25010H-25FM
T-A® Replaceable Drill Body: 17.53 mm - 24.40 mm, Extended, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

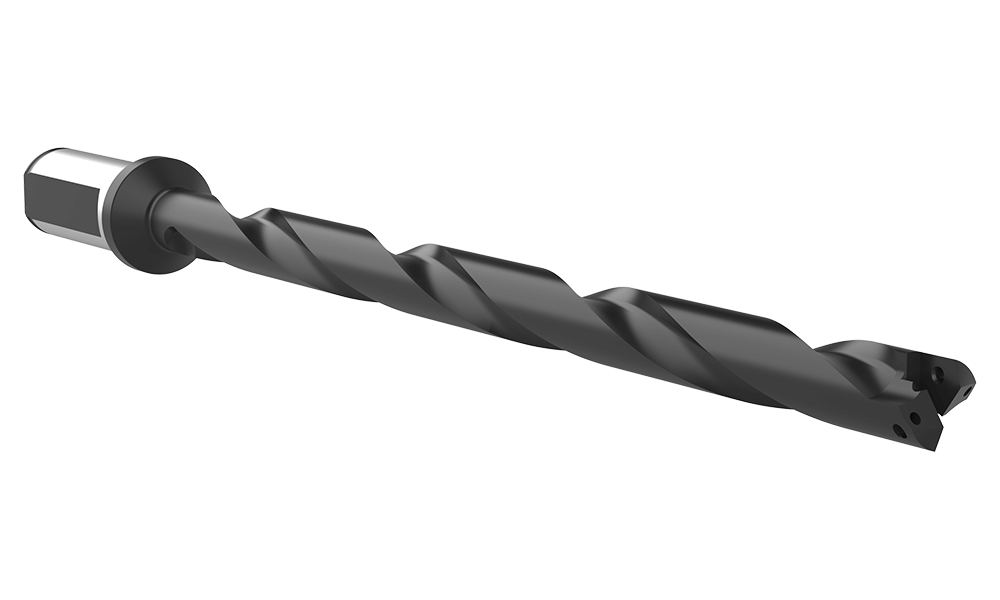

Angle

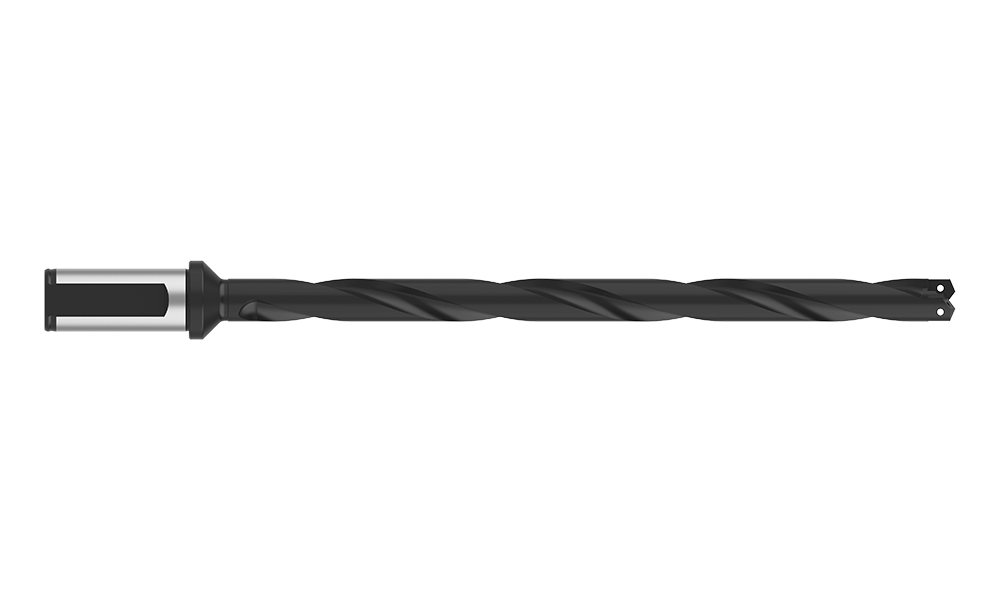

Front

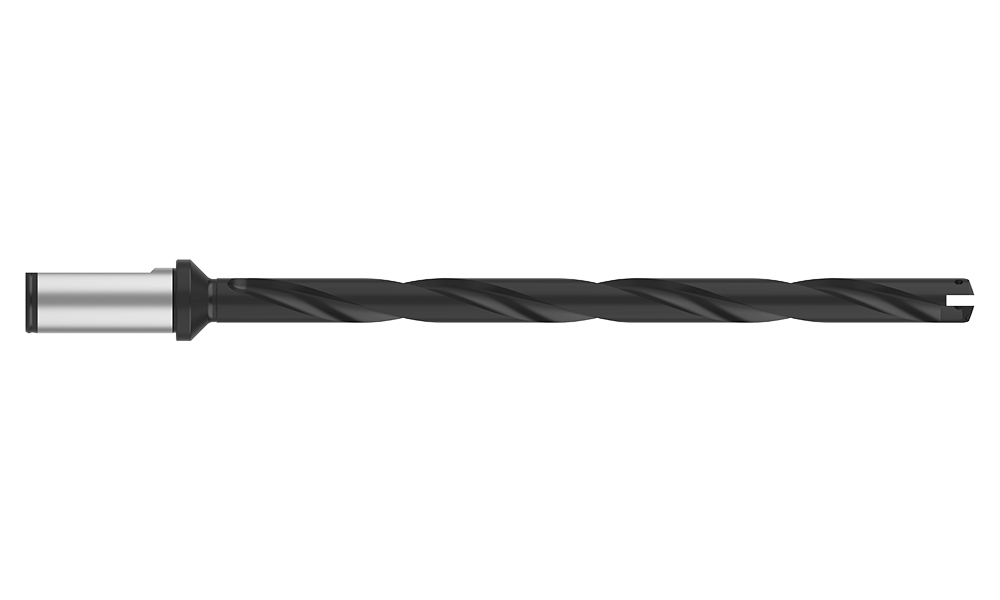

Side
Product Specifications
Series 1
Minimum Diameter (mm) 17.53
Maximum Diameter (mm) 24.40
Length Type Extended
Flute Type Helical
Overall Length (mm) 363.2
Tool Reference Length (mm) 310.7
Body Length (mm) 307.2
Drill Depth (mm) 285.2
Shank Type Flanged
Shank Diameter (mm) 25
Shank Length (mm) 56.0
Pipe Tap Rear (inch) 1/8
Pipe Tap Rear (mm) 1/8 BSPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.41
Weight in kg (each) 0.64
Category Stocked
