23025H-004M
T-A® Replaceable Drill Body: 30.16 mm - 35.06 mm, Intermediate, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

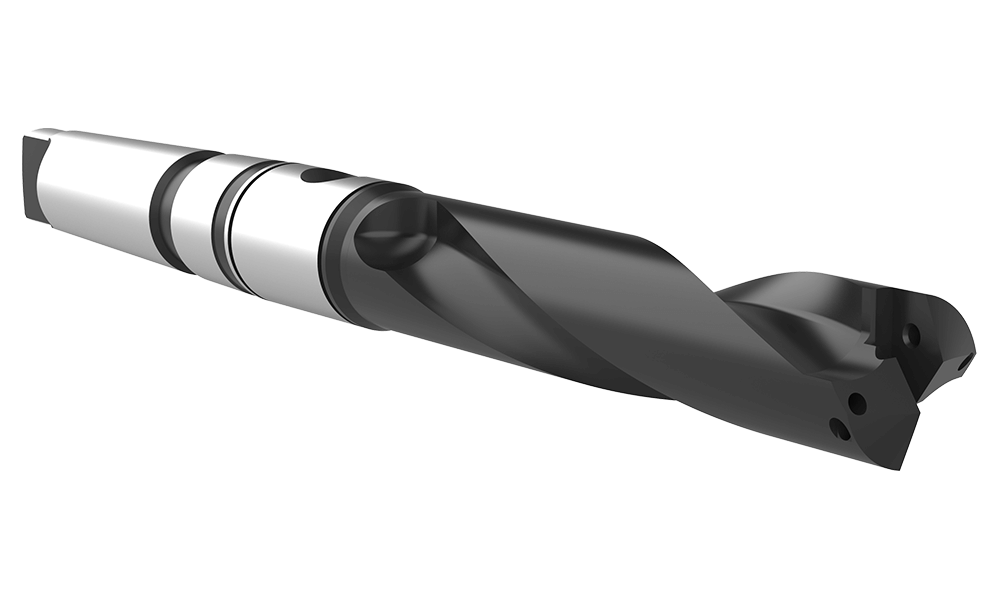

Angle

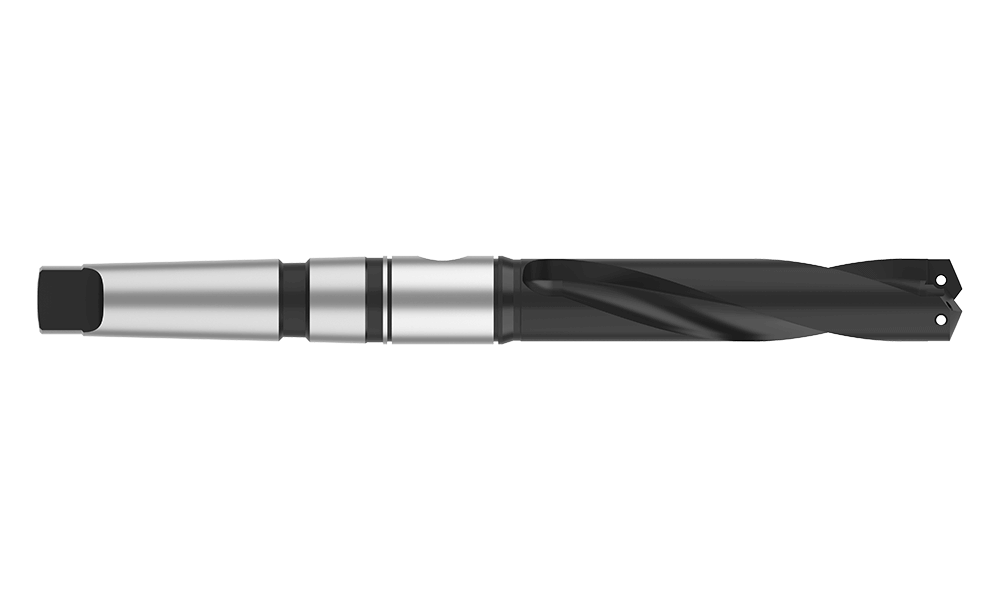

Front

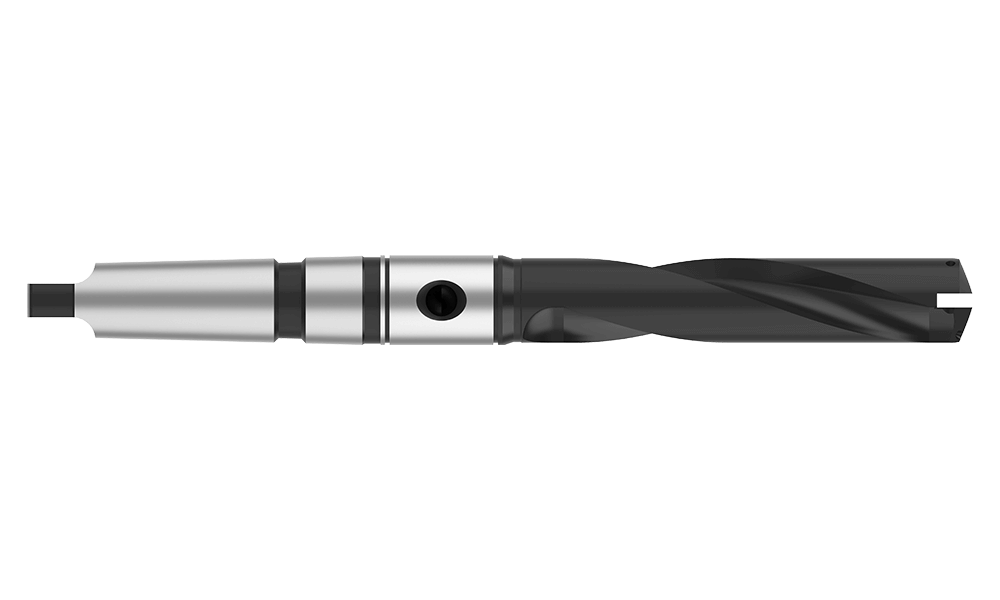

Side
Product Specifications
Series 2
Sub-Series .5
Minimum Diameter (mm) 30.16
Maximum Diameter (mm) 35.06
Length Type Intermediate
Flute Type Helical
Overall Length (mm) 331.8
Tool Reference Length (mm) 217.9
Body Length (mm) 165.1
Drill Depth (mm) 146.8
Shank Type Morse Taper
Shank Diameter (mm) #4 MT ISO
Pipe Tap Side (inch) 1/4
Pipe Tap Side (mm) 1/4 BSPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.14
Weight in kg (each) 1.43
Category Stocked
