15YA-0013-SP
T-A® Replaceable Drill Insert: 0.4063" (10.32 mm), Spot And Chamfer Geometry, TiAlN
T-A® Insert

Add to cart image Add to list image







See Additional Technical Information
Default Image

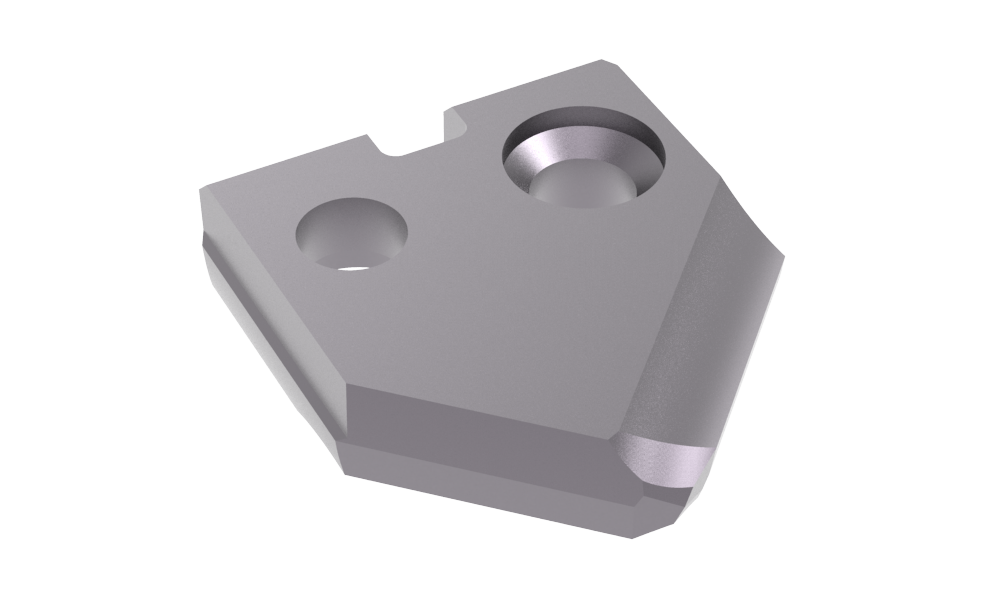

Angle

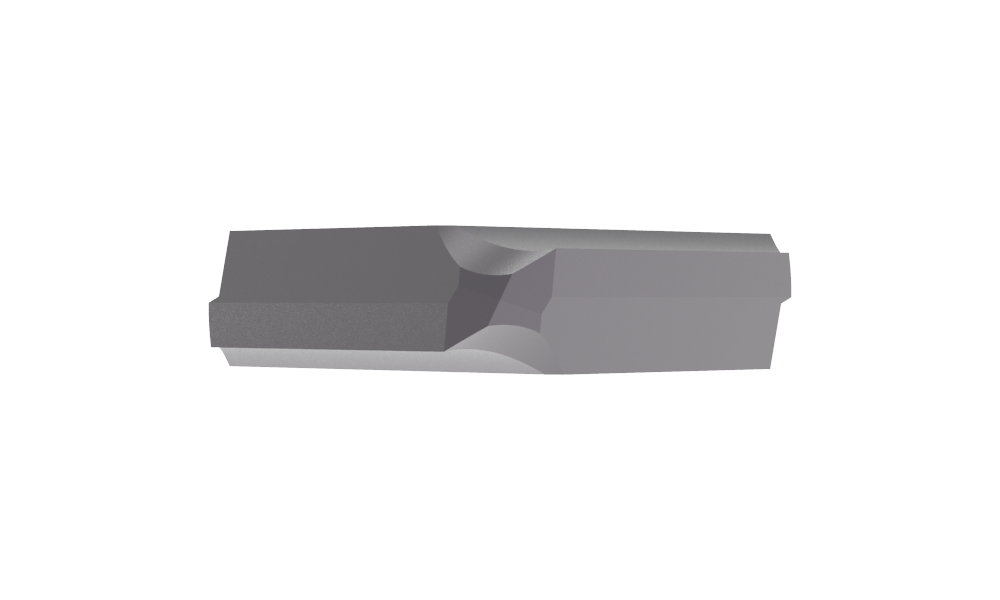

Front

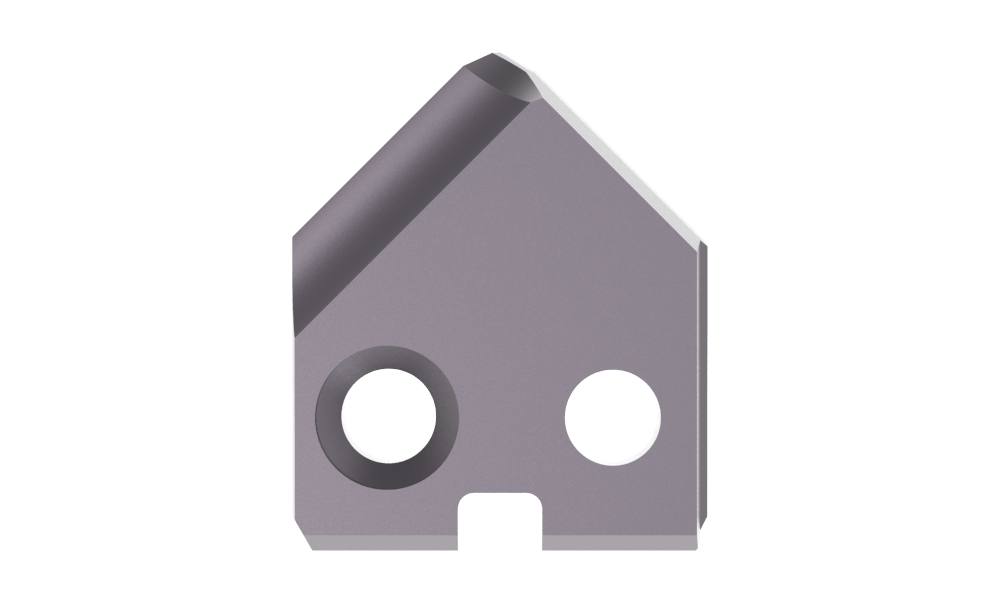

Top
Product Specifications
Series Y
Diameter Fractional Equivalent 13/32"
Diameter inch 0.4063
Diameter mm 10.32
Geometry Spot And Chamfer
Material High-Speed Steel
Grade Super Cobalt
Coating TiAlN
Included Angle 90°
Thickness inch 3/32"
Type of Product Replaceable Drill Insert
Product Application General Purpose
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.003
Weight in kg (each) 0
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
