1500FCH
Criterion® Boring Bar: 9.093" Min Ø, Steel
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

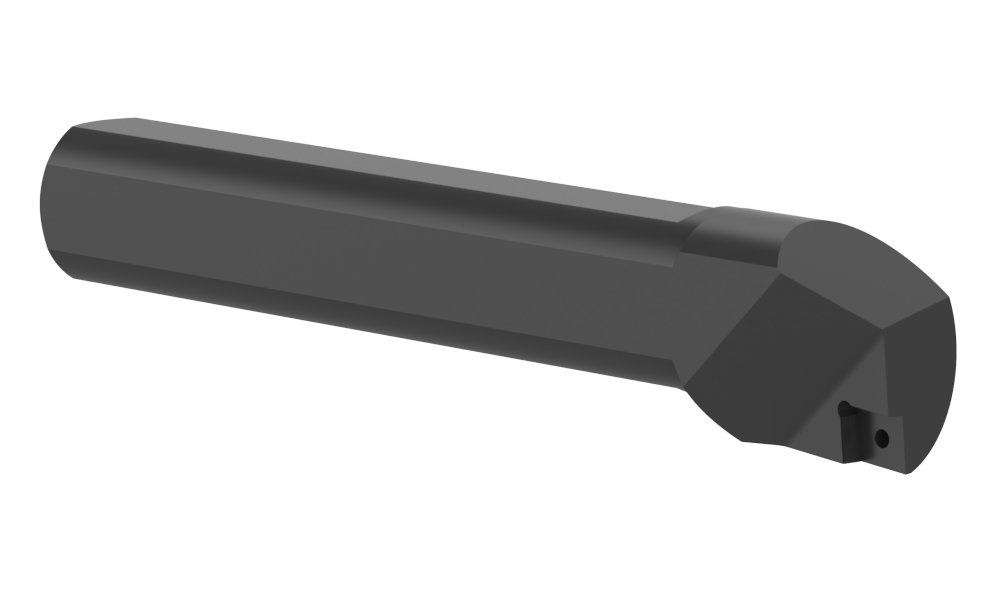

Angle

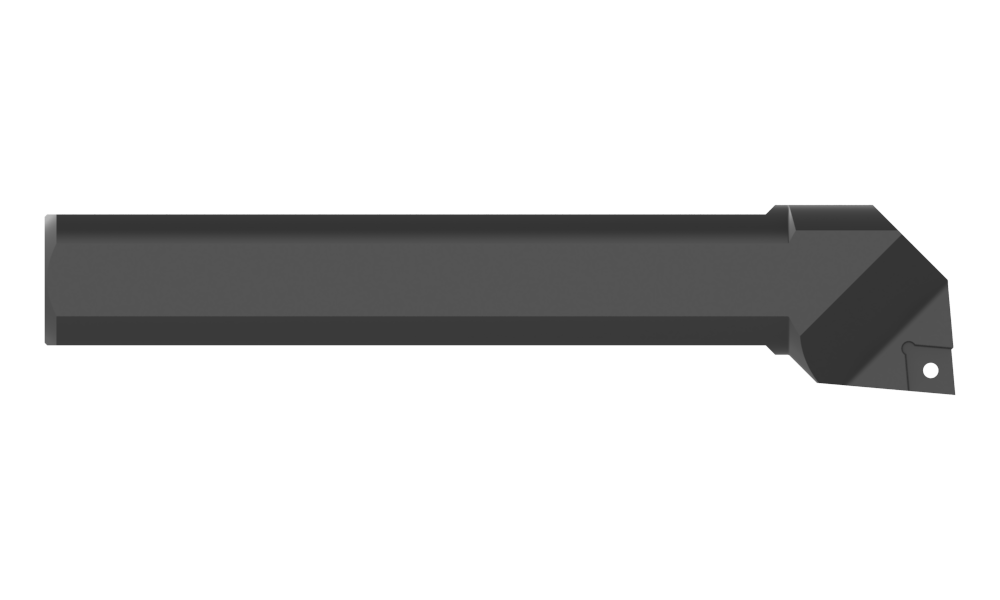

Side
Product Specifications
Type of Product Boring Bar
Style Cross Hole
IC Size (inch) .500
Insert Thickness (inch) .188
Material Steel
Maximum Diameter (inch) 21.500
Minimum Diameter (inch) 9.093
Number of Flats 4
Overall Length (inch) 9.00
Shank Diameter (inch) 1.500
Shape CC
Width across Flats (inch) 1.310
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.2
Weight in kg (each) 1.91
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.229 lbs
Recycleable? Yes
Contains PFAS? No
