1000ECH
Criterion® Boring Bar: 5.625" Min Ø, Steel
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

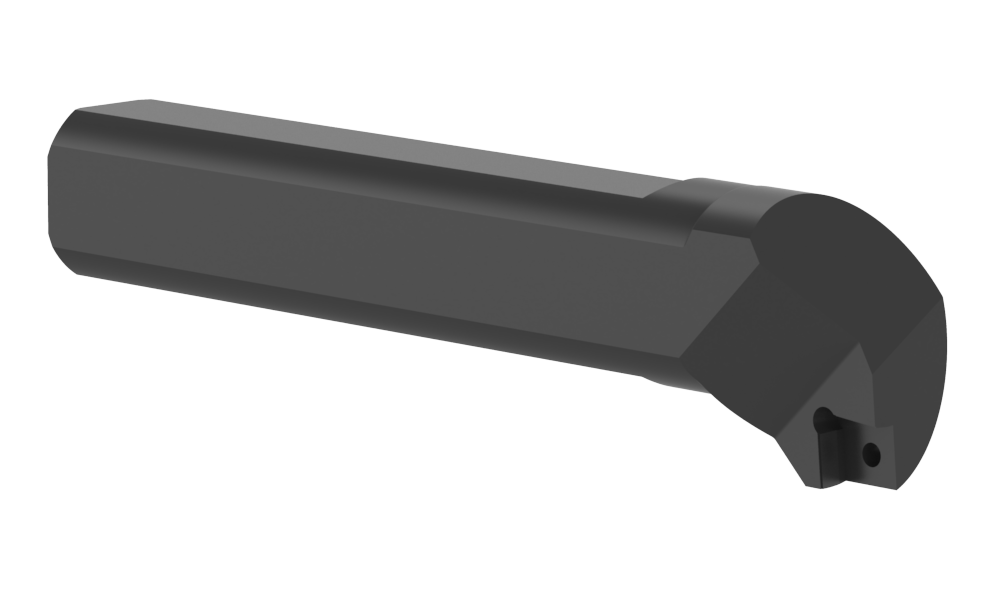

Angle

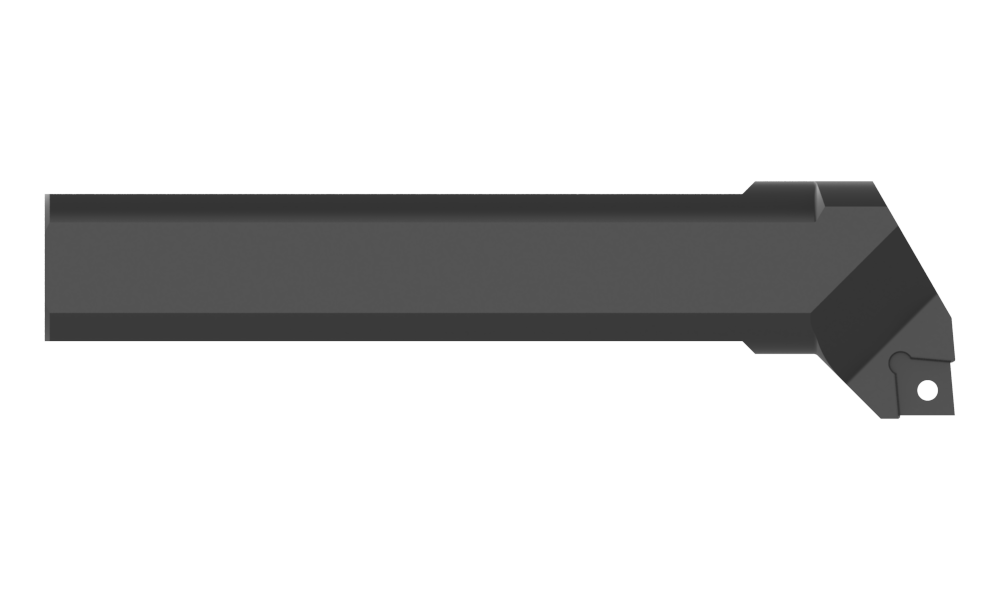

Side
Product Specifications
Type of Product Boring Bar
Style Cross Hole
IC Size (inch) .375
Insert Thickness (inch) .156
Material Steel
Maximum Diameter (inch) 13.437
Minimum Diameter (inch) 5.625
Number of Flats 4
Overall Length (inch) 5.31
Shank Diameter (inch) 1.000
Shape CC
Width across Flats (inch) .850
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.04
Weight in kg (each) 0.47
Category Stocked
