0200HA
Criterion® Boring Bar: .200" (5.08 mm) Min Ø, Carbide, TiAlN
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

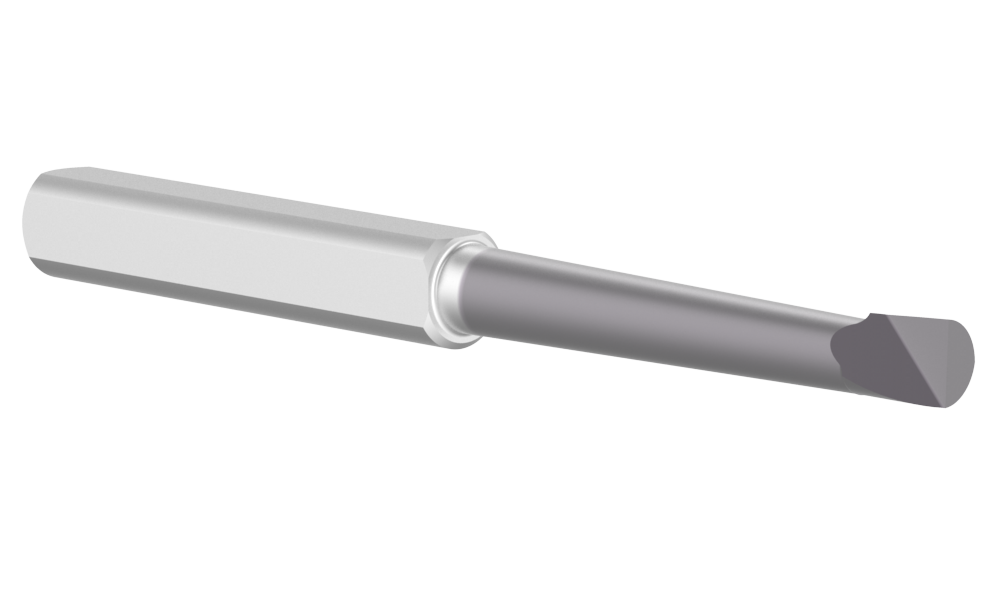

Angle

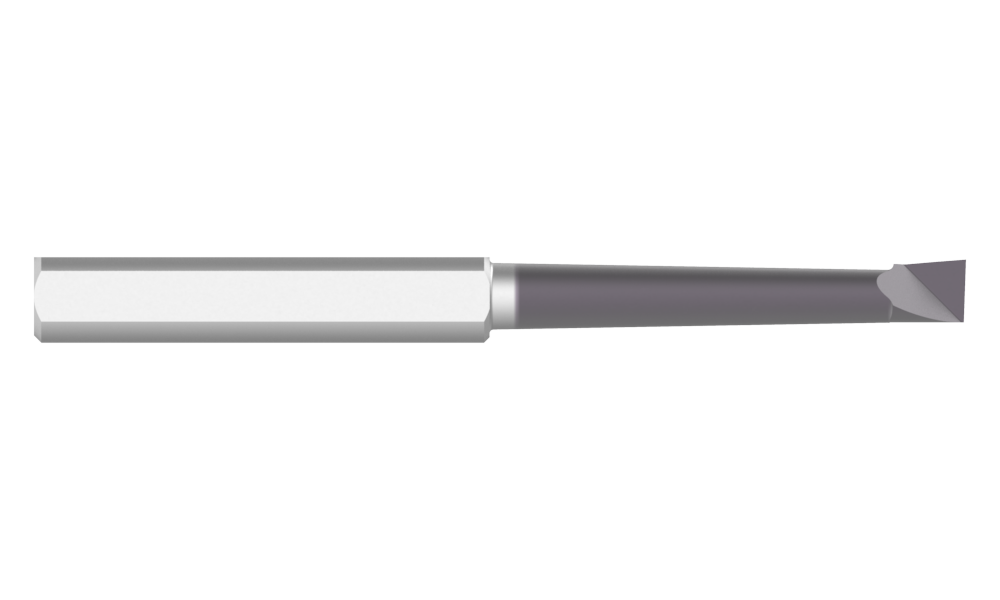

Side
Product Specifications
Type of Product Boring Bar
Material Carbide
Max Bore Depth (mm) 31.75
Max Bore Depth (inch) 1.250
Minimum Diameter (inch) .200
Minimum Diameter (mm) 5.08
Number of Flats 2
Overall Length (inch) 2.500
Overall Length (mm) 63.50
Shank Diameter (mm) 6.35
Shank Diameter (inch) .250
Coating TiAlN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.054
Weight in kg (each) 0.02
Category Stocked
