Deep Hole Drilling Guidelines

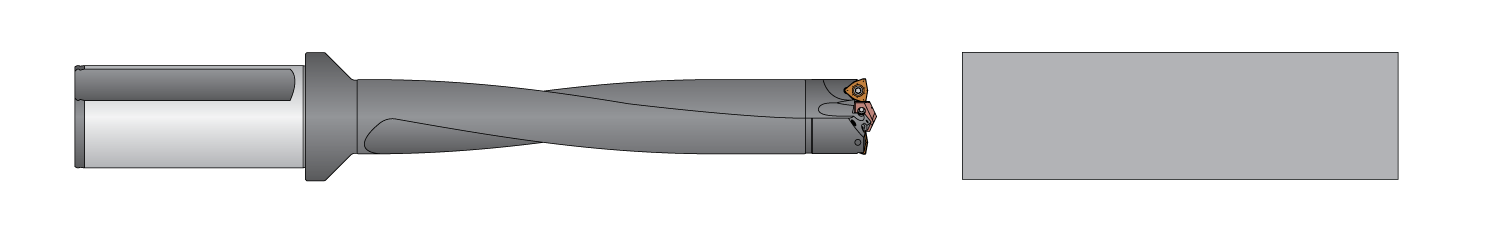

Step 1: Approach
  • 50 RPM max
  • 12 IPM (300 mm/min)
Details:
  • Feed the longer drill within 1/16" (1.5mm) short of the workpiece at a maximum of 50 RPM and 12 IPM (300 mm/min) feed rate.
Coolant: OFF

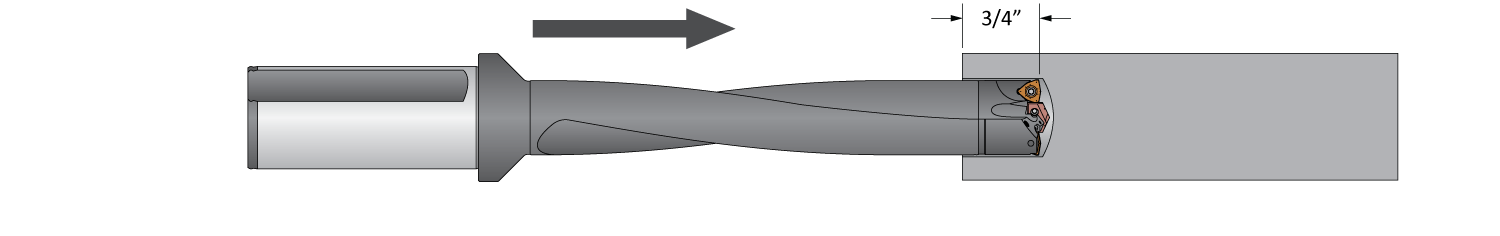

Step 2: Feed-In
  • Speed at 75% of recommended start
  • Feed at 50% of recommended start
Details:
  • Drill 3/4" deep at 75% recommended speed and 50% recommended feed to establish the hole.
Coolant: ON

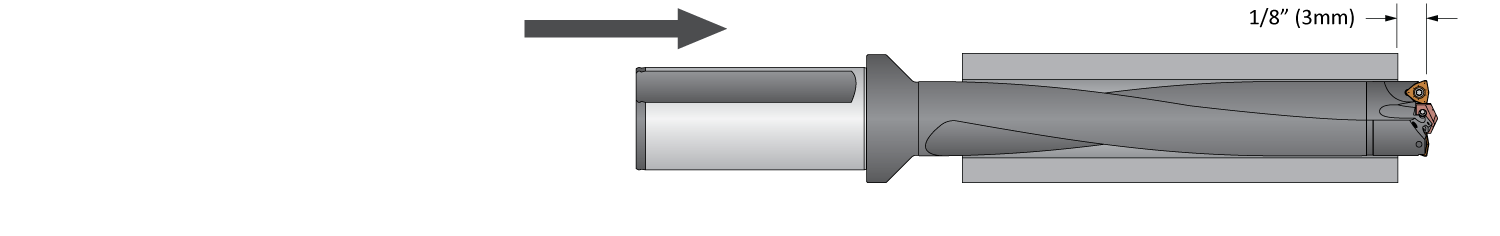

Step 3: Deep Hole Drilling - Blind
  • 100% RPM
  • 100% IPR (mm/rev)
Details:
  • Drill to full depth at recommended speed and feed for longer drills (according to Allied Machine speed and feed charts).

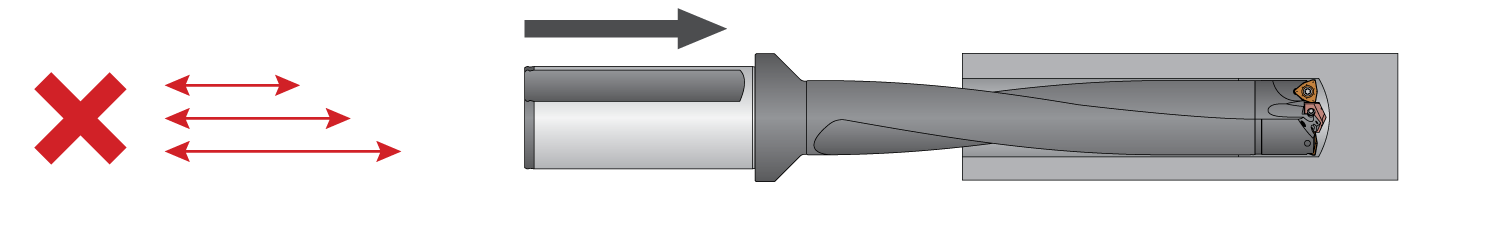

  • No peck cycle recommended.
Coolant: ON
Step 4: Deep Hole Drilling at Breakout
  • 50% RPM
  • 100% IPM (mm/rev)
Details:
For through holes only:
  • Reduce speed by 50% prior to breakout.
  • Do not break out more than 1/8" (3mm) past the full diameter of the drill.
Coolant: ON

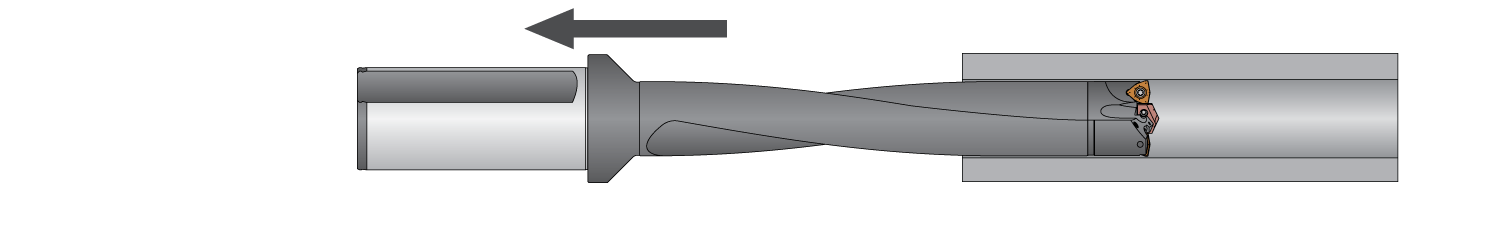

Step 5: Drill Retract
  • 50 RPM max
Details:
  • Reduce speed to a maximum of 50 RPM before retracting from the hole.
Coolant: OFF
Tool failure can cause serious injury. To Prevent: NEVER rotate these tool holders more than 50 RPM without proper engagement with a workpiece or fixture. Failure to do so could result in tool failure and/or personal injury. Factory technical assistance is also available for your specific applications.
This triangle is a safety hazard symbol. It alerts you to potential safety hazards that can cause tool failure and serious injury. When you see this symbol in the catalog, look for a related safety message that may be near this triangle or referred to in the nearby text.
