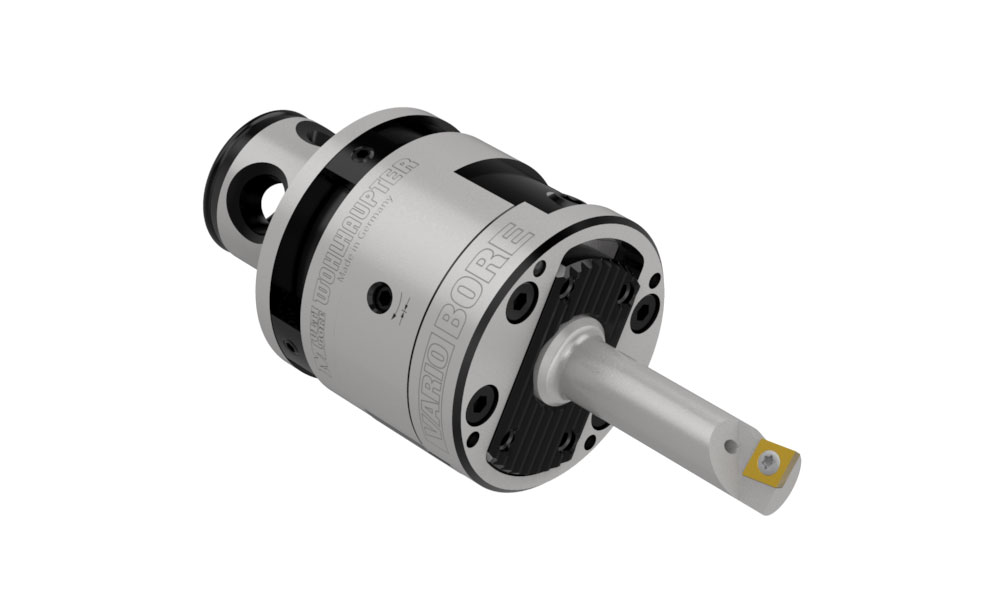

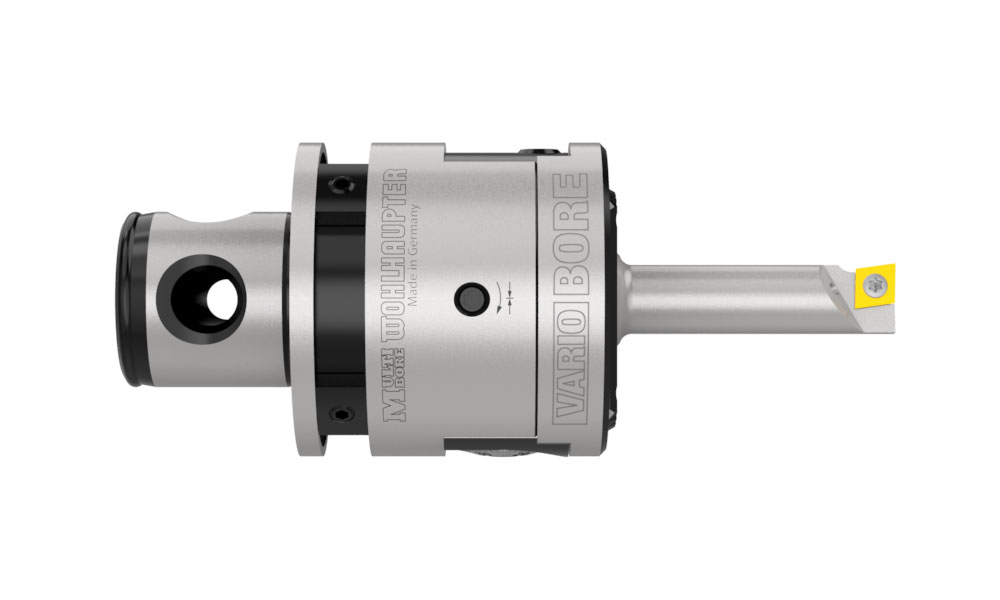

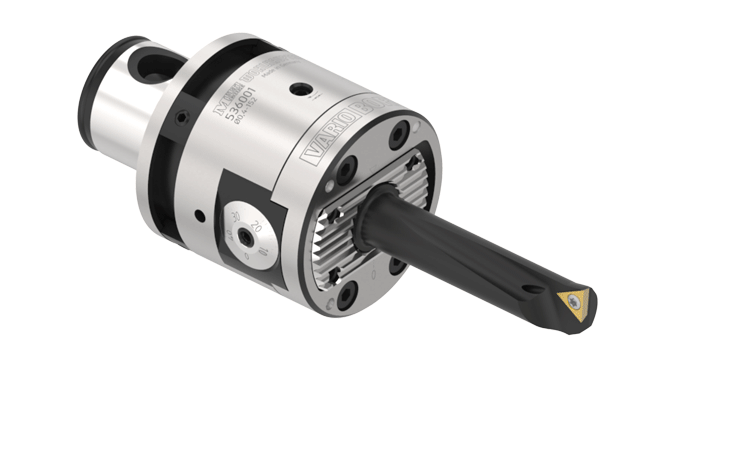

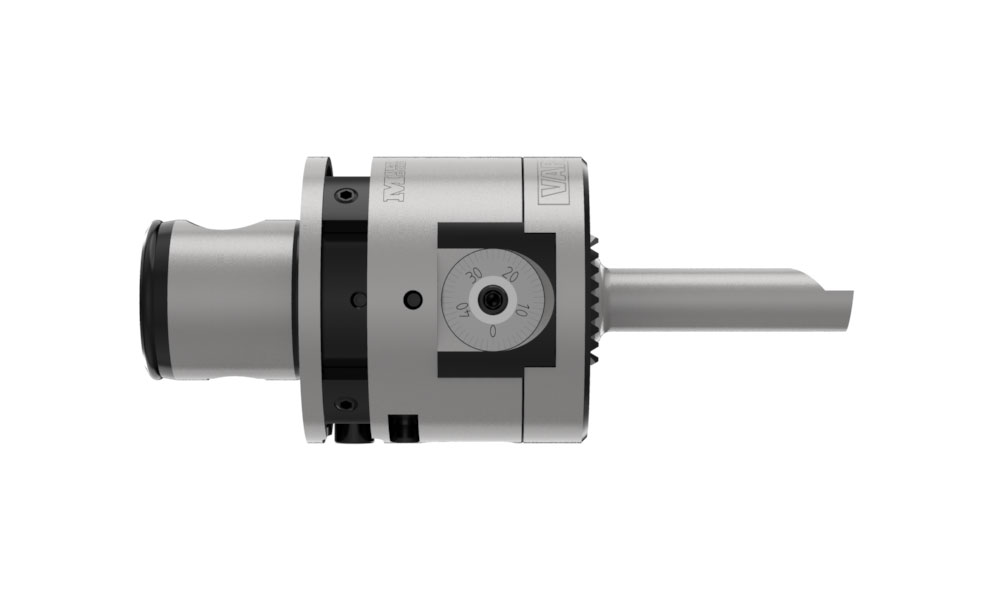

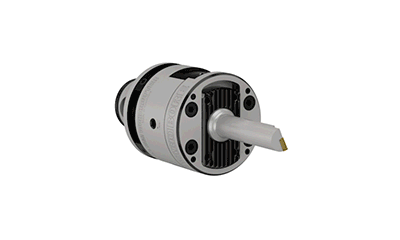

VarioBore Boring Head    360 Icon
The Wohlhaupter® VarioBore head offers precision and versatility, and the 3ETECH docking port provides convenient and simple diameter adjustments.

Watch Video
Advantages

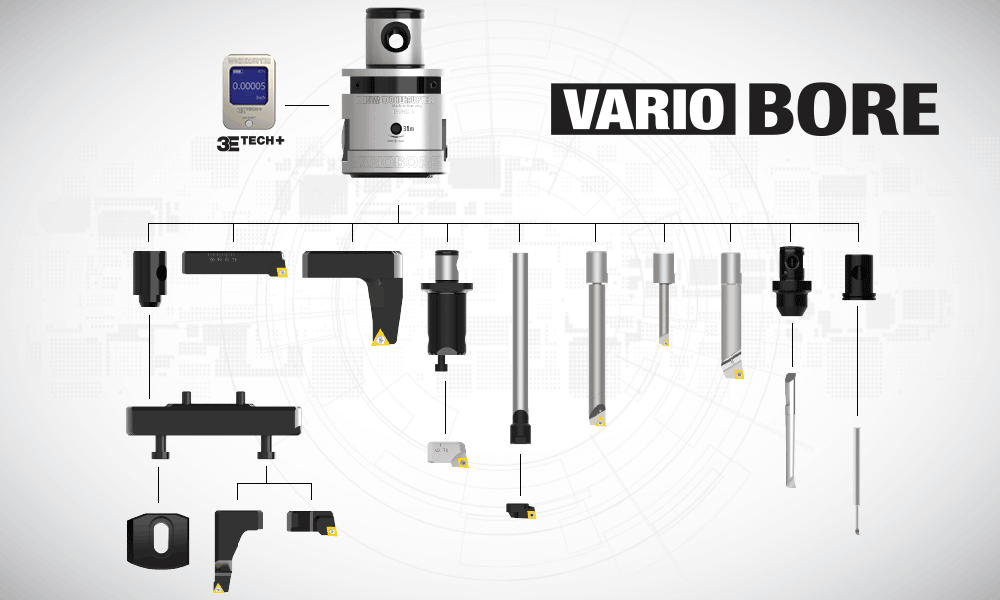

  • Bore multiple hole sizes with a broad range of compatible boring components
  • Ease the stress of working on different day-to-day projects with boring kits

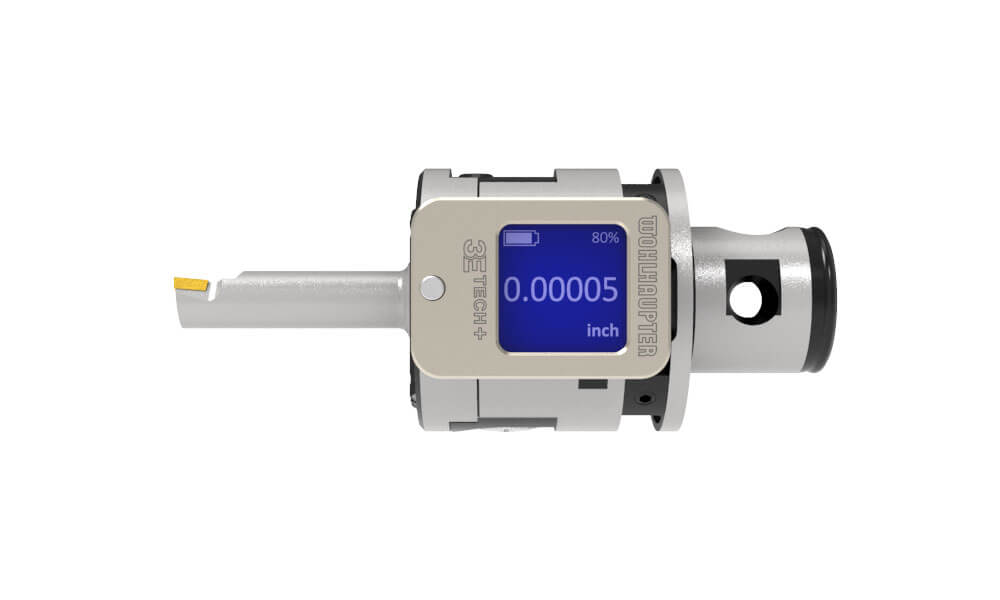

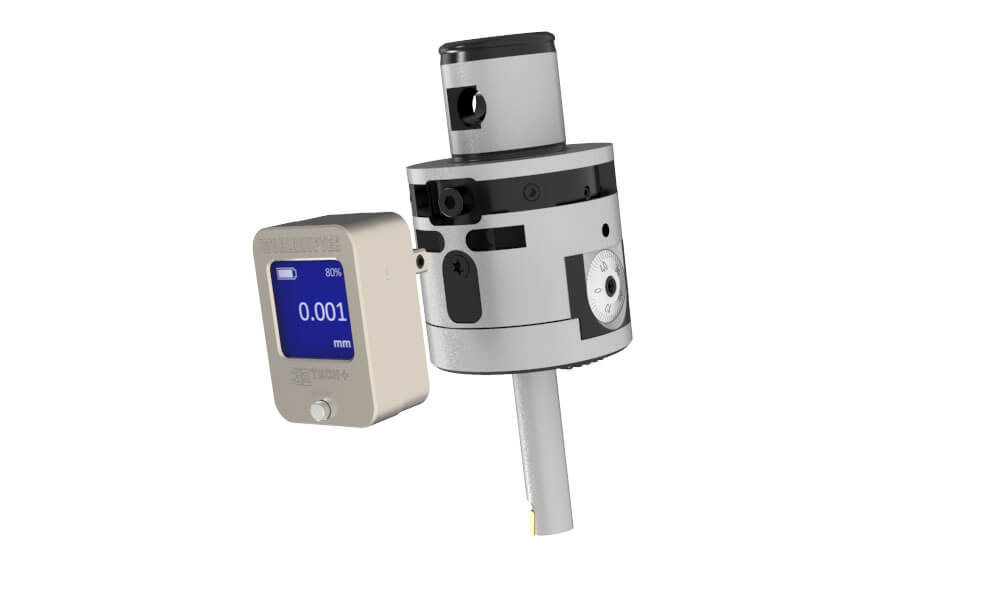

  • 3ETECH module provides a simple digital readout
  • Max spindle speed: 27,500 RPM
Features
  • Diameter range: 0.016" - 5.984" (0.40 mm - 152.00 mm)
  • Offers outside turning capabilities
  • Outside turning diameter range: 0.079" - 2.598" (2.00 mm - 66.00 mm)
  • Boring head is available in analog or digital with the 3ETECH digital readout module
  • Coolant through
  • Adjustment accuracy of 0.0001" or 0.002 mm on diameter
  • WEEE-Reg.-Nr. DE 15820388
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Versatile Boring Heads
Literature Thumbnail

Available Online Only

Recommended Cutting Data
Wohlhaupter Boring Recommended Cutting Data
