3E TECH    360 Icon

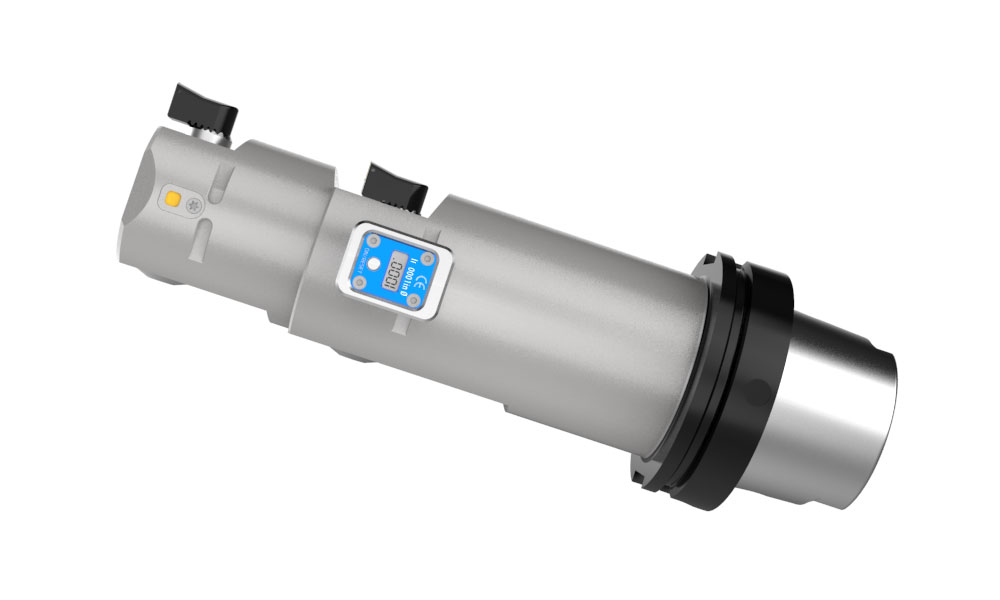

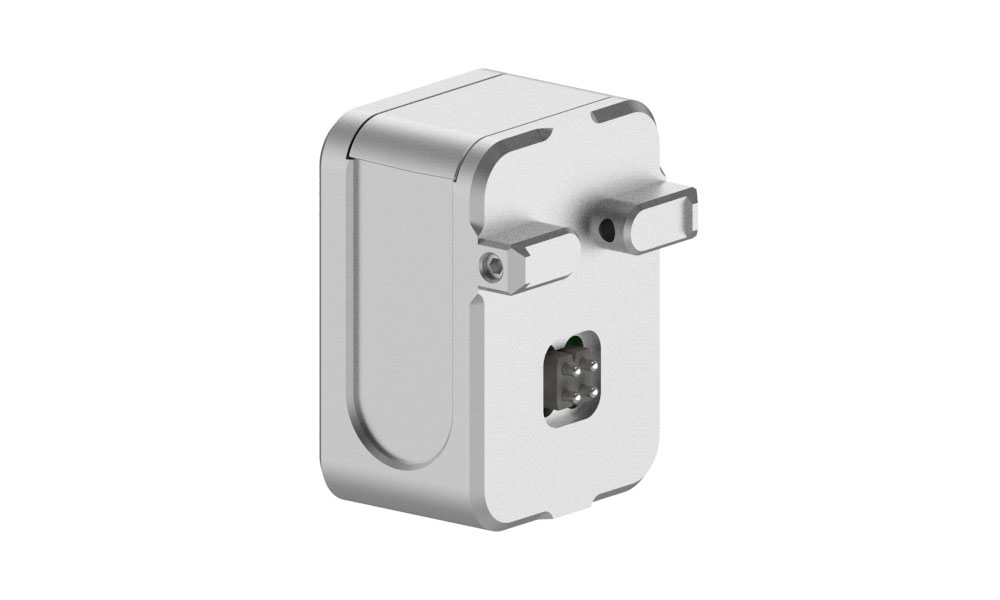

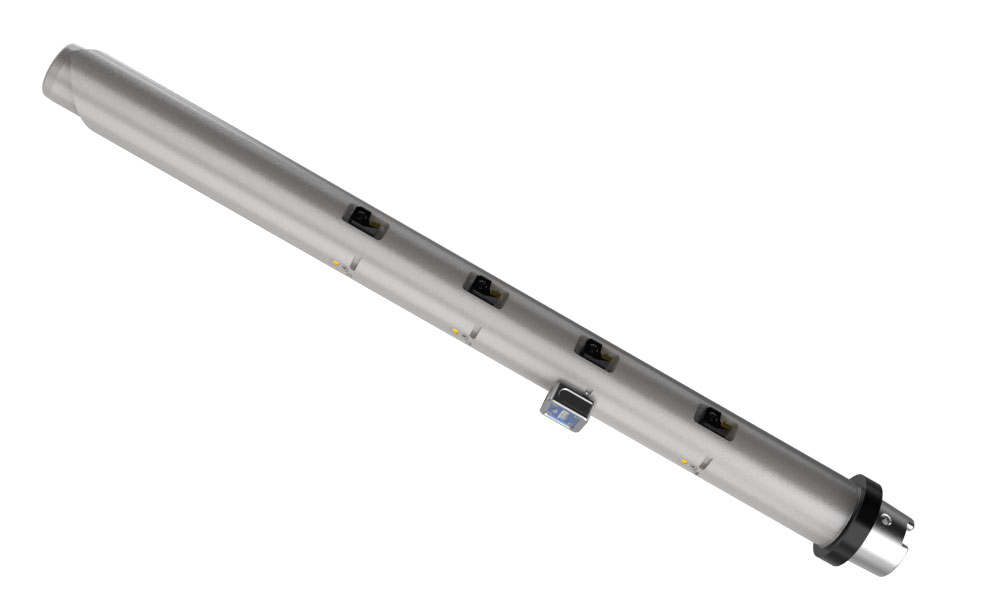

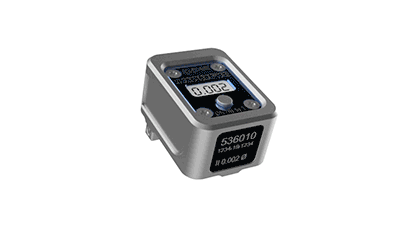

Improve productivity and quality with the Wohlhaupter® 3ETECH external digital readout module. The 3ETECH docks onto boring heads and cassettes that offer the 3ETECH port to make easy diameter adjustments at the machine. Currently, boring tools that offer the 3ETECH docking port include VarioBore538 (537) large diameter finish machining cassettes, 465 (464) balanced fine boring heads, 420 (410) unbalanced fine boring heads, and special boring tools.

If you have a particularly unique or difficult application, give our application engineering team a call.
phone: 330.343.4293 ext: 7611   |   email: appeng@alliedmachine.com
Advantages
  • Make quick and easy micron-accurate diameter adjustments
  • Can be used on VarioBore boring heads, 538 (537) large diameter finish machining cassettes, 465 (464) balanced fine boring heads, 420 (410) unbalanced fine boring heads, and special boring tools equipped with the docking port

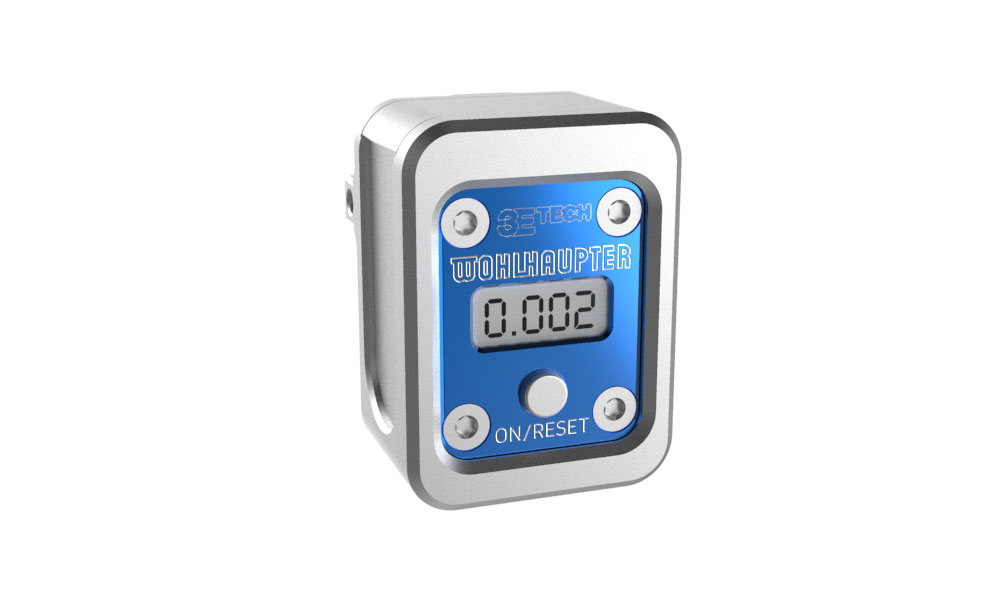

  • Easy-to-read digital display shows exact diameter adjustments
  • Designed to be removed from boring tool before operation (if forgotten 3ETECH will fall off at 500 RPM)
Features
  • Diameter adjustments of 0.0001" (0.002 mm) on diameter
  • Available in imperial and metric
  • Water and dust resistent IP 56
  • Coolant and chip resistant
  • 3ETECH will automatically turn off after 30 seconds of not using
  • WEEE-Reg.-Nr. DE 15820388
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

MultiBore® System Tools
Literature Thumbnail

Literature Order Number: B10-WHL
