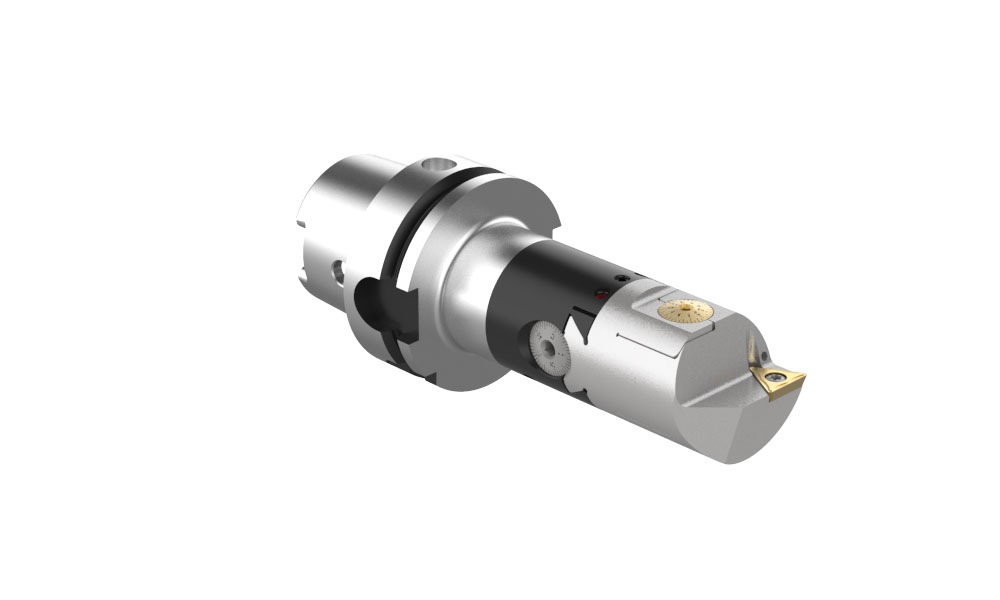

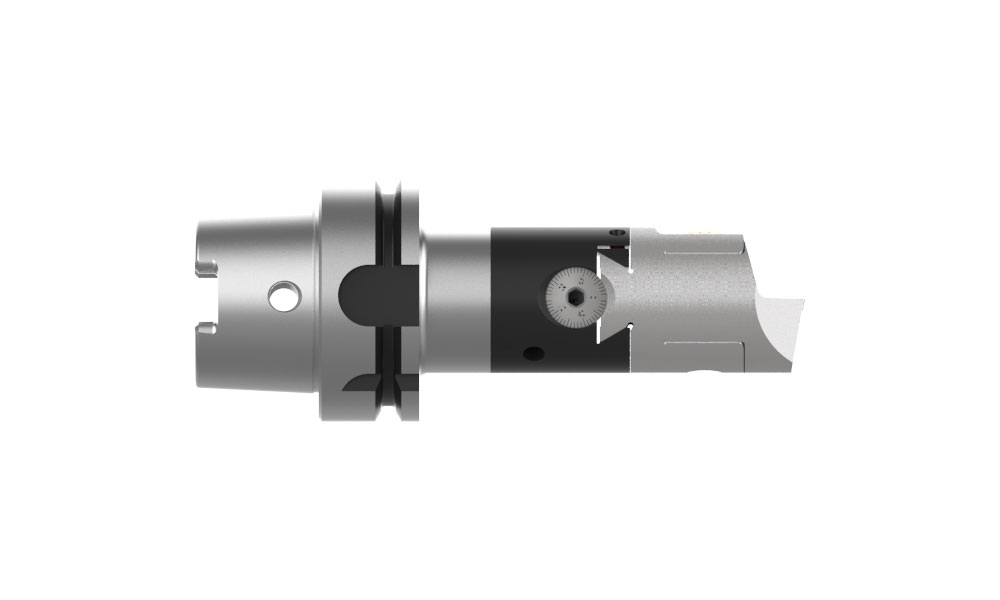

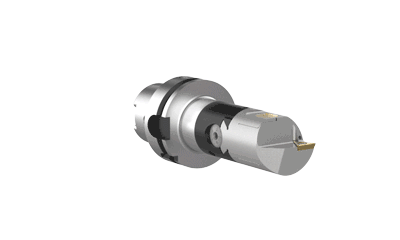

Cri-Bore    360 Icon
Das modulare System Cri-Bore eignet sich hervorragend zur Fertigbearbeitung. Es kann größere Durchmesser-Längen-Verhältnisse und höhere Vorschübe erreichen, da der Körperdurchmesser maximiert und der erforderliche Versatz reduziert wird.
Vorteile
  • Großer Durchmesser der Montagefläche für maximale Steifigkeit und Stabilität
  • Plattensitze für Standard-ISO-Wendeschneidplatten
  • Erhältlich in Zoll oder metrischer Einstellung

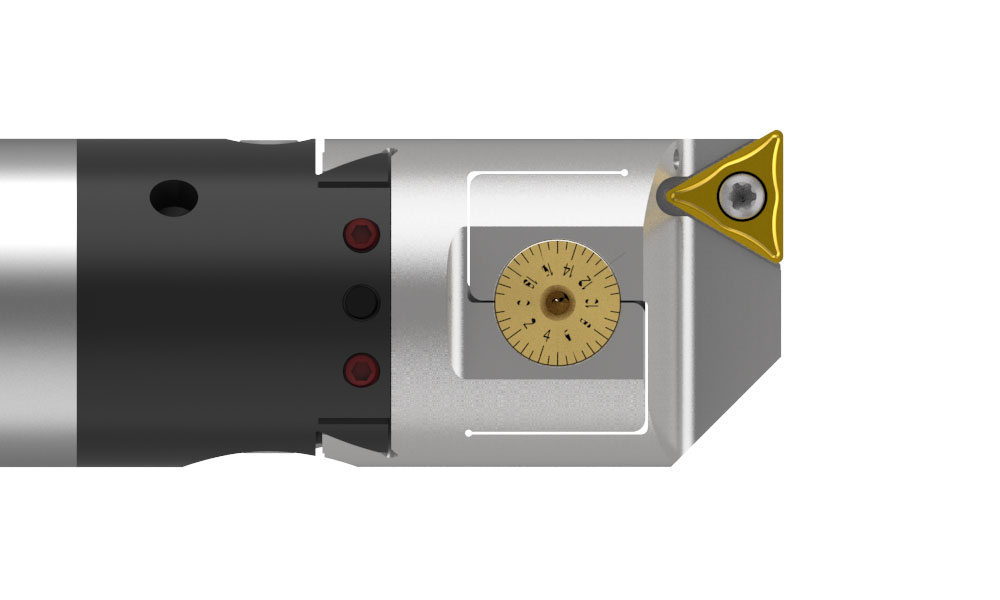

  • Direktes Ablesen der Skala

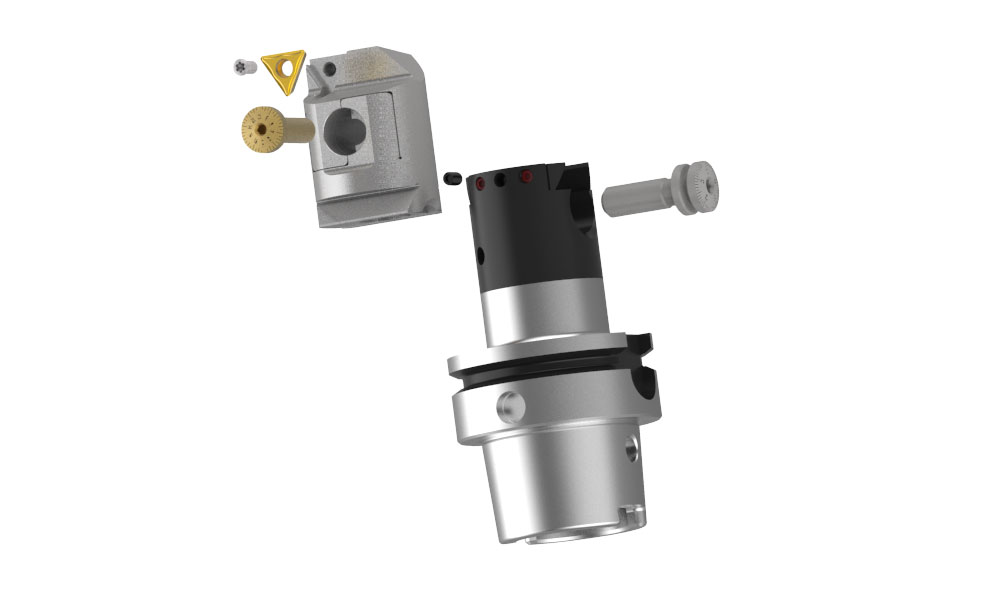

  • Das Feindrehwerkzeug gleitet über eine Schwalbenschwanzverbindung für sichere Klemmung
  • Modulares System, das die Verwendung einer Vielzahl von verschiedenen Schäften ermöglicht
Merkmale
  • Mit innerer Kühlschmierstoffzufuhr
  • Zustellgenauigkeit in Abstufungen von .00005” oder 0,001 mm
  • Passend für Grundaufnahmen: CAT, BT, DIN 69871A, DIN 2080, Morsekegel, NMTB, und HSK Schäfte erhältlich
  •  Maximale Schnittgeschwindigkeiten: 305M/min (1,000 SFM) bei radialem Versatz 0
Empfohlene Materialien
Materialien
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeySymbolhinweis

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Empfohlene Branchen
Branchen
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Symbolhinweis
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technische Informationen

Produktspezifikationen
Produkttyp
Modulares Ausdrehsystem
Durchmesserbereich
1.050" - 7.380" (27.00 mm - 187.00 mm)

Produktbezeichnung
Cri-Bore
Feindrehwerkzeug-Typ
x
CB = Cri-Bore®
CB
Körpertyp
x
Zöllig
1000 = 1,000"
1250 = 1,250"
1500 = 1,500"
2000 = 2,000"
3000 = 3,000"
4000 = 4,000"
Metrisch
025M = 25 mm
032M = 32 mm
038M = 38 mm
050M = 50 mm
076M = 76 mm
101M = 101 mm
2000
-
Einsatztyp
x
TP = TP
CP = CP / CC
TPMA = TP (mit Mikro-Einstellung)
CPMA = CP / CC (mit Mikro-Einstellung)
TP
Feinbohrsysteme
