Structural Steel GEN3SYS® XT
A combination of a unique holder and insert designed specifically for the machines, material and environment commonly found in the Structural Steel Industry. Enhancements to both the insert and holder provide the superior chip formation, life, and toughness required for harsh drilling applications. The inserts are stocked in our C2 (K20) carbide grade with AM300® coating for optimal life.
Advantages
  • Specifically designed for the Structural Steel Industry
  • Superior chip formation, life, and toughness required for harsh drilling applications
Features
  • Optimal tool life using our AM300® insert coating
  • Inserts are stocked in common structural steel hole sizes
  • Available in 3xD, 5xD, and 7xD lengths
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference

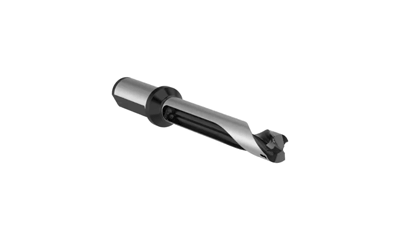

Structural Steel XT: rotate
Structural Steel XT: rotate

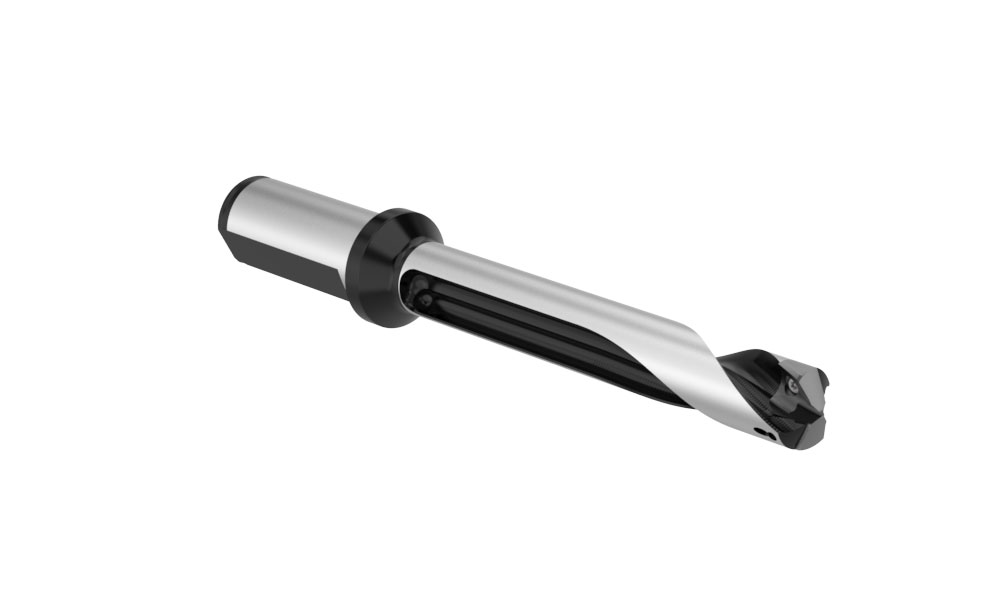

Structural Steel XT Angle

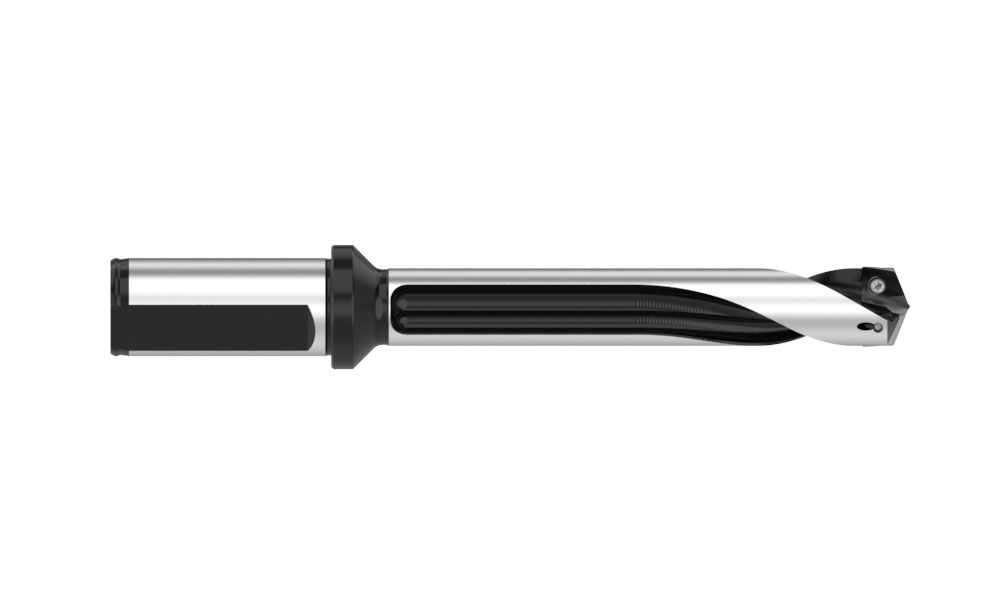

Structural Steel XT Side 1

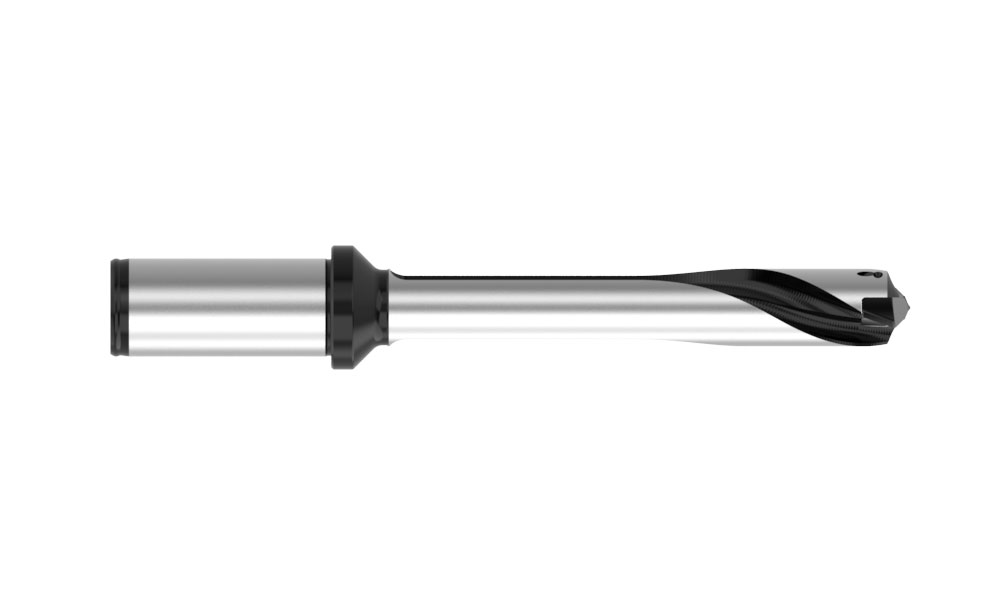

Structural Steel XT Side 2

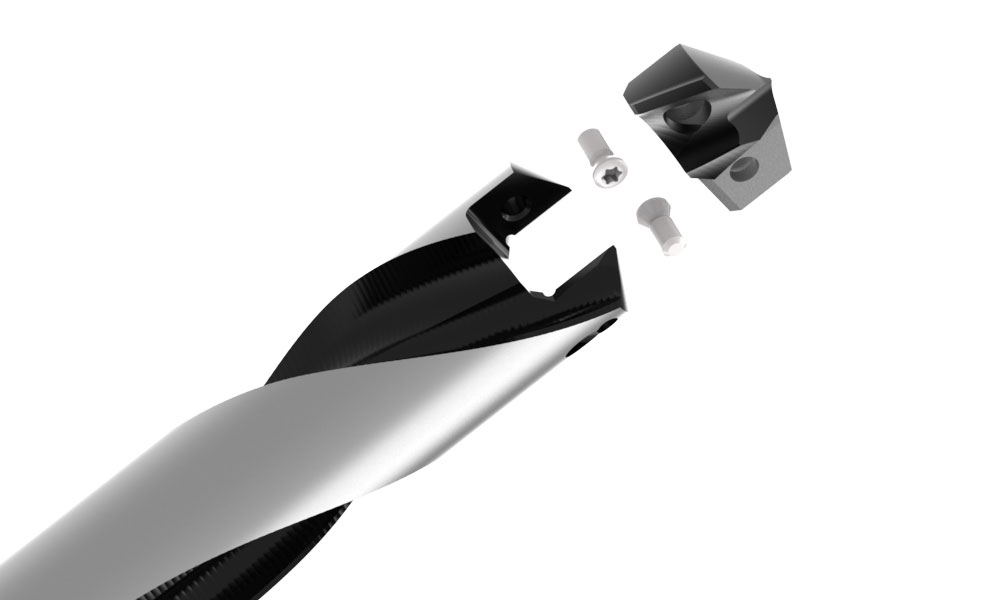

Structural Steel XT Explosion

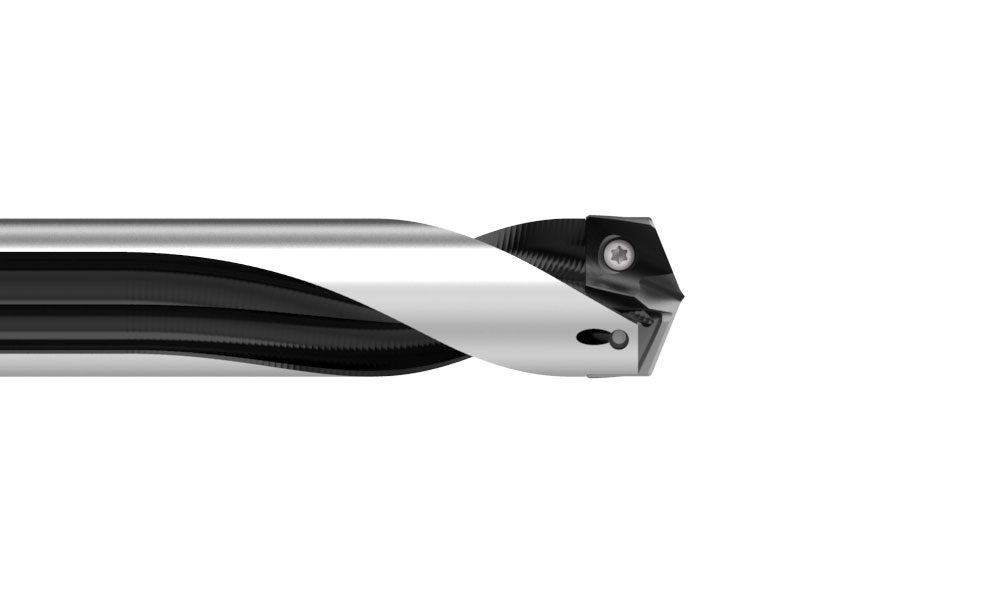

Structural Steel XT Close
Technical Information

Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.4724" - 1.3780" (12.00mm - 35.00mm)
Coating
AM300®
Insert Material
C2 (K20) carbide
Holder
Standard and Oversized
Flute Options
Straight
Shank Options
Flange (with flat)
Drill Depth
3xD, 5xD, 7xD
Coolant
Through Coolant

Product Nomenclature
GEN3SYS XT Holders
Holder
x
ST = Structural steel holder
ST
Length
x
03 = 3x Diameter
05 = 5x Diameter
07 = 7x Diameter
03
Series
x
12 = 12 series
14 = 14 series
15 = 15 series
16 = 16 series
17 = 17 series
18 = 18 series
20 = 20 series
22 = 22 series
24 = 24 series
26 = 26 series
29 = 29 series
32 = 32 series
12
Body Diameter
x
0 = Standard
5 = Oversized
0
-
Shank Diameter
x
Imperial (in):
063 = 5/8"
075 = 3/4"
100 = 1"
125 = 1-1/4"
150 = 1-1/2"
Metric (mm):
16 = 16mm
20 = 20mm
25 = 25mm
32 = 32mm
40 = 40mm
20
Shank Style
x
F = Flanged with flat
FM = Flanged metric with flat
FM
GEN3SYS XT Inserts
XT Drill Insert
x
7 = XT insert
7
Insert Material
x
C2 = C2 (K20) Carbide
C2
Series
x
12 = 12 series
14 = 14 series
15 = 15 series
16 = 16 series
17 = 17 series
18 = 18 series
20 = 20 series
22 = 22 series
24 = 24 series
26 = 26 series
29 = 29 series
32 = 32 series
14
Coating
x
P = AM300®
P
-
Diameter
x
0102 = Inch
18 = Metric
0018
Geometry
x
ST = Structural steel
ST
Structural Steel
Drilling Solutions

Available Online Only

Recommended Cutting Data
